M.2

SV25V-M280 CoreVolt 2

M.2

SV25V-M280 CoreVolt 2

Low-Density Parity-Check (LDPC) Code
Bad Block Management
Global Wear Leveling
Flash Translation Layer: Page Mapping
TRIM
DataDefender™ Plus
ATA Secure Erase
SATA Power Management
Device Sleep
Hyper Cache Technology
Over-provisioning
DataRAID™
SMART Read Refresh™
S.M.A.R.T. Fuction

Real-Time Voltage Stablization. Nonstop Operation – Explore the SV25V-M280

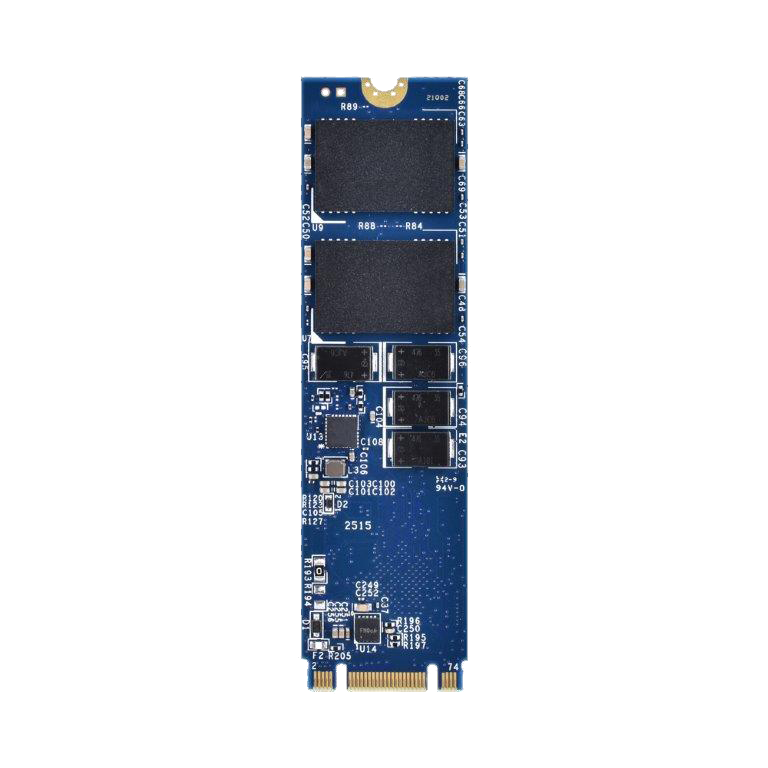

Apacer’s SV25V-M280 is engineered for compact embedded platforms and industrial systems that demand consistent performance, reliability, and data integrity. Built with SATA Revision 3.2 compliance and reinforced by advanced NAND flash management, the SV25V-M280 delivers stable throughput, long service life, and comprehensive protection in space-constrained designs.

What sets SV25V-25 apart is Apacer’s exclusive CoreVolt 2 technology—an intelligent power protection mechanism that detects and reacts to voltage instability in real time. When voltage fluctuations are detected, the SSD automatically engages backup power supplied by tantalum polymer capacitors to stabilize the voltage, ensuring uninterrupted operation.

Empower your embedded designs with Apacer SV25V-M280 – a compact SATA III SSD built for secure, stable, and efficient operation

CoreVolt 2 Technology: Real-time SSD power stabilization for data and device protection.
DataDefender™ Plus: Multi-layer power-loss protection mechanism that safeguards in-flight data through coordinated hardware, firmware, and software support.
Robust Security: Integrates AES encryption and End-to-End Data Protection to ensure maximum data confidentiality and integrity.
Thermal Management: Built-in thermal sensor enables active temperature monitoring for sustained performance.

Advanced NAND Flash Management for Longevity & Performance

LDPC ECC (Low-Density Parity-Check Code): Strengthens error correction capabilities to extend SSD lifespan.
Flash Bad Block Management: Detects and isolates bad NAND blocks to maintain drive integrity.
Page Mapping & Over-Provisioning: Enhances write performance and sustains long-term endurance.
Comprehensive Data & Power Protection: Includes TRIM, Hyper Cache Technology, DataRAID™, SMART Read Refresh, NVMe Secure Erase, and multiple power-saving modes.

Purpose-built for embedded computing, industrial control, transportation electronics, and edge devices, Apacer SV25V-M280 offers a comprehensive storage solution engineered for reliability, security, and operational efficiency.

Spec

Model

SV25V-M280 CoreVolt 2
Interface

SATA 3.2 (6Gb/s)
Connector

75-pin SATA-based M.2 module pinout
Form Factor

M.2 2280
NAND Flash Type

3D TLC
Capacity

120GB~1920GB
External DRAM

No
Sequential Read Performance (MB/sec)

Up to 555
Sequential Write Performance (MB/sec)

Up to 495
ECC Engine

Low-Density Parity-Check (LDPC) Code
IOPS (4K Random Write)

67K
Standard Operating Temperature (°C )

0 ~ 70
Extended Operating Temperature(°C )

-40 ~ 85
Storage Temperature(°C )

-55 ~ 100
Thermal Sensor

Yes
Shock

Operating: Acceleration, 50(G)/11(ms)/half sine
(compliant with MIL-STD-202G)
Non-operating: Acceleration, 1500(G)/0.5(ms)/half sine
(compliant with MIL-STD-883K)
Vibration

Operating: 7.69 GRMS, 20~2000 Hz/random
(compliant with MIL-STD-810G)
Non-operating: 4.02 GRMS, 15~2000 Hz/random
(compliant with MIL-STD-810G)
Operating Voltage

Max voltage: 3.42V/Min voltage: 3.22V
Power Consumption

Active mode: 445 mA / Idle mode: 80 mA
Dimension (L x W x H )

22.00 x 80.00 x 3.88 (mm)
MTBF (hours)

>3,000,000
