M.2

PV25V-M280 CoreVolt 2

M.2

PV25V-M280 CoreVolt 2

CoreVolt 2 Technology
Low-Density Parity-Check (LDPC) Code
Bad Block Management
Global Wear Leveling
Flash Translation Layer: Page Mapping
DataDefender™ Plus
S.M.A.R.T.
TRIM
SMART Read Refresh™
NVMe Secure Erase

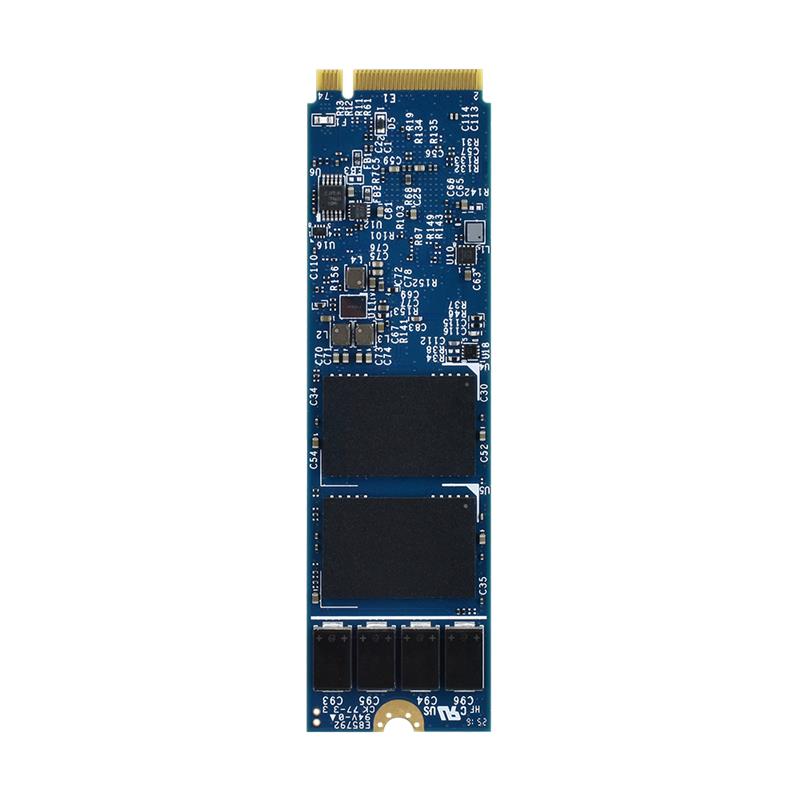

Ultra-Fast Performance. Mission-Critical Stability – Explore the PV25V-M280

Apacer’s PV25V-M280 is built to deliver exceptional speed and industrial-grade reliability for next-generation embedded and high-performance systems. Designed in full compliance with PCIe Gen4 x4 and NVMe 2.0 specifications, this M.2 2280 SSD provides ultra-low latency, high throughput, and efficient power management, ensuring smooth operation even in demanding workloads.

What sets SV25V-25 apart is Apacer’s exclusive CoreVolt 2 technology—an intelligent power protection mechanism that detects and reacts to voltage instability in real time. When voltage fluctuations are detected, the SSD automatically engages backup power supplied by tantalum polymer capacitors to stabilize the voltage, ensuring uninterrupted operation.

Boost industrial reliability with Apacer PV25V-M280 – a high-performance PCIe Gen4 NVMe SSD designed for power-sensitive environments.

CoreVolt 2 Technology: Real-time SSD power stabilization for data and device protection.
DataDefender™ Plus: Multi-layer power-loss protection that safeguards in-flight data through coordinated hardware, firmware, and software mechanisms.
Robust Security: Supports AES encryption and End-to-End Data Protection to ensure strong data confidentiality and data-path integrity.
Thermal Management: Built-in thermal sensor enables active temperature monitoring to sustain consistent performance and prevent throttling.

Equipped with advanced technologies for enhanced endurance, speed, and operational efficiency.

LDPC ECC (Low-Density Parity-Check Code): Reinforces error correction capability to extend SSD longevity and data reliability.
Flash Bad Block Management: Identifies and isolates bad blocks to maintain drive integrity over its lifetime.
Page Mapping & Optimized Over-Provisioning: Improves sustained write performance and enhances long-term endurance.
Comprehensive Data & Power Optimization: Includes TRIM, Hyper Cache Technology, DataRAID™, SMART Read Refresh™, NVMe Secure Erase, and multiple power-saving modes.

With CoreVolt 2 as its key differentiator—combined with high-speed PCIe architecture, advanced flash management, and industrial-grade protection—Apacer’s PV25V-M280 is purpose-built for edge AI systems, autonomous devices, transportation and other performance-driven embedded applications where stability, speed, and data protection are essential.

Spec

Model

PV250-M280 CoreVolt 2
Interface

PCIe Gen4 x4
Connector

Double-sided: M.2 2280 M key
Form Factor

M.2 2280
NAND Flash Type

3D TLC
Capacity

120GB~1920GB
External DRAM

No
Sequential Read Performance (MB/sec)

Up to 3740
Sequential Write Performance (MB/sec)

Up to 3340
ECC Engine

Low-Density Parity-Check (LDPC) Code
IOPS (4K Random Write)

669K
Standard Operating Temperature (°C )

0 ~ 70
Extended Operating Temperature(°C )

-40 ~ 85
Storage Temperature(°C )

-55 ~ 100
Thermal Sensor

Yes
Shock

Operating: Acceleration, 50(G)/11(ms)/half sine
(compliant with MIL-STD-202G)
Non-operating: Acceleration, 1500(G)/0.5(ms)/half sine
(compliant with MIL-STD-883K)
Vibration

Operating: 7.69 GRMS, 20~2000 Hz/random
(compliant with MIL-STD-810G)
Non-operating: 4.02 GRMS, 15~2000 Hz/random
(compliant with MIL-STD-810G)
Operating Voltage

Max voltage: 3.39V/Min voltage: 3.25V
Power Consumption

Active mode: 1290 mA / Idle mode: 250mA
Dimension (L x W x H )

22.00 x 80.00 x 4.08 mm (max.)
MTBF (hours)

>3,000,000
