M.2

PV25C-M280 CoreSnapshot2

M.2

PV25C-M280 CoreSnapshot2

  • Low-Density Parity-Check (LDPC) Code
  • Global Wear Leveling
  • Flash bad-block management
  • Flash Translation Layer: Page Mapping
  • DataDefender™
  • CoreSnapshot 2
  • S.M.A.R.T.
  • TRIM
  • Hyper Cache Technology
  • Over-provisioning
  • SMART Read Refresh™
  • NVMe Secure Erase

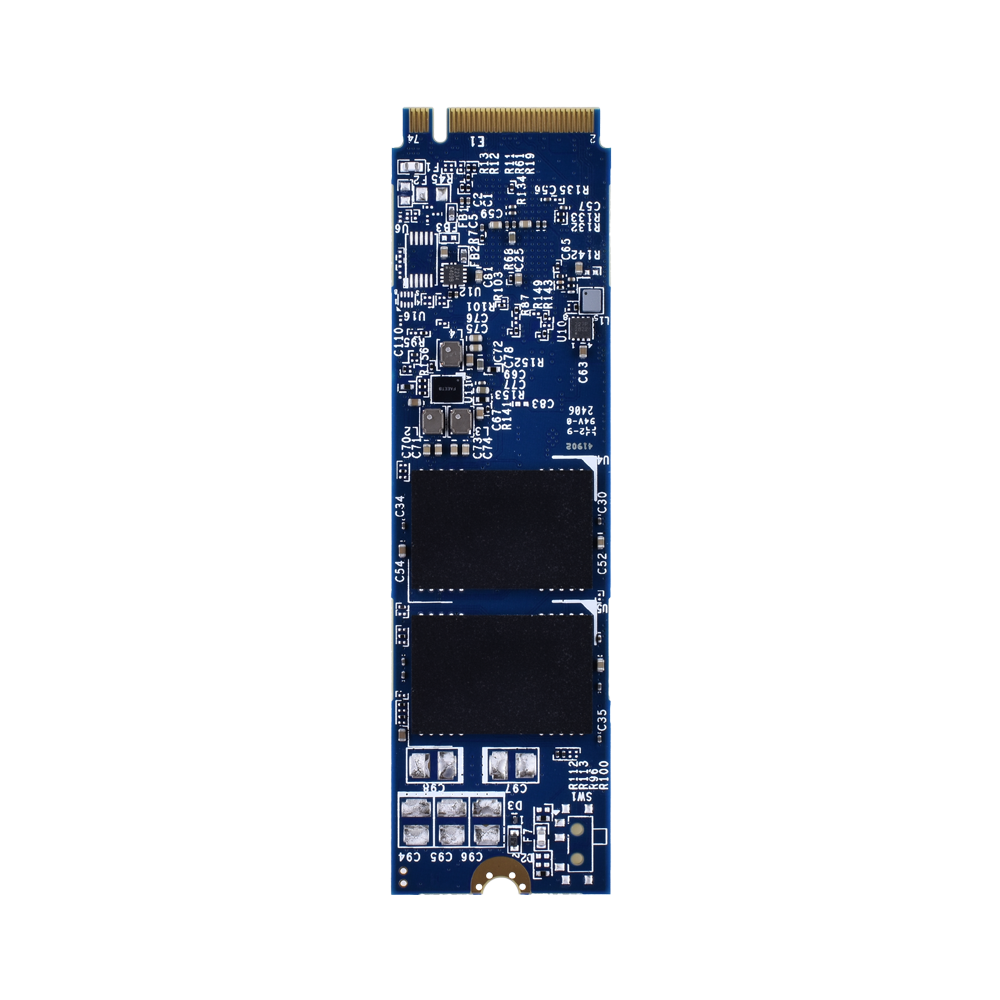

Apacer's PV25C-M280 is the fastest SSD designed with M.2 2280 mechanical dimensions, fully compliant with the PCIe Gen4 x4 interface and NVMe 2.0 specifications. This allows it to operate in power management modes, significantly reducing power consumption. Equipped with a powerful PCIe controller supporting on-the-module ECC and an efficient wear-leveling scheme, PV25C-M280 delivers exceptionally low latency and outstanding performance in data transfer. With its compact size and high-speed storage, PV25C-M280 is the ideal choice for larger, faster hosts deployed across a wide range of applications that demand exceptional performance.



Utilizing 3D NAND technology for higher capacities of up to 960GB and offering greater power efficiency than 2D NAND, PV25C-M280 is equipped with an LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and enhance data reliability.



Additionally, it features a built-in thermal sensor to monitor the SSD temperature via S.M.A.R.T commands and is configured with thermal throttling to dynamically adjust frequency scaling, ensuring sustained performance while preventing overheating. The inclusion of CoreGlacier technology helps maintain low temperatures while delivering high-speed performance. Furthermore, to enhance product reliability and resistance to thermal and mechanical shocks, PV25C-M280 incorporates Sidefill technology, enabling normal operation in high-vibration and extreme environmental conditions. For highly-intensive applications, End-to-End Data Protection ensures data integrity at multiple points, enabling reliable data transfers.

From a security standpoint, Advanced Encryption Standard (AES) provides robust data security, offering users peace of mind by safeguarding their data against unauthorized access at all times.



On top of that, PV25C-M280 features CoreSnapshot 2 technology coupled with Double-barreled Solution or CoreRescue OOB Module (optional) to optimize the stability of system operation and management. CoreSnapshot 2 ensures that PV25C-M280 can function normally and return to normal operation in the event of unexpected system failures to reduce downtime and maximum output, while the DBS Cloud Edition or OOB Module extends the practical operating lifespan and integrates seamlessly with alternated RDM.

Spec
  • Model
    PV25C-M280
  • Interface
    PCIe Gen4 x4
  • Connector
    Double-side: M.2 2280-D5-M key
    3-pin CoreSnapshot 2 connector
  • Form Factor
    M.2 2280
  • NAND Flash Type
    3D TLC
  • Capacity
    120GB~960GB
  • External DRAM
    No
  • Sequential Read Performance (MB/sec)
    Up to 3,740
  • Sequential Write Performance (MB/sec)
    Up to 3,330
  • ECC Engine
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)
    667K
  • Standard Operating Temperature (°C )
    0 ~ + 70
  • Extended Operating Temperature(°C )
    -40°C to 85°C
  • Storage Temperature(°C )
    -55°C to 100°C
  • Thermal Sensor
    Yes
  • Shock
    Operation: Acceleration, 50(G)/11(ms)/half sine
    (compliant with MIL-STD-202G)
    Acceleration, 1500(G)/0.5(ms)/half sine
    (compliant with MIL-STD-883K)
  • Vibration
    Operation:7.69(Grms), 20~2000(Hz)/random
    (compliant with MIL-STD-810G)
    Non-operation:4.02(Grms), 15~2000(Hz)/random
    (compliant with MIL-STD-810G)
  • Operating Voltage
    3.3 V ± 5%
  • Power Consumption
    Active mode: 1,225 mA / Idle mode:235 mA
  • Dimension (L x W x H )
    Double-sided:22.00 x 80.00 x 4.73(max.),(unit: mm)
  • MTBF (hours)
    >3,000,000
