CoreEnergy Series

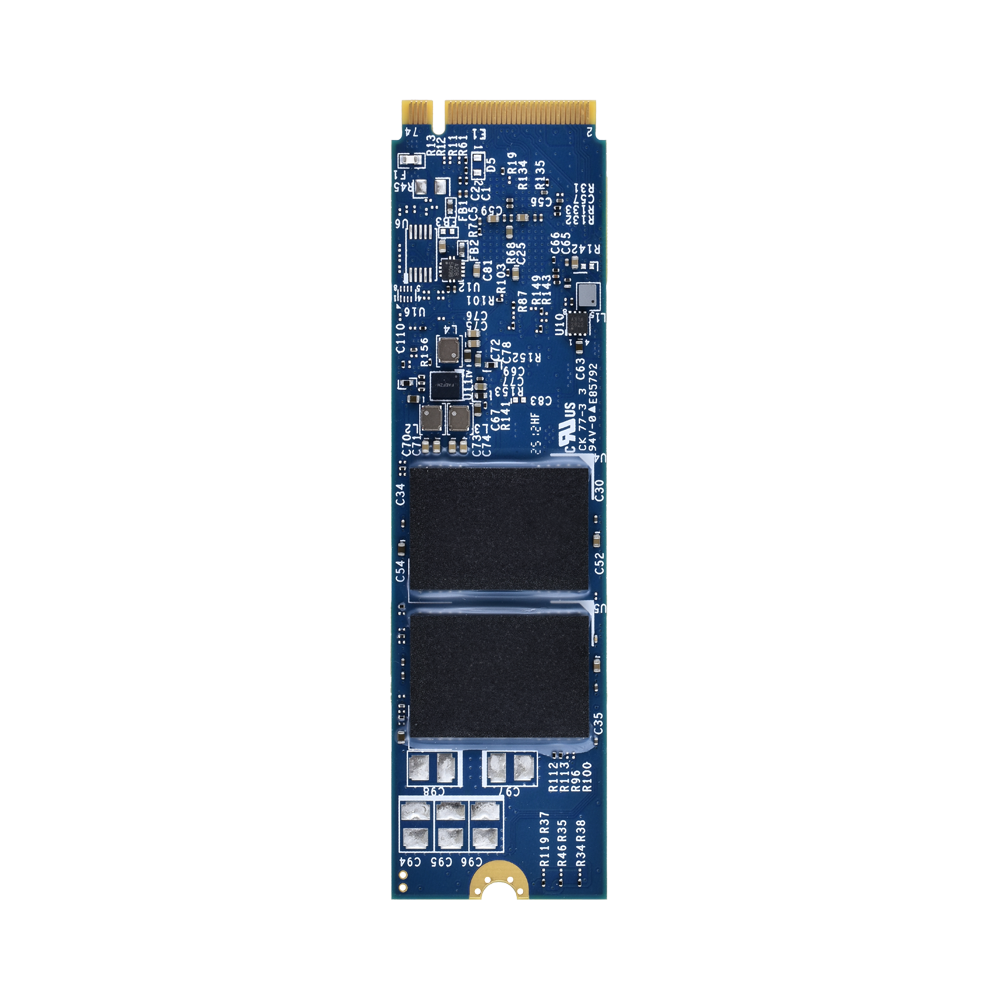

PV250-M280

CoreEnergy Series

PV250-M280

CoreEnergy Support
Low-Density Parity-Check (LDPC) Code
Global Wear-leveling
Flash Bad-block Management
End-to-End Data Protection
Flash Translation Layer: Page Mapping
DataDefender™
S.M.A.R.T.
TRIM
Hyper Cache Technology
Over-provisioning
SMART Read Refresh
NVMe Secure Erase

Application-Aware SSD Power Management Enhances Energy Efficiency —

Explore More with PV250-M280

Facing growing demand and pressure on energy saving of your storage devices? Apacer’s PV250-M280 supports CoreEnergy Technology, tailored to satisfy diverse operational needs by adjusting storage performance while significantly reducing power consumption, and built with full compliance to PCIe Gen4 x4 and NVMe 2.0 standards and deisgned with compact M.2 2280 form factor. This solution makes good balance between storage performance and power consumption.

By adopting PV250-M280 equipped with CoreEnergy Technology, users can easily toggle between multiple energy settings via intuitive software interface or hardware DIP switch. When default intelligent settings do not suffice, users can fine-tune configurations via the advanced energy settings for further adjustments, making it an ideal choice for embedded systems, fanless industrial PCs (IPCs), and portable battery-powered systems.

With Apacer’s CoreEnergy storage solution, you'll experience:

Energy Saving: Save up to 67% power consumption by energy mode adjustment.
Overheat Prevention: Efficient power management prevents SSD from overheating, enhancing stability and longevity.
Flexible Adjustments: Multiple intelligent and advanced settings enable to adjust SSD performance and power consumption via intuitive software interface or hardware DIP switch.

Equipped with advanced technologies support:

Low-Density Parity-Check (LDPC) Code: Enhance SSD endurance and data reliability.
Global Wear-leveling Technology: Ensure having lower erase counts to extend SSD lifespan.
Flash Bad-block Management: Manage cell blocks that fail over time.
End-to-End Data Protection: Protect sensitive data with comprehensive security.
Others: Page Mapping, DataDefender, S.M.A.R.T., TRIM, Hyper Cache Technology, Over-provisioning, SMART Read Refresh, and NVMe Secure Erase.

PV250-M280 offers optimal energy-efficient storage solutions, allowing users to do storage performance and power consumption adjustments for meeting varying-application demands across industries, such as healthcare, factory automation, and server & networking. In addition, efficient power management enhances stability and longevity of your storage devices, and achieves sustainability goals.

Spec

Model

PV250-M280
Interface

PCIe Gen4 x4
Connector

Double-sided: M.2 2280-M key
Form Factor

M.2 2280
NAND Flash Type

3D TLC
Capacity

240GB~3840GB
External DRAM

No
Sequential Read Performance (MB/sec)

Up to 3695
Sequential Write Performance (MB/sec)

Up to 3250
ECC Engine

Low-Density Parity-Check (LDPC) Code
IOPS (4K Random Write)

565K
Standard Operating Temperature (°C )

240GB~3840GB: 0°C ~ 70°C
Extended Operating Temperature(°C )

240GB~1920GB: -40°C ~ 85°C
Storage Temperature(°C )

-55°C ~ 100°C
Housing

No
Thermal Sensor

Yes
Shock

Operation: Acceleration, 50(G)/11(ms)/half sine
(Compliant with MIL-STD-202G)
Non-operation: Acceleration, 1500(G)/0.5(ms)/half sine
(Compliant with MIL-STD-883K)
Vibration

Operation: 7.69 GRMS, 20~2000 Hz/random
(Compliant with MIL-STD-810G)
Non-operation: 4.02 GRMS, 15~2000 Hz/random
(Compliant with MIL-STD-810G)
Operating Voltage

3.3V ±5%
Power Consumption

Active Mode: 1670 mA / Idle Mode: 250mA
Dimension (L x W x H )

22.00 x 80.00 x 5.33(max.)
MTBF (hours)

>3,000,000
