Compatible With Raspberry Pi Platforms

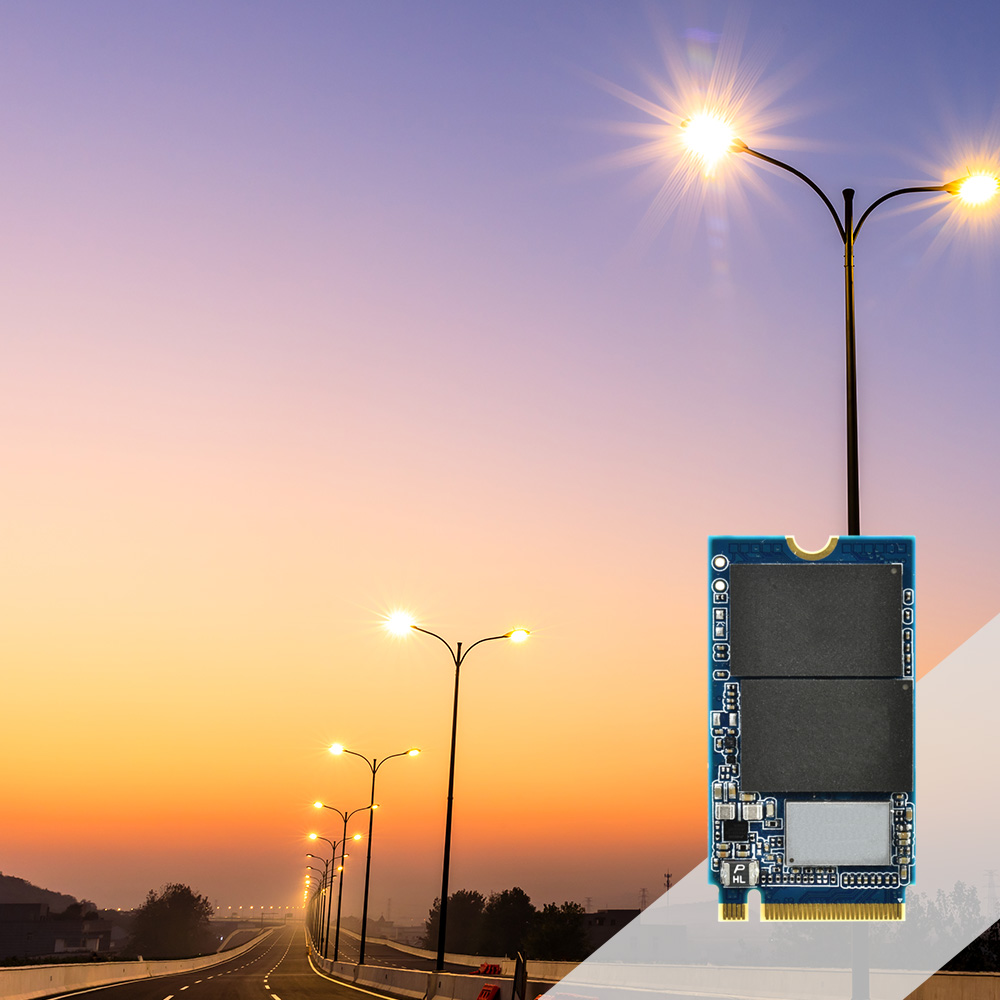

PT15R-M242

Compatible With Raspberry Pi Platforms

PT15R-M242

  • Adopts advanced LDPC ECC engine with 3D NAND flash memory to improve reliability
  • Global Wear-leveling
  • Flash Bad-block Management
  • Flash Translation Layer: Page Mapping
  • Supports SSDWidget S.M.A.R.T function
  • Power Failure Management
  • End-to-End Data Protection
  • TRIM Support
  • SMART Read Refresh™
  • NVMe Secure Erase

Apacer Storage Devices

Compatible with Raspberry Pi Platforms



Apacer PT15R-M242 provides ideal storage solution for your Raspberry Pi 5 projects, delivering low power consumption and cost-effective storage solutions with advanced technologies, fully compliant with the PCIe Gen3 x4 interface and NVMe 1.3 specifications. Its compact and high-speed storage make it the ideal choice for larger and faster hosts in a wide range of applications requiring superior performance.



With Apacer’s storage solutions, you’ll experience:

  • 64GB to 512GB Capability: Industrial-grade SSDs with diverse capacities offer a cost-effective solution.
  • Power Efficiency: 30-40% power savings for longer device operation.
  • Simplified Quality Control: Apacer ensures strict quality testing, top-notch reliability, and fast RMA service.
  • QVL Certified: Compatible with Raspberry Pi platforms for faster validation and improved efficiency.
  • Tailored Solutions: Customize with Apacer advanced technologies for safety, stability, and convenience.



Equipped with advanced technologies support:

  • LDPC (Low-Density Parity Check) ECC Engine: Enhance SSD endurance and data reliability.
  • Global Wear-leveling Technology: Ensure having lower erase counts to extend SSD lifespan.
  • Flash Bad-block Management: Manage cell blocks that fail over time.
  • End-to-End Data Protection: Protect sensitive data with comprehensive security.
  • Others: Page Mapping, SSDWidget S.M.A.R.T Function, Power Failure Management, TRIM, NVMe Secure Erase, Hyper Cache Technology, DataRAID, and power-saving modes.



With exceptional performance and enhanced reliability, PT15R-M242 is the ideal storage or cache solution for a variety of applications, such as education, retail, and IoT markets.

Spec
  • Model
    PT15R-M242
  • Interface
    PCIe Gen3 x4
  • Connector
    Double-sided M.2 2242-D2-M
  • Form Factor
    M.2 2242
  • NAND Flash Type
    3D TLC
  • Capacity
    64GB ~ 512GB
  • External DRAM
    No
  • Sequential Read Performance (MB/sec)
    Up to 2445
  • Sequential Write Performance (MB/sec)
    Up to 1750
  • ECC Engine
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)
    235K/399K
  • Standard Operating Temperature (°C )
    0 ~ + 70
  • Storage Temperature(°C )
    -40~ + 85
  • Thermal Sensor
    Yes
  • Shock
    Non-operating: 1,500(G), half-sine wave
  • Vibration
    Non-operation:
    Frequency/Displacement: 20Hz~80Hz/1.52mm
    Frequency/Acceleration: 80Hz~2000Hz/20G
  • Operating Voltage
    3.3V ±5%
  • Power Consumption
    Active mode: 905 mA / Idle mode: 180mA
  • Dimension (L x W x H )
    22.00 x 42.00 x 3.58 (max) (mm)
  • MTBF (hours)
    >2,000,000
