M.2 PCIe SSD

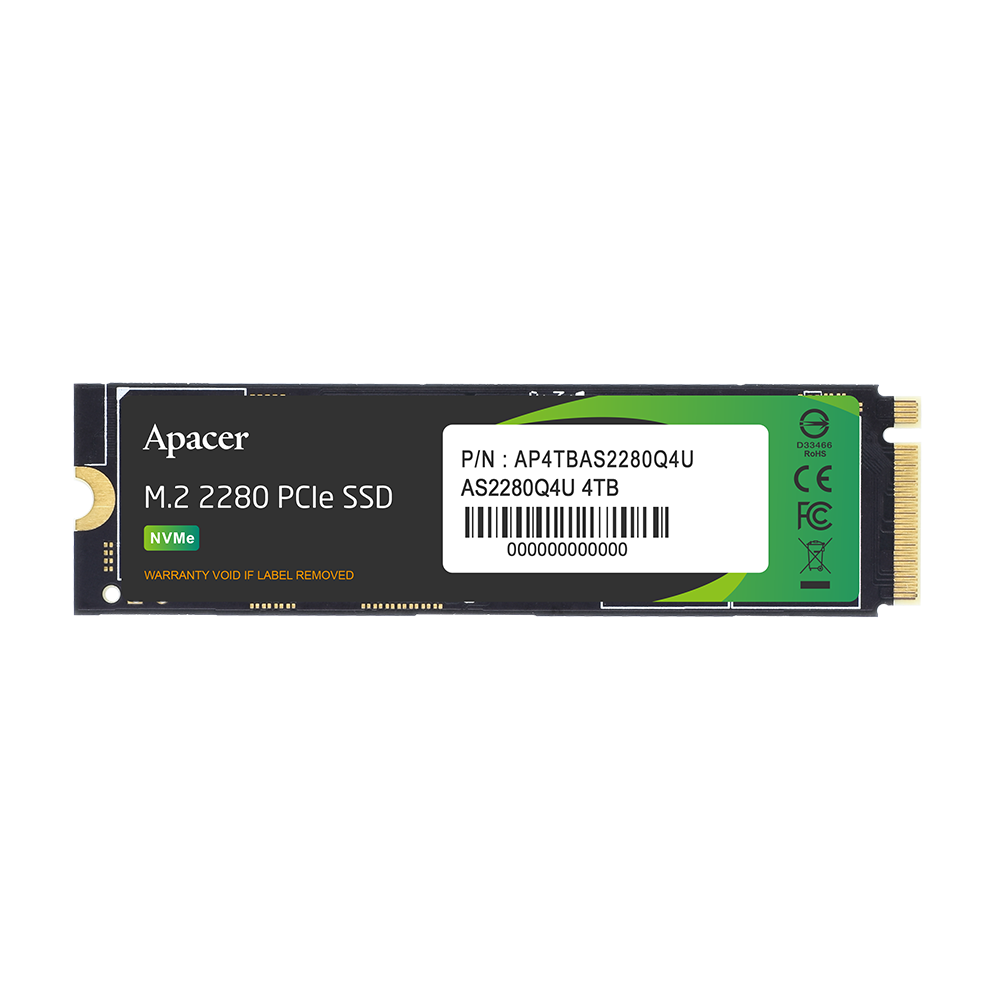

AS2280Q4U M.2 PCIe Gen4 x4

M.2 PCIe SSD

AS2280Q4U M.2 PCIe Gen4 x4

  • PCIe Gen4 x4 Interface
  • Extreme Fast Read/ Write Speeds of 7,400 / 7,000 MB/s
  • Meets the Capacity Expansion Needs of PS5 Game Consoles
  • Dedicated Heat Sink for Better Cooling
  • Ultra-large 2TB Storage Space
  • 5-year Warranty for Maximum Protection

Loads a World in a Moment

AS2280Q4U’s blazing-fast PCIe Gen4 x4 interface is fully compliant with the NVMe 1.4 standard. With sequential read/write performance of up to 7,400/7,000 MB/s, it is twice as fast as a Gen3 SSD, and 15 times faster than a SATA SSD, providing unparalleled performance for gamers and video creators.

Precisely Matches PS5 Specs

Built with 3D NAND Flash, AS2280Q4U offers capacity options of up to 2TB and performs higher efficiency and reliability. It meets the M.2 SSD requirements for PS5 in all respects, making it a simple solution to gain extra storage space on PS5.

Subtle Design Aesthetic

There's an aesthetic similarity that makes it the perfect partner for the PS5 in looks. It also features a heat dissipation portal that's been crafted to suggest the dimensions of the PS5's DualSense controller.

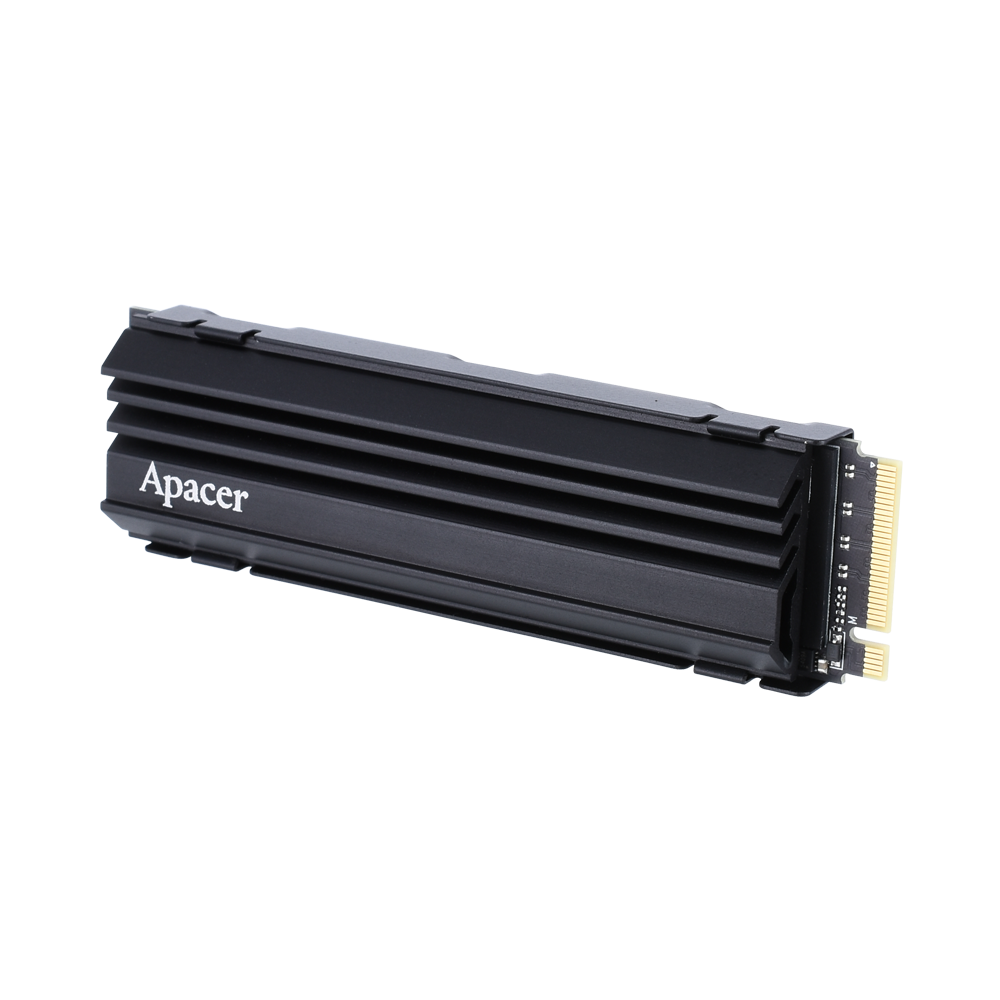

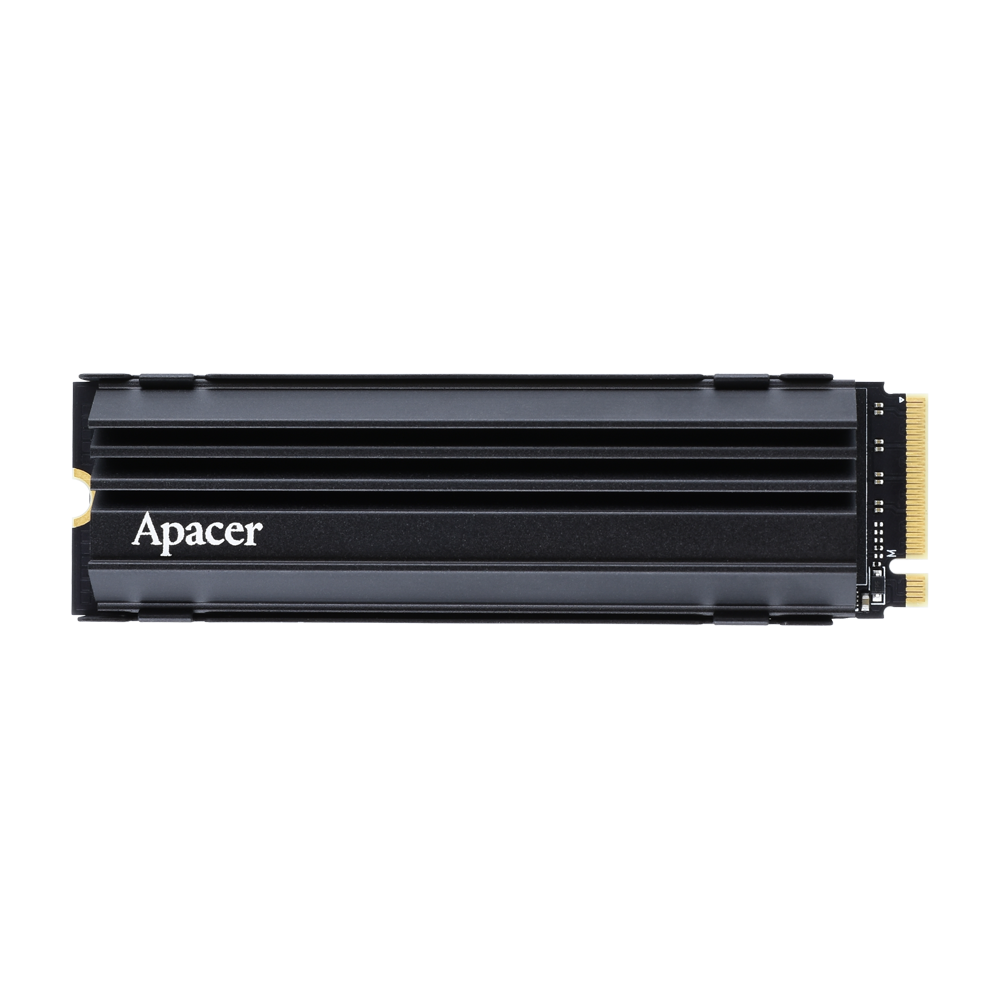

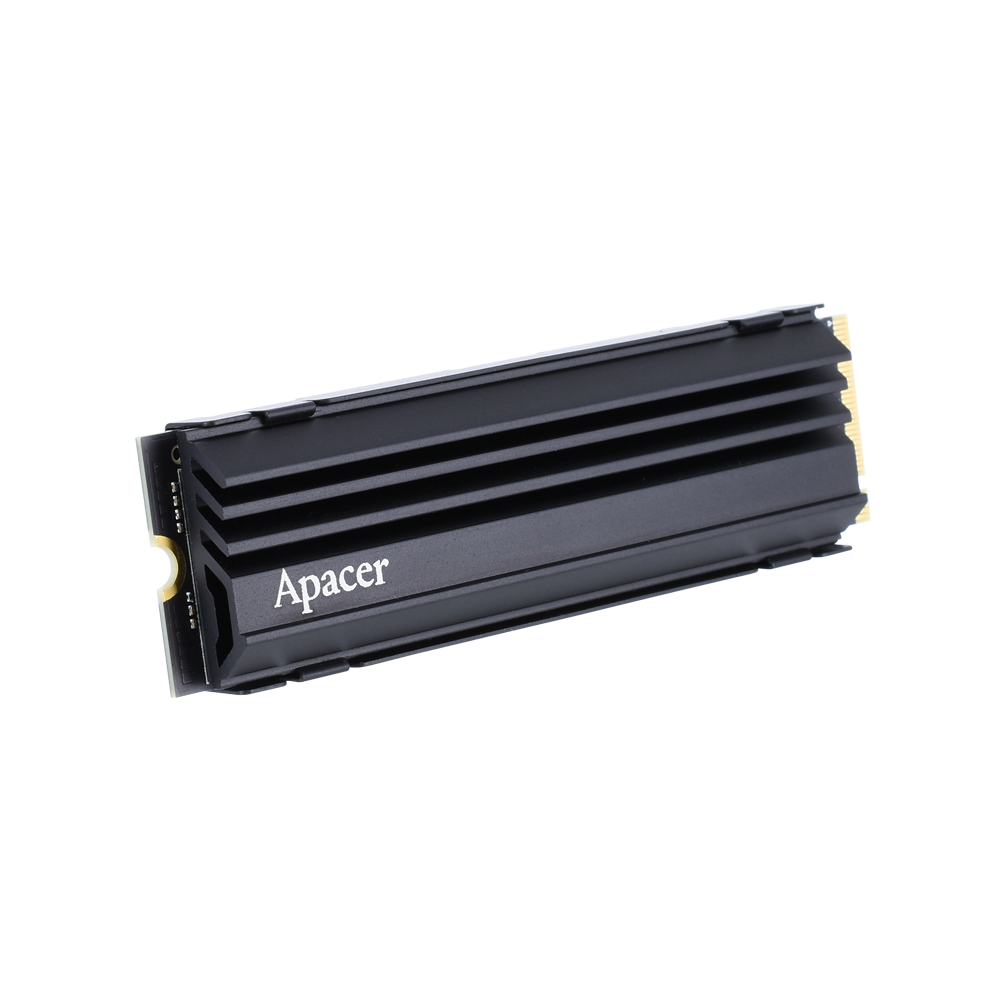

Dedicated Metal Heat Sink for Better Cooling

AS2280Q4U SSD provides a dedicated heat spreader with special diversion cutting design to effectively reduce the PCIe 4.0 SSD temperature by up to 35%. So gamers don't need to worry about performance reductions caused by higher temperatures.

Data Protection Mechanism Delivers Consistent Performance

To provide users with a flawless high-speed experience, the AS2280Q4U have a number of built-in protection technologies. SLC caching is a technology designed to effectively ensure that data is stored correctly and stably. With the built-in advanced wear leveling technology and automatic error correction functions, it can not only extend the service life of the SSD and improve operational stability, but also ensure that the product maintains consistent performance after long-term use.

5-Year Global Warranty

The AS2280Q4U SSD comes with a five-year global warranty, allowing users to enjoy games with peace of mind.

Spec
  • Product Name
    AS2280Q4U
  • Capacity
    512GB~2TB
  • Interface
    PCIe Gen4 x4
  • NAND Flash
    3D NAND
  • Sequential Read Performance
    Up to 7,400 MB/s
  • Sequential Write Performance
    Up to 7,000 MB/s

    *The performance may vary due to host hardware, software , usage and storage capacity.
  • IOPs (4K Random Write)
    Up to 1,000,000 IOPS
  • Shock
    1,500G/0.5msec
  • MTBF
    1,600,000 hours
  • Standard Operating Temperature
    0°C ~ +70°C
  • Storage Temperature
    -40 ~ +85°C
  • Dimensions
    Single side : (L)80.00 x (W)22.00 x (H)2.25mm
    Double side : (L)80.00 x (W)22.00 x (H)3.5mm
    With heat sink : (L)80mm x (W)22.9mm x (H)10.8mm
    Single side : 7.6g
    Double side : 10.2g
  • Accessory
    Heatsink
    * Free accessory without warranty.
  • Certificate
    CE, FCC, VCCI, BSMI, RoHS
  • Warranty
    5-Year Limited Warranty
    *The SSD is based on the TBW or warranty period.
