Drive

UV110-UFD7

Drive

UV110-UFD7

  • Adopts advanced LDPC ECC engine with 3D NAND flash memory to improve reliability
  • Global Wear Leveling
  • Flash bad-block management
  • 4K Page Mapping
  • Power Failure Management
  • S.M.A.R.T.
  • Hyper Cache Technology
  • Smart Read Refresh™

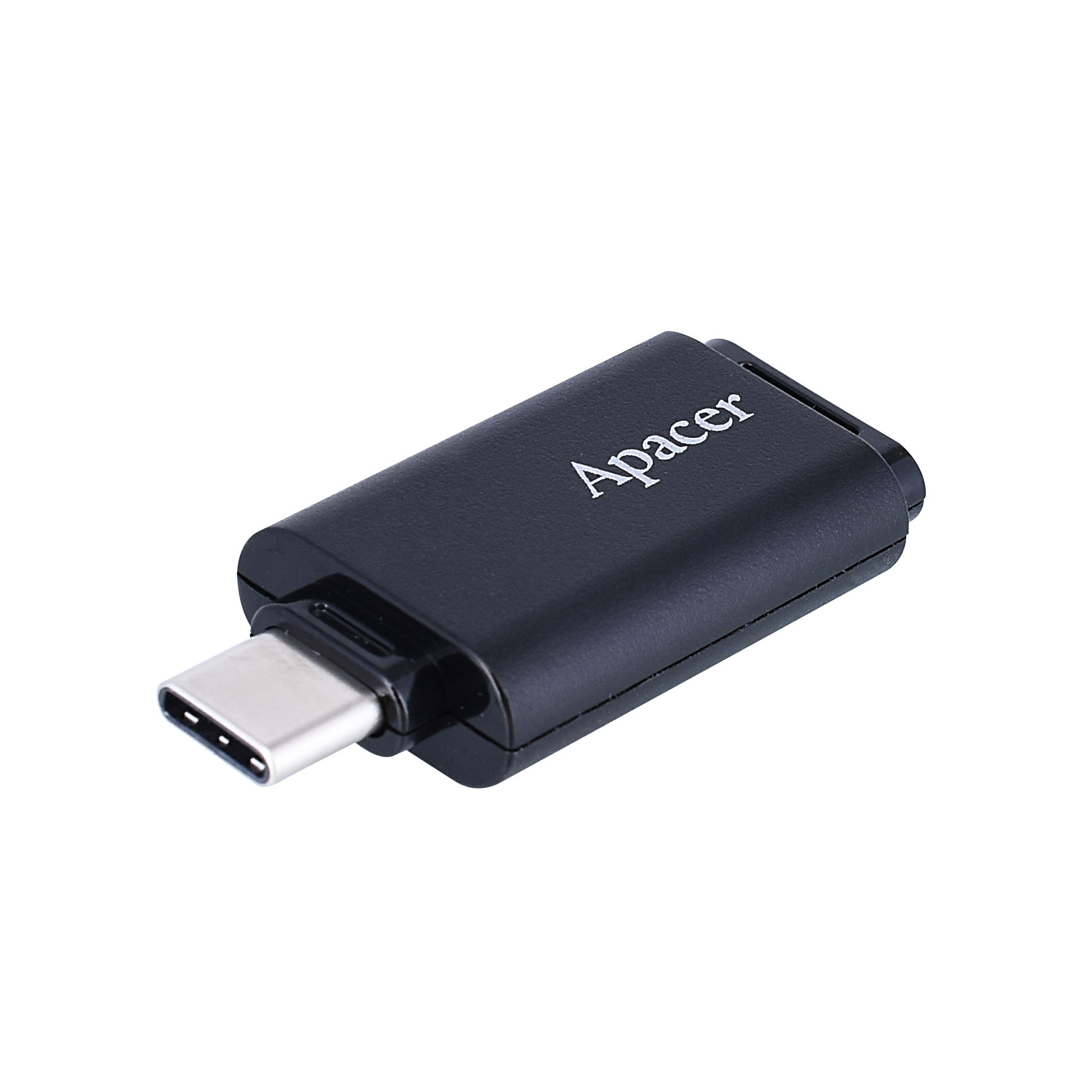

Industrial USB: UV110-UFD7

Apacer UV110-UFD7 is a new USB flash drive with Type-C connector applied for industry. It is compatible with the latest USB specification – USB 3.2 Gen1 Super Speed, with a maximum transfer rate of 5 Gb/s. The connector is backward compatible with USB 2.0 and USB 1.1 interfaces. With compliance with USB 3.2 specification, this USB drive can deliver up to 270 MB/s outstanding performance and operate at minimal power consumption.
Utilizing 3D NAND for higher capacity up to 256GB and providing more power efficiency than 2D NAND, UV110-UFD7 is designed to replace a conventional IDE hard disk drive. The USB is implemented with LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and increase data reliability. In addition, the USB adopts the latest page mapping file translation layer and comes with various implementations including powerful hardware ECC engine, Wear Leveling, flash block management, S.M.A.R.T., power failure management and Smart Read Refresh™.
With compact size, slim and sleek Type-C connector tailored to fit mobile device designs, UV110-UFD7 is well suited for a wide variety of new generation products with USB-C connector. It has also been put through all rigorous tests to prove that it is a perfect match for industrial-grade products.

Spec
  • Model
    UV110-UFD7
  • Interface
    USB 3.2 Gen1
  • Connector
    USB Type-C
  • Form Factor
    USB Flash Drive
  • NAND Flash Type
    3D TLC
  • Capacity
    128GB~256GB
  • Sequential Read Performance (MB/sec)
    Up to 270
  • Sequential Write Performance (MB/sec)
    Up to 190
  • ECC Engine
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)
    1000
  • Standard Operating Temperature ( °C )
    0 ~ + 70
  • Extended Operating Temperature ( °C )
    -40 ~ + 85
  • Storage Temperature ( °C )
    -55 ~ + 100
  • Housing
    Yes
  • H/W Write Protect
    No
  • Shock
    Operating: Acceleration, 50(G)/11(ms)/half sine
    (compliant with MIL-STD-202G)
    Non-operating: Acceleration, 1500(G)/0.5(ms)/half sine
    (compliant with MIL-STD-883K)
  • Vibration
    Operation:7.69 Grms, 20~2000 Hz/random
    (compliant with MIL-STD-810G)
    Non-operation:4.02 Grms, 15~2000 Hz/random
    (compliant with MIL-STD-810G)
  • Operating Voltage
    5.0 V ± 5%
  • Dimension (L x W x H )
    43.00 x 18.90 x 7.90 mm
  • MTBF (hours)
    >3,000,000
  • Featured Technology
    Page Mapping / S.M.A.R.T. / Smart Read Refresh™ / Wide Temperature
  • Recommended Application
    Gaming / Healthcare / Internet of Things / Server & Networking / Transportation
