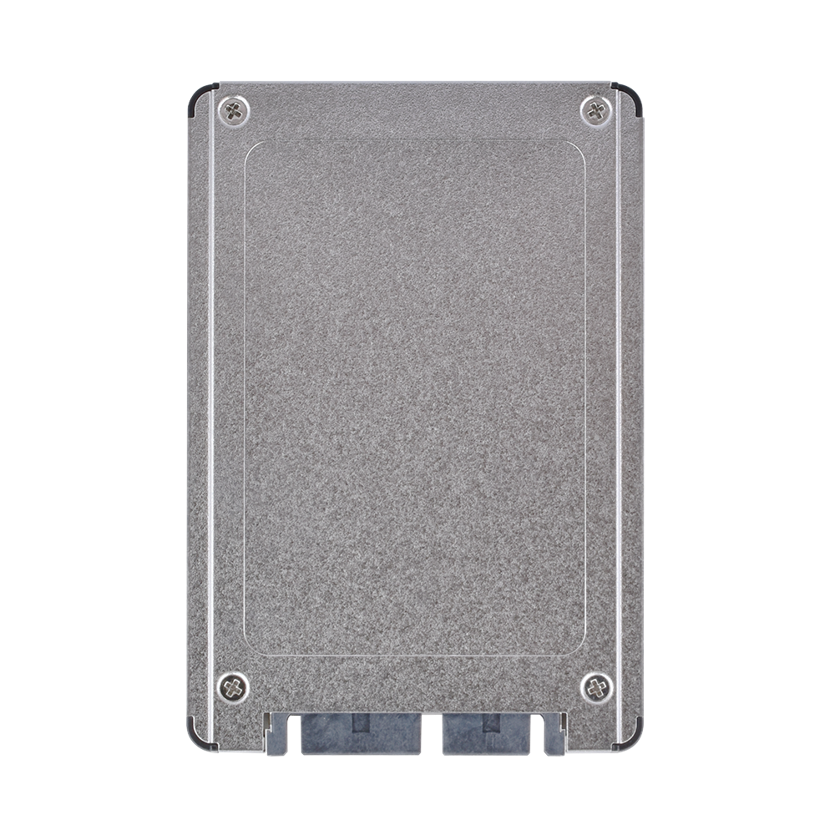

1.8" SSD Drive

SS170-18

1.8" SSD Drive

SS170-18

  • Low-Density Parity-Check (LDPC) Code
  • Global Wear-leveling
  • Flash Bad Block Management
  • Flash Translation Layer: Page Mapping
  • S.M.A.R.T.
  • TRIM
  • ATA Secure Erase
  • Power Failure Management
  • ATA Secure Erase
  • SSDWidget

Apacer’s SS170-18 is a well-balanced solid-state drive (SSD) with a standard form factor and impressive performance. Designed with a SATA 6 Gb/s interface, SS170-18 complies fully with the latest SATA Revision 3.2 specifications and delivers exceptional read/write speeds, making it the ideal companion for demanding industrial or server operations.



SS170-18 is built with a powerful SATA controller that supports on-the-module ECC for error correction as well as efficient wear leveling scheme for extended lifespan. Additionally, SS170-18 is equipped with a built-in thermal sensor (available on the wide-temp model only) to monitor the temperature of the SSD via S.M.A.R.T commands to prevent overheating. Operating under 6 Gb/s interface, SS170-18 is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analysis.



In terms of reliability, SS170-18 features End-to-End Data Protection to ensure data integrity across the entire transfer path, delivering reliable and secure data transmission. It also incorporates a range of advanced technologies, including bad block management, power failure management, ATA secure erase, page mapping, TRIM support, and power-saving modes.

With exceptional performance and enhanced reliability, SS170-18 is the ideal storage or cache solution for a variety of applications ranging from industrial, imaging, computing to enterprise markets.

Spec
  • Model
    SS170-18
  • Interface
    SATA III
  • Connector
    (7+15) pin male
  • Form Factor
    1.8"
  • NAND Flash Type
    2D SLC
  • Capacity
    64GB~128GB
  • External DRAM
    No
  • Sequential Read Performance (MB/sec)
    Up to 510
  • Sequential Write Performance (MB/sec)
    Up to 420
  • ECC Engine
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)
    70K
  • Extended Operating Temperature(°C )
    -40 ~ 85
  • Storage Temperature(°C )
    -55 ~ 100
  • Thermal Sensor
    Yes
  • Vibration
    Operation: Acceleration, 50(G)/11(ms)/half sine
    (Compliant with MIL-STD-202G)
    Non-operation: Acceleration,1,500(G)/0.5(ms)/half sine
    (Compliant with MIL-STD-883K)
  • Operating Voltage
    3.3V ± 5% / 5V ± 5%
  • Power Consumption
    3.3V: Active Mode (Max.): 680 mA; Idle Mode: 100 mA
    5V: Active Mode (Max.): 450 mA; Idle mode: 70 mA
  • Dimension (L x W x H )
    78.50 x 54.00 x 5.00, unit: mm
  • MTBF (hours)
    >3,000,000
