SSD

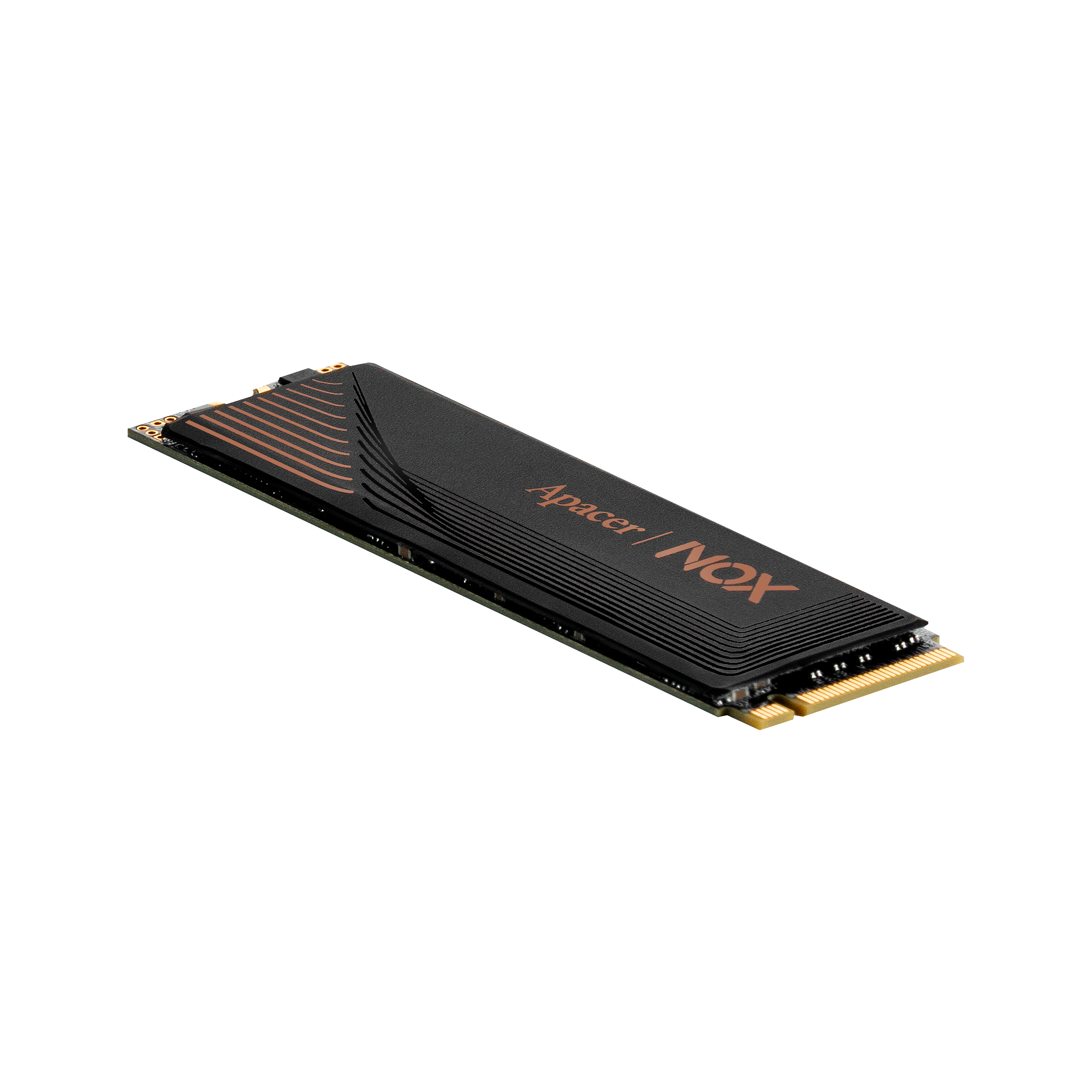

AG2280Q4X M.2 PCIe Gen4 x4

SSD

AG2280Q4X M.2 PCIe Gen4 x4

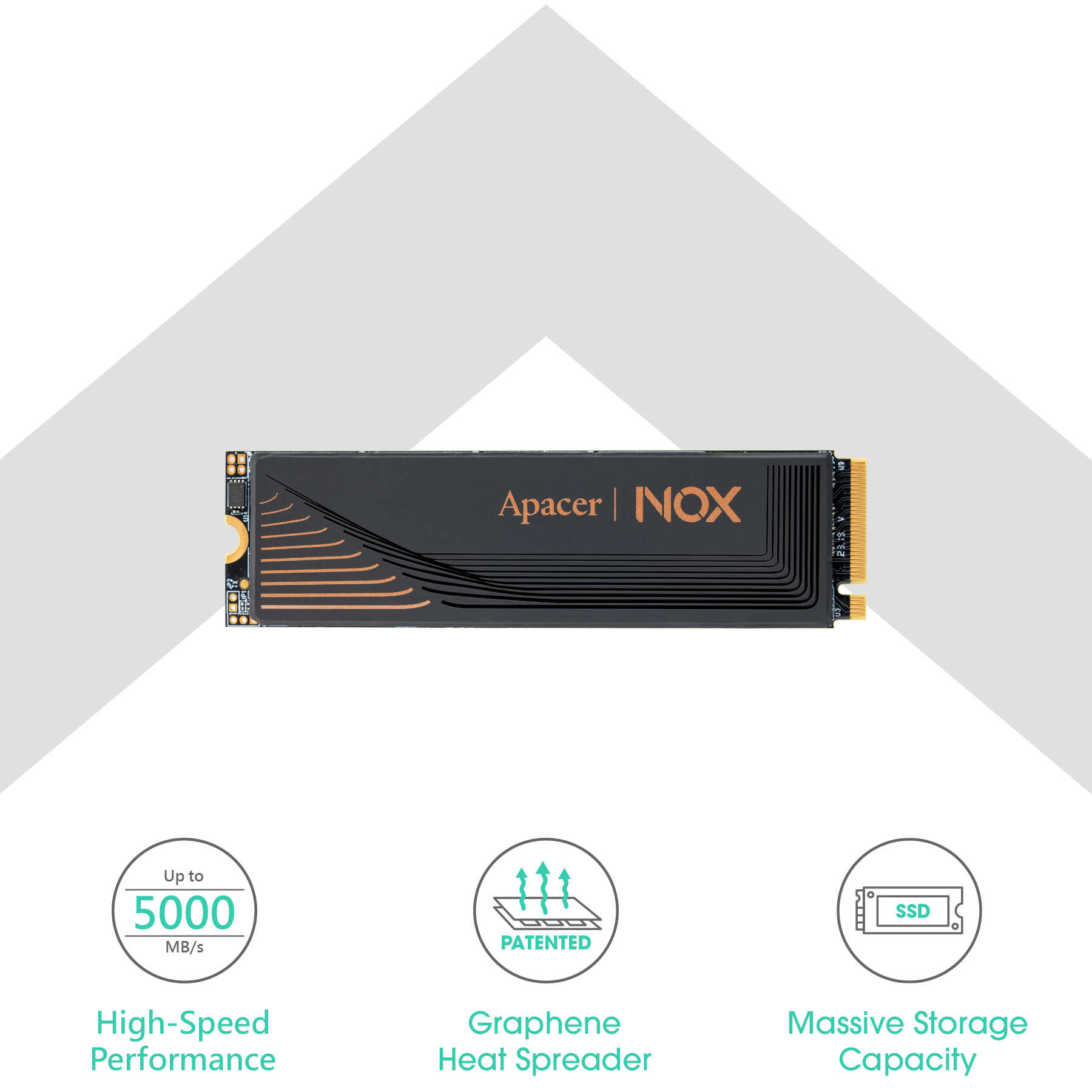

  • PCIe Gen4 x4 interface with full NVMe 1.4 compliance
  • Sequential read/write speeds up to 5000/4400 MB/s for high-speed gaming performance
  • Advanced stacked heat spreader design improves thermal management efficiency, reducing operating temperatures by up to 10%
  • Graphene heat spreader with patented sealed-edge design
  • Up to 4TB storage capacity for games, files, and content

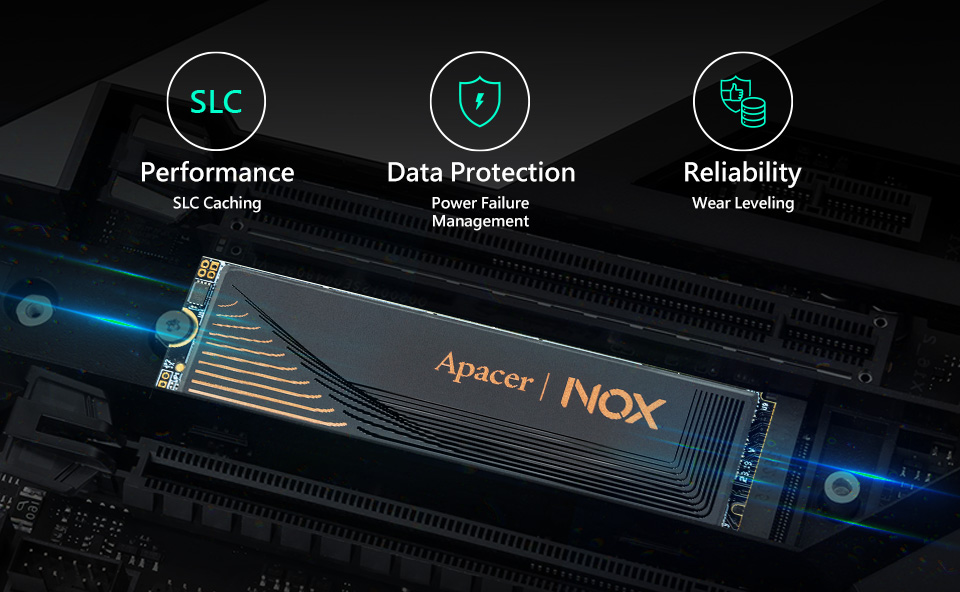

  • SLC Caching and advanced SSD technologies ensure fast, reliable, and stable gaming performance

AG2280Q4X_v5 6 2.jpg (473 KB)

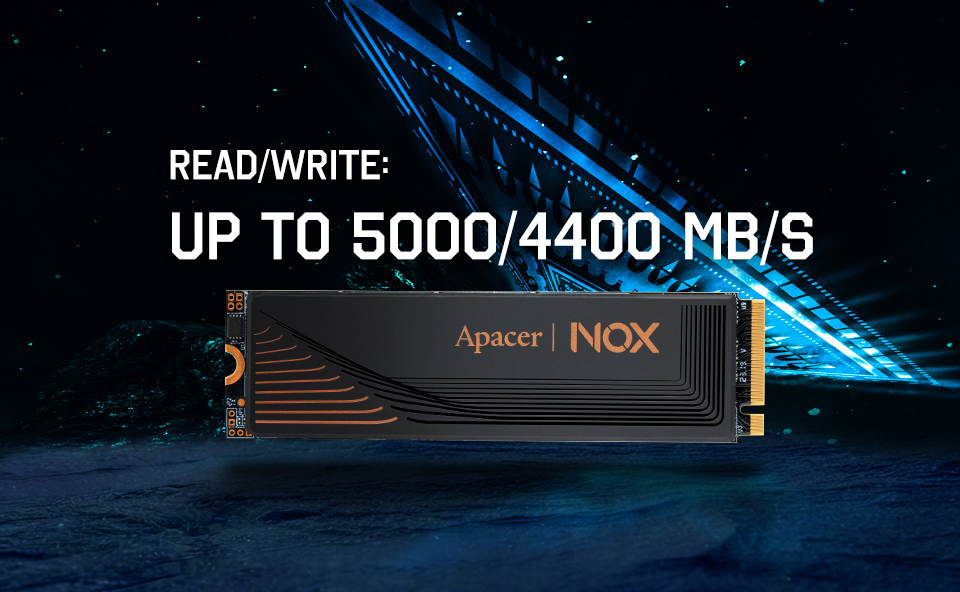

Instant-Loading Power

Read/write speeds of up to 5000/4400 MB/s and jump into the action instantly.

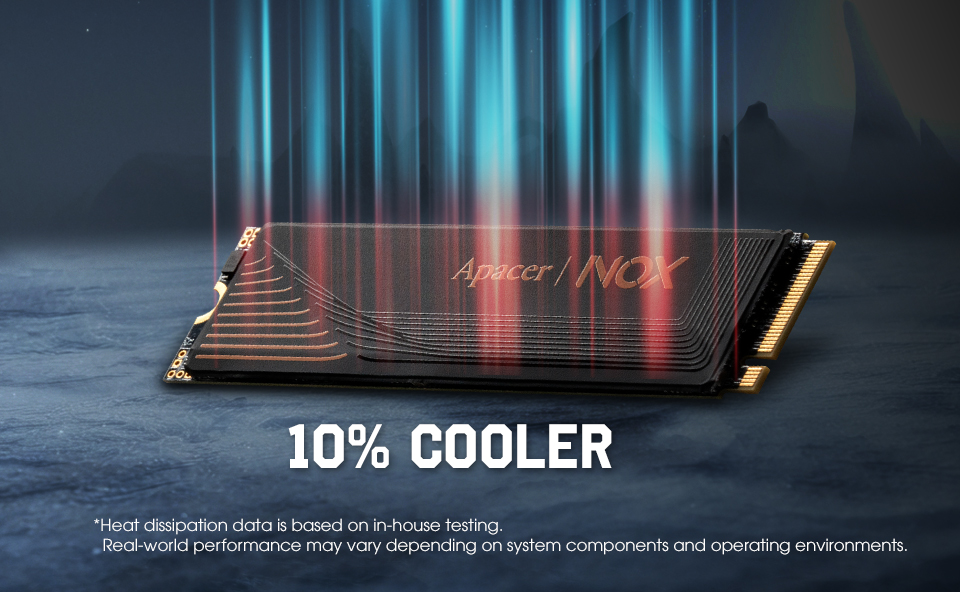

Ice-Cold Under Fire

Stacked graphene heat spreader reduces operating temperatures by up to 10%, keeping your system stable through intense gaming.

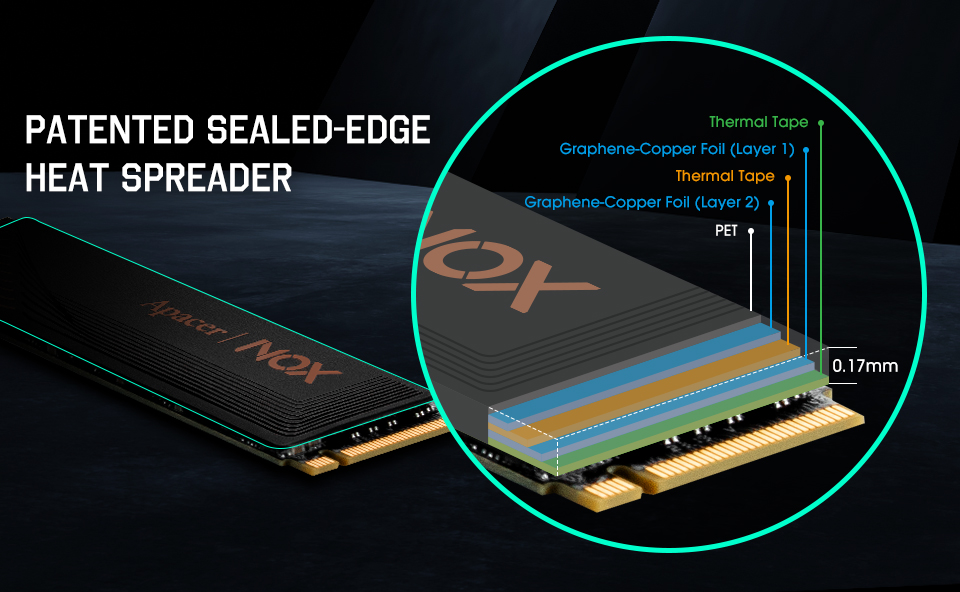

Shielded for Battle

Featuring a patented sealed-edge graphene heat spreader, it enhances SSD stability and heat dissipation while maintaining a slim, lightweight profile.

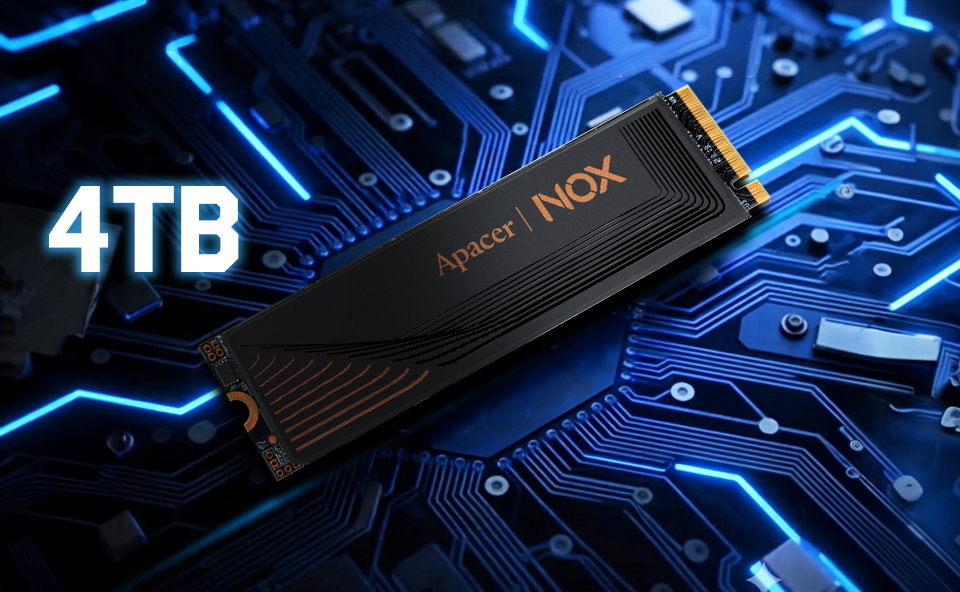

Massive Gaming Vault

Keep the entire gaming collection and media in one place. With 4TB of capacity, all content is ready for instant access.

Outlast the Competition

Play with confidence. LDPC ECC and End-to-End Data Protection safeguard your data, while SMART Read Refresh™ and S.M.A.R.T. ensure long-term SSD reliability.

Spec
  • Product Name
    AG2280Q4X
  • Capacity
    512GB/1TB/2TB/4TB
  • Interface
    PCIe Gen4 x4
  • NAND Flash
    3D NAND
  • Sequential Read Performance
    up to 5000 MB/s*
  • Sequential Write Performance
    Up to 4400 MB/s*
    *The performance may vary due to host hardware, software, usage and storage capacity.
  • IOPs (4K Random Write)
    Up to 750K
  • Shock
    1500G/0.5msec
  • MTBF
    >1,500,000 hours
  • Standard Operating Temperature
    0°C ~ 70°C
  • Storage Temperature
    -40°C ~ 85°C
  • Dimensions
    - Single side : (L)80.00 x (W)22.00 x (H)2.25
    - Double side : (L)80.00 x (W)22.00 x (H)3.50
    • Weight :
    - Single side : 7.6g
    - Double side : 10.2g
  • Accessory
    Graphene Heat Spreader
    *Free accessory without warranty.
  • Certificate
    CE, UKCA, FCC, VCCI, BSMI, RoHS
  • Warranty
    5 years or TBW, whichever occurs first
