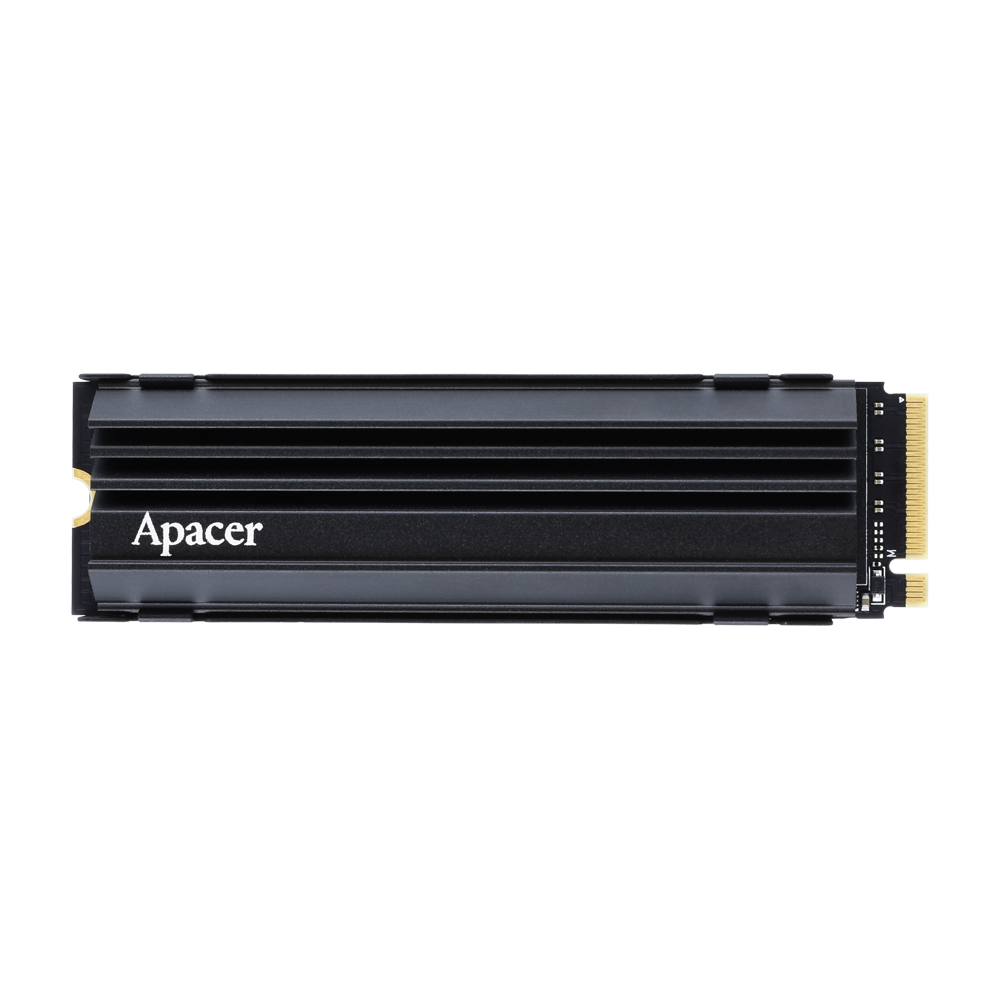

SSD

AG2280Q4U M.2 PCIe Gen4 x4

SSD

AG2280Q4U M.2 PCIe Gen4 x4

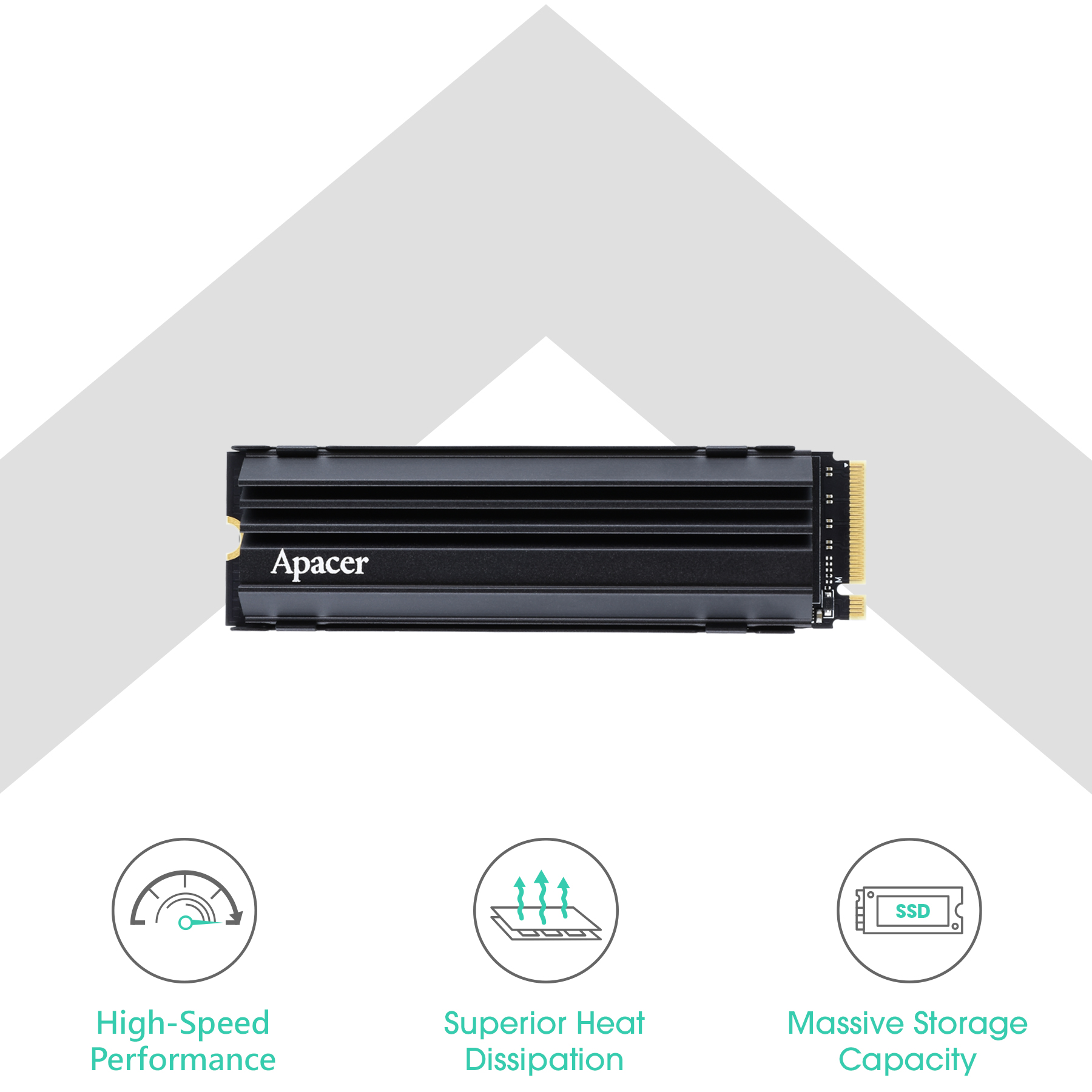

  • PCIe Gen4 x4 interface with full NVMe 1.4 compliance
  • Sequential read/write speeds up to 7400/7000 MB/s for high-speed performance
  • Metal heatsink with unique airflow design and PS5-inspired styling helps reduce operating temperatures by up to 35%
  • SLC Caching, Wear Leveling, and LDPC ensure superior data integrity and stability
  • Up to 8TB storage capacity to support high-performance gaming and high-resolution data storage

AG2280Q4U_V10-2 3 1.jpg (540 KB)

Blazing Speed

Experience faster game loading, smoother multitasking, and responsive performance with PCIe Gen4 read/write speeds of up to 7400/7000 MB/s for demanding gaming and high-performance applications.

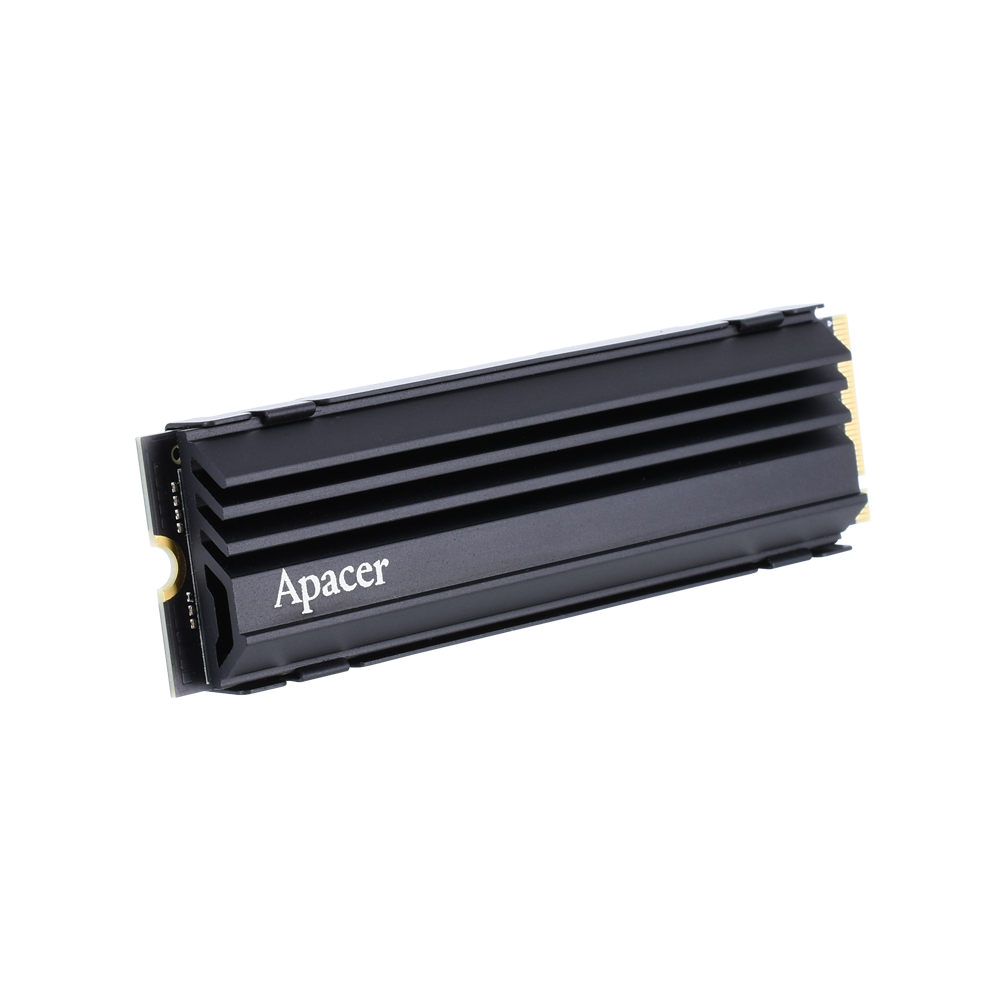

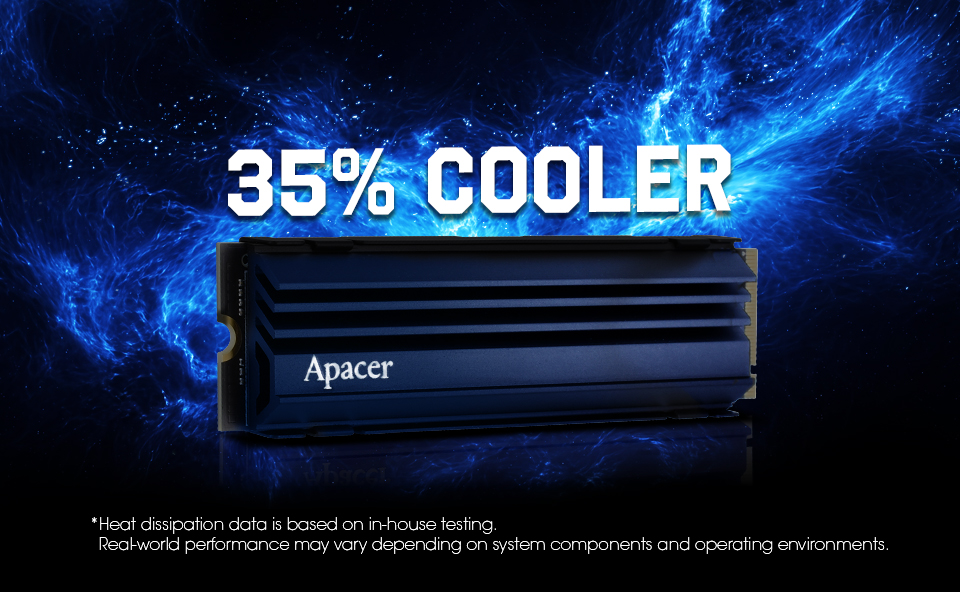

Freeze the Heat

A metal heatsink and unique airflow design help reduce operating temperatures by up to 35%, maintaining stable performance through extended gameplay.

Always Ready

LDPC ECC, End-to-End Data Protection, SMART Read Refresh™, and S.M.A.R.T. technologies work together to maintain data integrity and deliver reliable SSD performance for demanding gaming and high-performance applications.

Ultimate Game Storage

Store more games, high-resolution content, and demanding applications with up to 8TB capacity, built for endless game collections.

Spec
  • Product Name
    AG2280Q4U
  • Capacity
    512GB/1TB/2TB/4TB/8TB
  • Interface
    PCIe Gen4 x4
  • NAND Flash
    3D NAND
  • Sequential Read Performance
    Up to 7400 MB/s
  • Sequential Write Performance
    Up to 7000 MB/s
    *The performance may vary due to host hardware, software , usage and storage capacity
  • IOPs (4K Random Write)
    Up to 1000K
  • Shock
    1500G/0.5 msec
  • MTBF
    >1,600,000 hours
  • Standard Operating Temperature
    0°C ~ 70°C
  • Storage Temperature
    -40°C ~ 85°C
  • Dimensions
    - Single side : (L)80.00 x (W)22.00 x (H)2.25mm
    - Double side : (L)80.00 x (W)22.00 x (H)3.50mm
    • Weight :
    - Single side : 7.6g
    - Double side : 10.2g
  • Accessory
    Heatsink
    *Free accessory without warranty.
  • Certificate
    CE, UKCA, FCC, VCCI, BSMI, RoHS
  • Warranty
    5 years or TBW, whichever occurs first
Brochure
  • Document
    Version
    Language
    OS
    Updated
    Size
    Download
  • Apacer Specsheet_AG2280Q4U
    2026/10/15
    1.53 MB
  • Apacer Data Sheet_AG2280Q4U
    2026/09/29
    1.53 MB
  • AG2280Q4U Quick Guide
    2026/08/11
    2.41 MB
Brochure
  • Document
    Download

  • Apacer Specsheet_AG2280Q4U

    Version：

    Language：

    OS：

    Updated：2026/10/15

    Size：1.53 MB

  • Apacer Data Sheet_AG2280Q4U

    Version：

    Language：

    OS：

    Updated：2026/09/29

    Size：1.53 MB

  • AG2280Q4U Quick Guide

    Version：

    Language：

    OS：

    Updated：2026/08/11

    Size：2.41 MB
