M.2 SATA III SSD

AST280X M.2 SATA III

M.2 SATA III SSD

AST280X M.2 SATA III

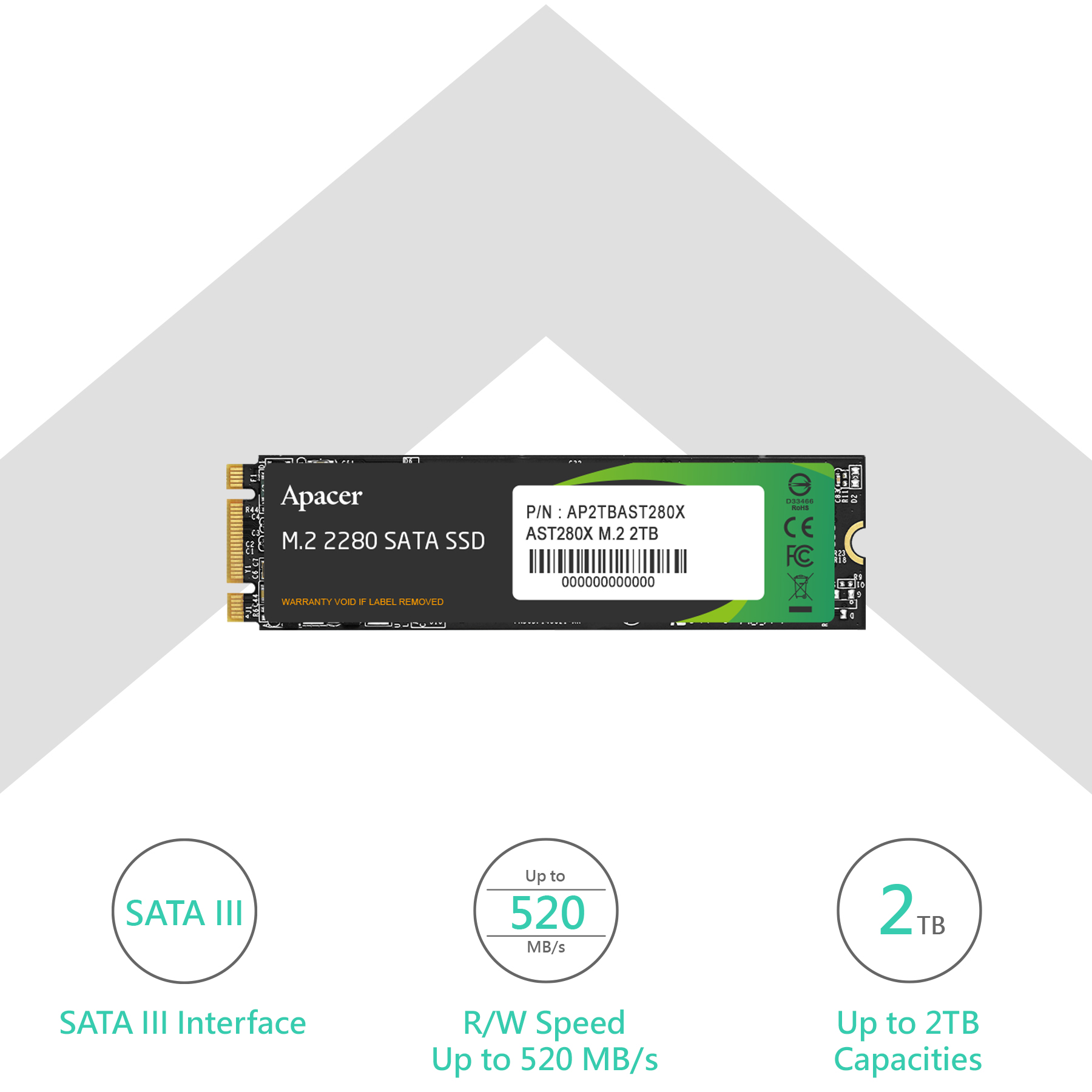

  • Ultra-slim M.2 form factor and compatible with SATA III 6.0 Gb/s interface

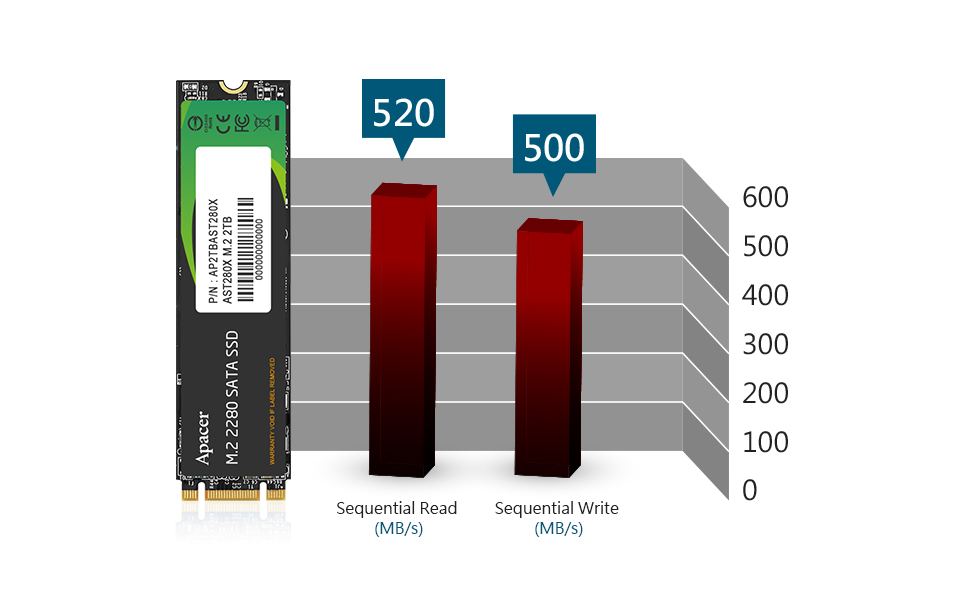

  • Read/Write speed up to 520/500 MB/s

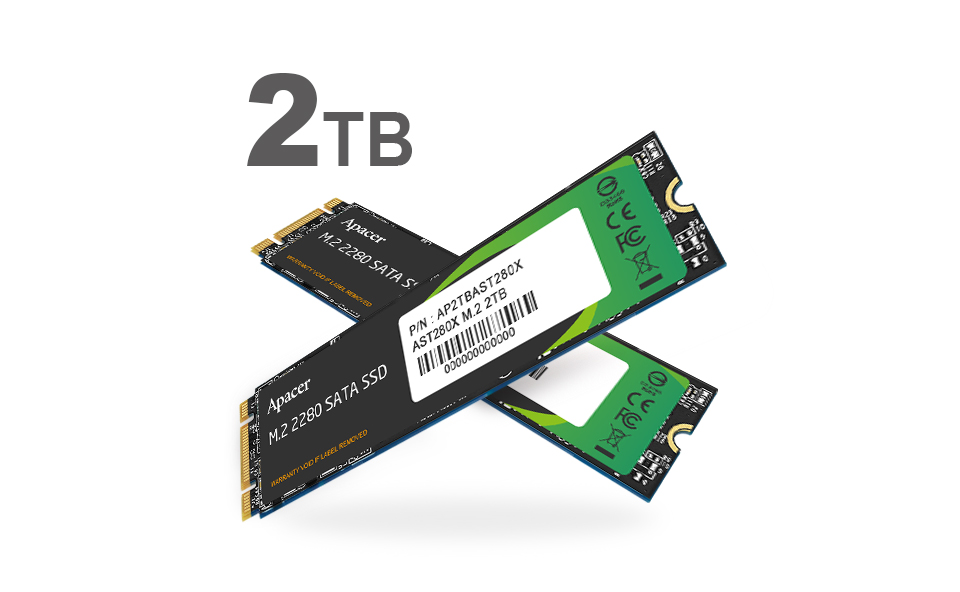

  • Capacities up to 2TB

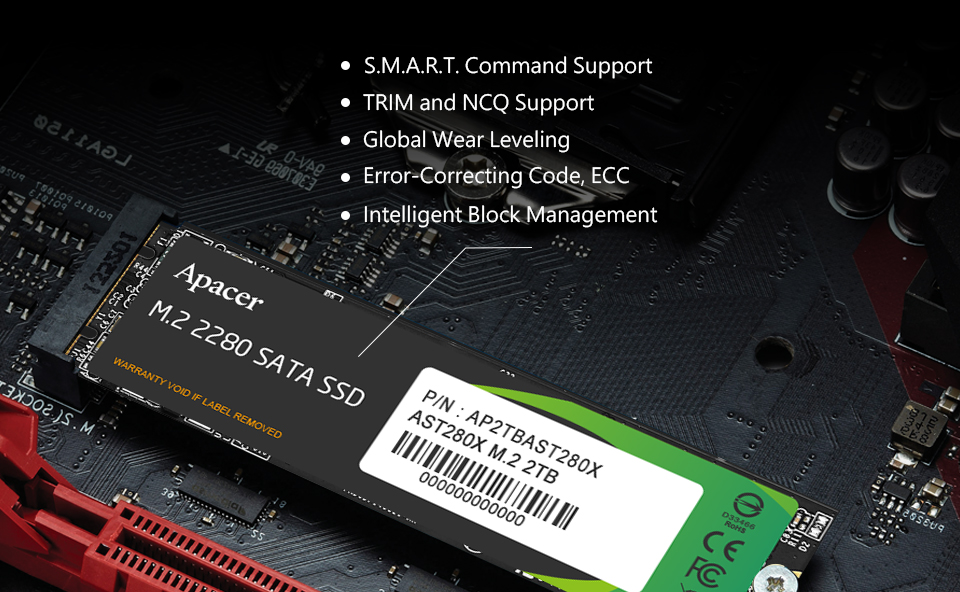

  • Built-in data protection mechanism such as Wear Leveling and Intelligent Block Management
Spec
  • Product Name
    AST280X
  • Capacity
    128GB/256GB/512GB/1TB/2TB
  • Interface
    SATA III
  • NAND Flash
    3D NAND
  • Sequential Read Performance
    Up to 520 MB/s
  • Sequential Write Performance
    Up to 500 MB/s*

    *The performance may vary due to host hardware, software , usage and storage capacity.
  • IOPs (4K Random Write)
    Up to 73K
  • Shock
    1,500G/0.5msec
  • Standard Operating Temperature
    0°C ~ 70°C
  • Storage Temperature
    -40°C ~ 85°C
  • Dimensions
    (L)80.00 x (W)22.00 x (H)2.25 mm
  • Certificate
    CE, UKCA, FCC, BSMI, VCCI
  • Warranty
    3 years or TBW, whichever occurs first.
