M.2 PCIe SSD

AS2280Q4L M.2 PCIe Gen4 x4 SSD

M.2 PCIe SSD

AS2280Q4L M.2 PCIe Gen4 x4 SSD

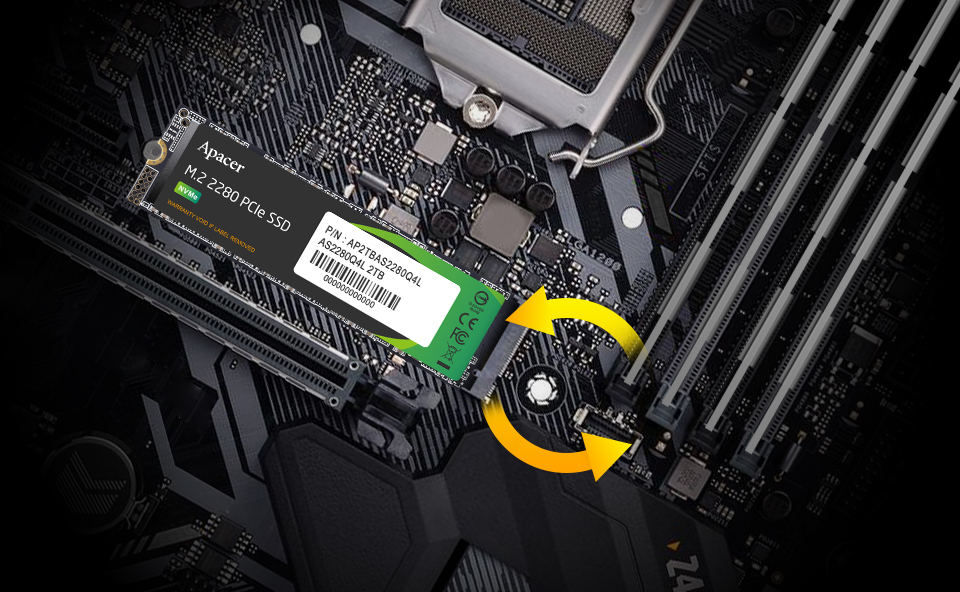

  • PCIe Gen4 x4 interface is fully compliant with the NVMe 1.4 standard.
  • With sequential read/write performance of up to 3,600 / 3,000 MB/s.
  • Built with 3D NAND Flash, offers capacity options of up to 2TB and performs higher efficiency and reliability.

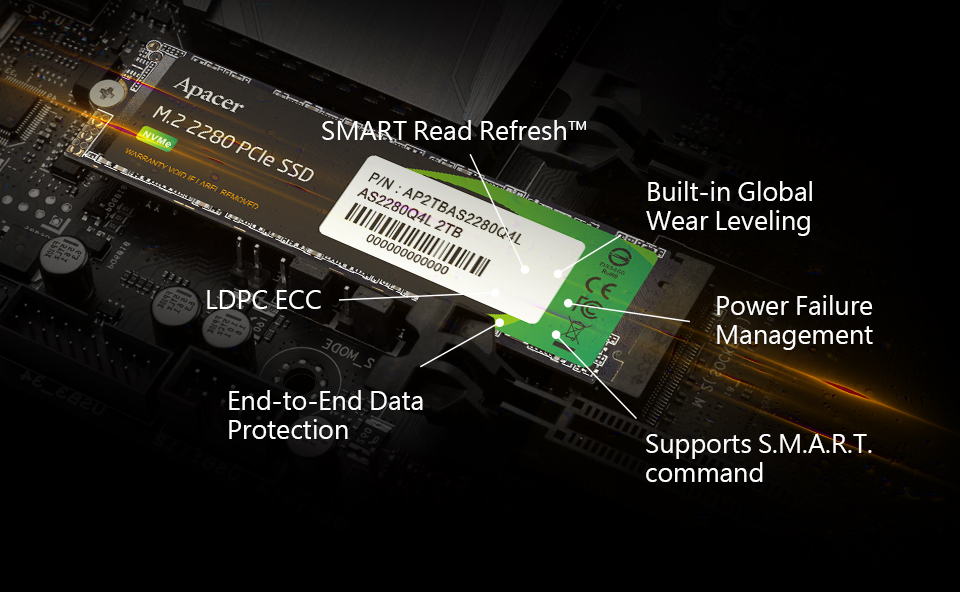

  • Data Protection Mechanism Delivers Consistent Performance
Spec
  • Product Name
    AS2280Q4L
  • Capacity
    512GB~2TB
  • Interface
    PCIe Gen4 x4
  • NAND Flash
    3D NAND
  • Sequential Read Performance
    Up to 3,600 MB/s
  • Sequential Write Performance
    Up to 3,000 MB/s

    *The performance may vary due to host hardware, software , usage and storage capacity.
  • IOPs (4K Random Write)
    Up to 600,000 IOPS
  • Shock
    1,500G/0.5msec
  • MTBF
    1,500,000 hours
  • Standard Operating Temperature
    0°C ~ +70°C
  • Storage Temperature
    -40 ~ +85°C
  • Dimensions
    Single side : (L)80 x (W)22 x (H)2.25mm
    Double side : (L)80 x (W)22 x (H)3.50mm
  • Warranty
    3 years limited warranty
