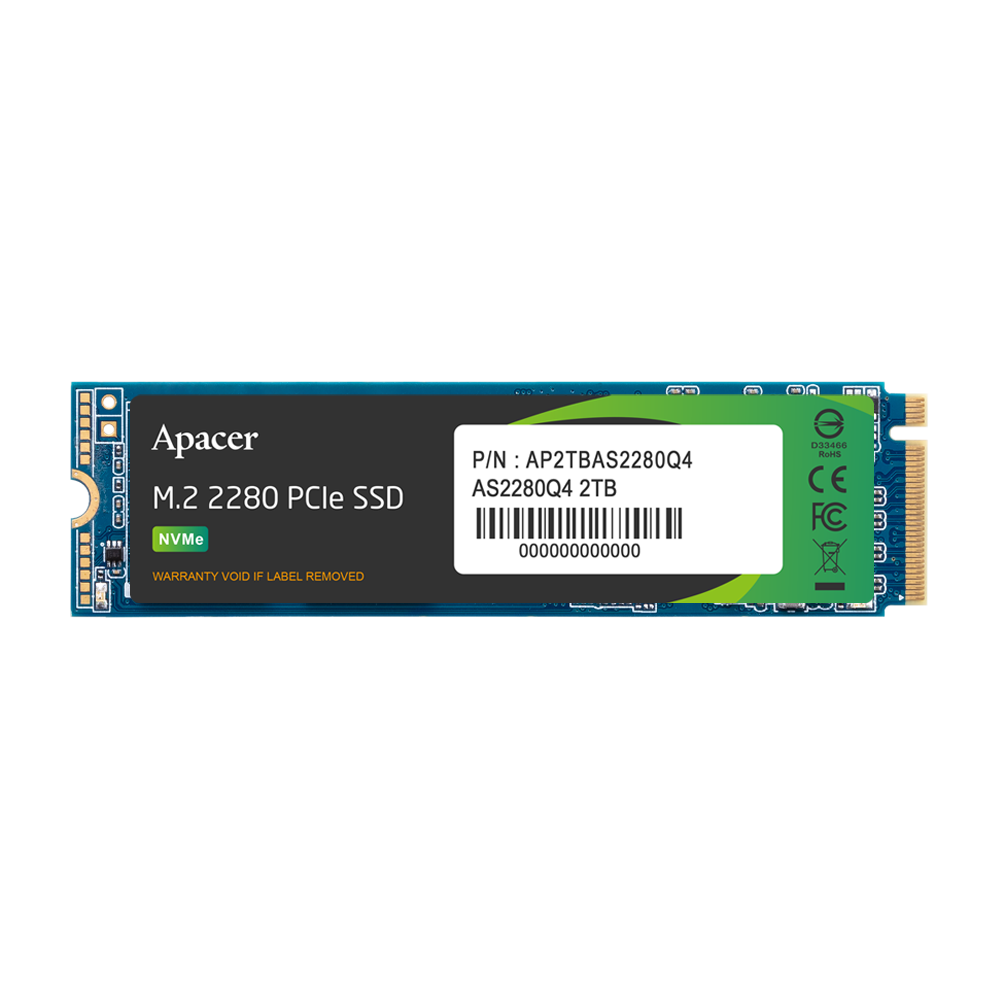

M.2 PCIe SSD

AS2280Q4 M.2 PCIe Gen4 x4

M.2 PCIe SSD

AS2280Q4 M.2 PCIe Gen4 x4

  • The Latest PCIe 4.0 Technology
  • Compliant with NVMe 1.3 Standard
  • 3D TLC NAND Flash – Compact Size with Higher Capacity and Reliability
  • Up to 5000 MB/s Ultra-High-Speed and Super-Steady
  • Dedicated Heat Sink for Better Cooling
  • Superior Data Integrity and Security
Up to 5000 MB/s Super-Speed

AS2280Q4 SSD provides up to 5000+ MB/s reading and 4400+ MB/s writing speeds. Building on Apacer's global strengths in industrials technology, the built-in protection technology not only ensures users of a perfect high-speed experience, but also data integrity and stability.

3D TLC NAND Flash

Built with 3D TLC NAND Flash, AS2280Q4 offers capacity options of up to 2TB and performs higher efficiency and reliability. It supports over-provisioning technology to extend a longer operating lifetime by effectively executing garbage collection, wear-leveling, and bad block management.

The Latest PCIe 4.0 Technology

Designed with PCIe connector pinouts, AS2280Q4’s providing full compliance with the latest PCIe Gen4x4 interface specifications and conforms to NVMe requirements. It not only delivers exceptional performance of nearly 10 times faster than a SATA SSD and power efficiency, but also fully compatible with PCIe 3.0.

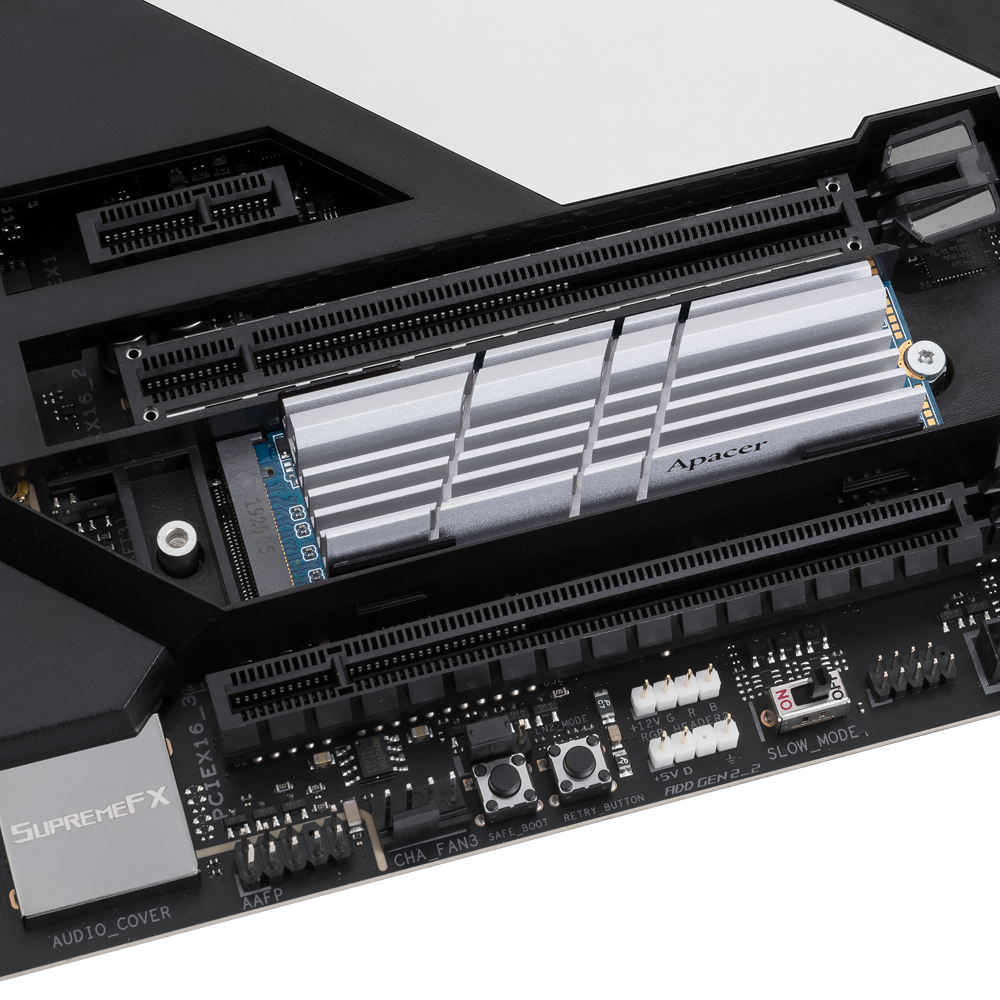

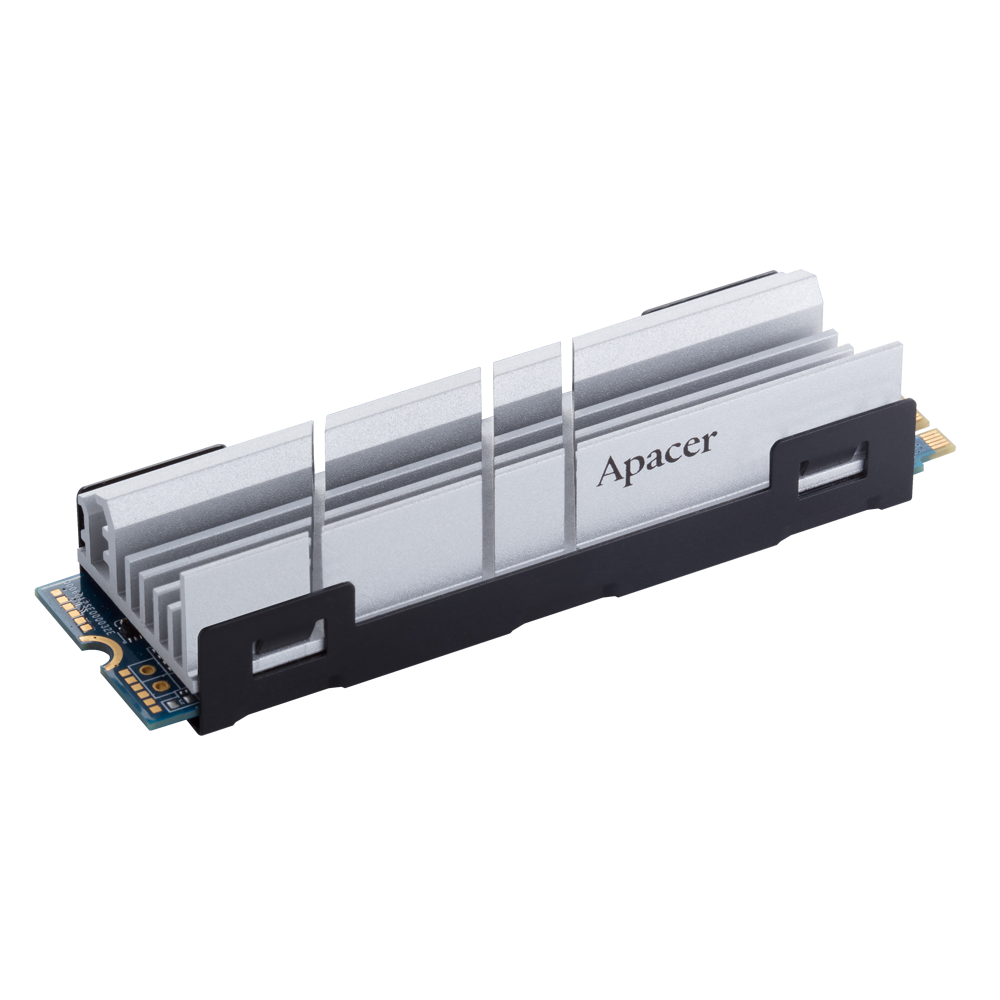

Dedicated Heat Sink for Better Cooling

AS2280Q4 SSD provides a free dedicated heat spreader with special diversion cutting design to effectively reduce the PCIe 4.0 SSD temperature to maintain reading and writing performance at optimum levels.

Superior Data Integrity and Security

AS2280Q4 SSD supports Thermal Throttling mechanism to dynamically adjust frequency scaling to enhance data reliability and provides sustained performance while overheating. Furthermore, with E2E (End-to-End) Data Protection to extend error control, AS2280Q4 ensures superior data security, integrity, and a longer SSD lifetime.

Spec
  • Product Name
    AS2280Q4
  • Capacity
    500GB~2TB
  • Interface
    PCIe Gen4 x4
  • NAND Flash
    3D TLC
  • Sequential Read Performance
    up to 5,000 MB/s
  • Sequential Write Performance
    up to 4,400 MB/s
    **The performance may vary due to host hardware, software , usage and storage capacity
  • IOPs (4K Random Write)
    Up to 750K IOPs
  • Shock
    1,500G/0.5msec
  • MTBF
    1,500,000 hours
  • Standard Operating Temperature
    0°C ~ +70°C
  • Storage Temperature
    -40 ~ +85°C
  • Dimensions
    Single-sided: (L)80.00 x (W)22.00 x (H)2.25(max.)
    Double-sided: (L)80.00 x (W)22.00 x (H)3.5(max.)

    Single-sided: 7.6g
    Double-sided: 10.2g
  • Certificate
    CE, FCC, VCCI, BSMI, RoHS
  • Warranty
    3 Years
    *The SSD is based on the TBW or Warranty period.
