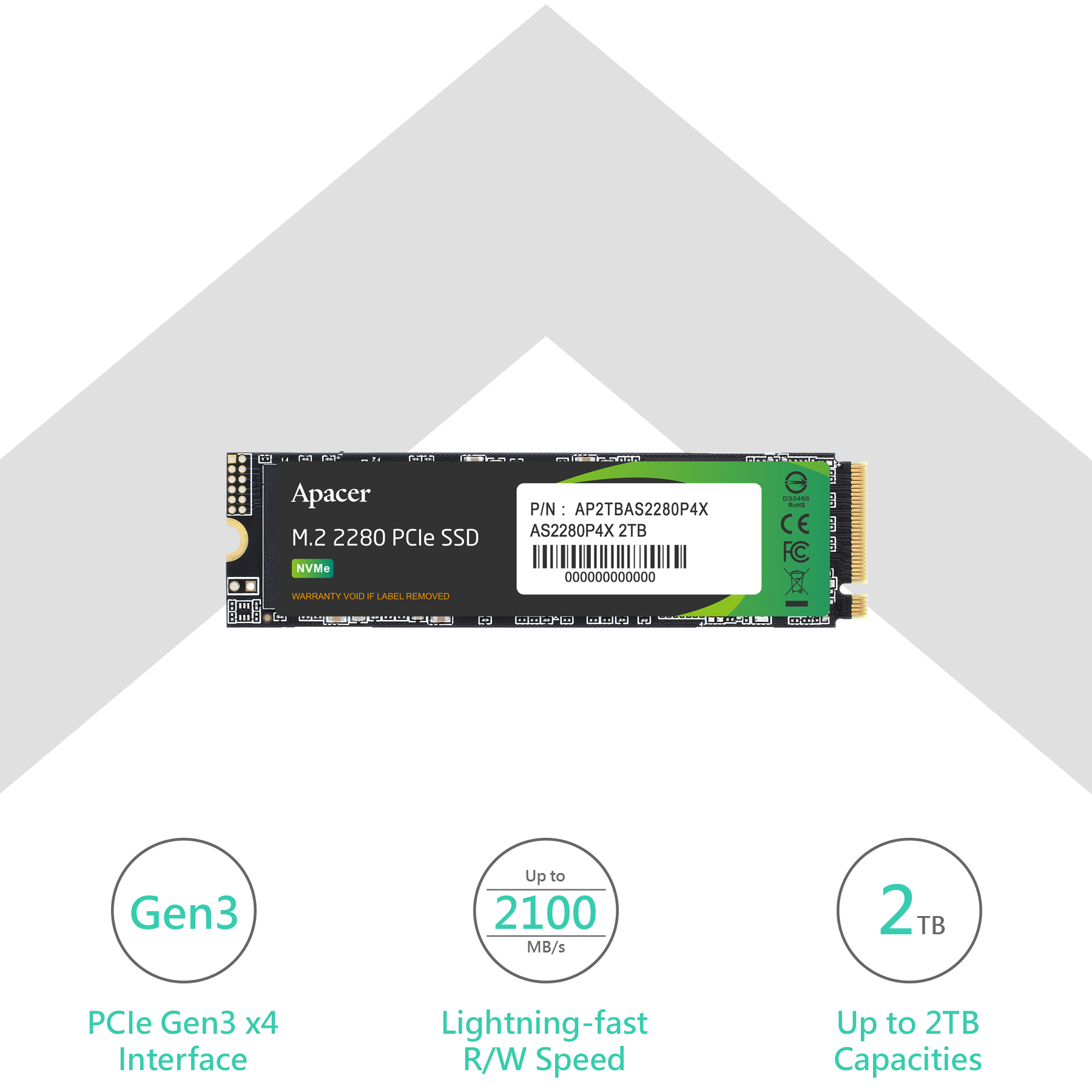

M.2 PCIe SSD

AS2280P4X M.2 PCIe Gen3 x4

M.2 PCIe SSD

AS2280P4X M.2 PCIe Gen3 x4

  • Adopts a PCIe Gen3 x4 interface
  • Compliant with NVMe 1.3 standard
  • Extremely thin and light M.2 interface
  • Read and write speeds up to 2,100 / 1,700 MB/s
Spec
  • Product Name
    AS2280P4X
  • Capacity
    256GB/512GB/1TB/2TB
  • Interface
    PCIe Gen3 x4
  • NAND Flash
    3D NAND
  • Sequential Read Performance
    Up to 2,100 MB/s
  • Sequential Write Performance
    Up to 1,700 MB/s

    *The performance may vary due to host hardware, software , usage and storage capacity.
  • IOPs (4K Random Write)
    Up to 530K
  • Shock
    1,500G/0.5msec
  • MTBF
    >1,500,000 hours
  • Standard Operating Temperature
    0°C ~ 70°C
  • Storage Temperature
    -40°C ~ 85°C
  • Dimensions
    Single side : (L)80.00 x (W)22.00 x (H)2.25mm
    Double side : (L)80.00 x (W)22.00 x (H)3.5mm
    Weight: 6.8g
  • Certificate
    CE, FCC, VCCI, BSMI, RoHS
  • Warranty
    3 years or TBW, whichever occurs first.
