The AS2280P4U uses a M.2 PCIe Gen 3 x4 transmission interface, 3D flash memory, and Apacer's unique SSD tuning technology. Together, these greatly increase the read/write speed to 3,500/3,000 MB/s, improves data access capabilities, and allows users to boot quickly and easily switch between multiple programs, delivering an expert-level multi-tasking experience.

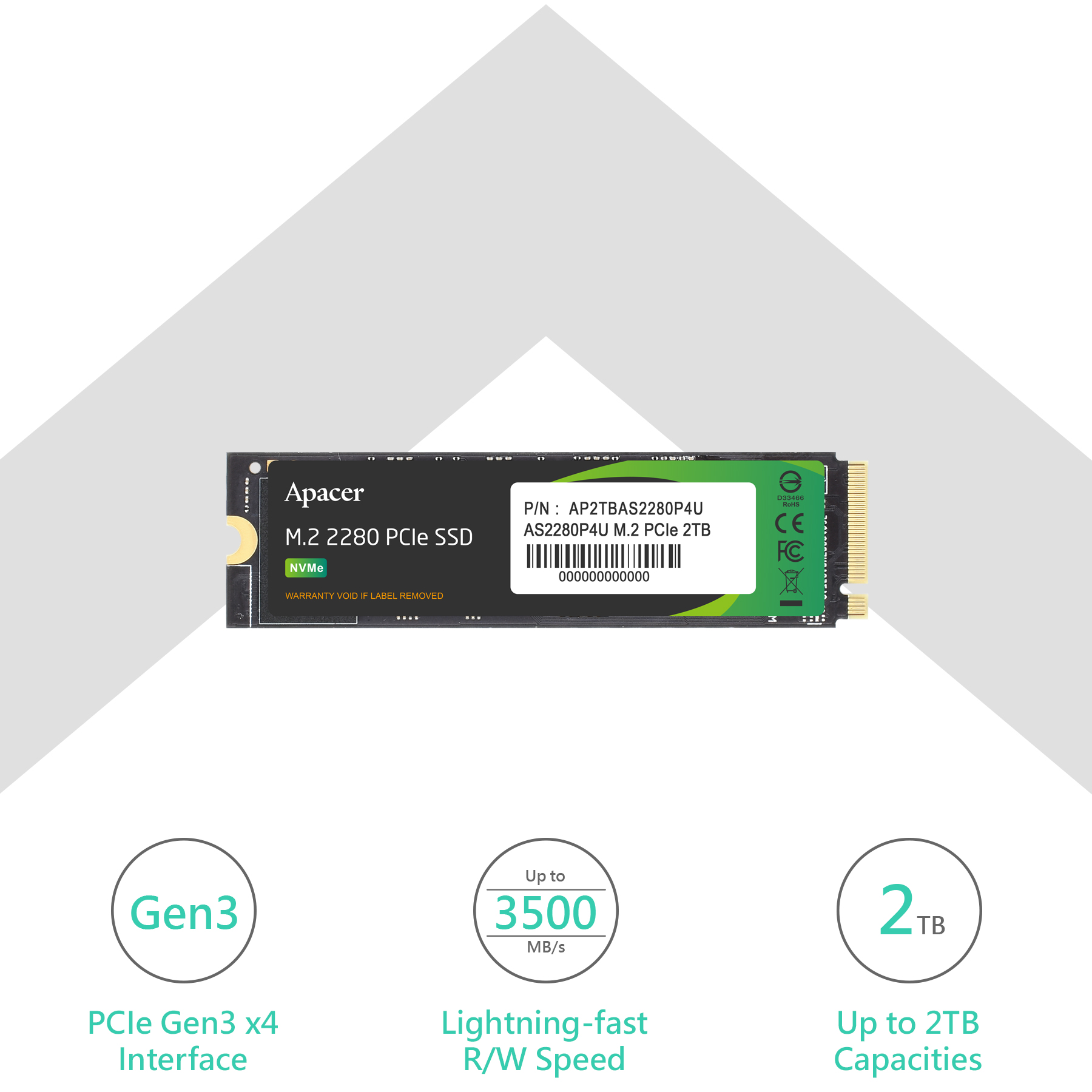

AS2280P4U M.2 PCIe Gen3 x4
AS2280P4U M.2 PCIe Gen3 x4
- The latest generation PCIe Gen 3x4 speed
- Complies with the latest NVMe 1.3 specification
- Extremely thin and light M.2 interface
- Continuous read speed up to 3,500MB/s; continuous write speed up to 3,000MB/s
- 5-year Warranty Gives Peace of Mind


The 22mm x 80mm ultra-small body can accommodate storage of up to 2TB, but the thickness is only 2.25mm, which leaves precious space inside a computer case. The large storage capacity allows video editors or designers the freedom to display their creativity, and gives gamers room for the latest DLC.

To provide users with a flawless high-speed experience, the AS2280P4U SSD has built-in multiple protection technologies to effectively ensure data accuracy and stability. SLC Caching uses an advanced layered cache structure to improve the speed performance of the product. Global wear leveling technology and automatic error correction (ECC) functions can improve the average lifespan and operational stability of the SSD, making the AS2280P4U faster and more stable for years to come!

The AS2280P4U has passed Apacer's rigorous product verification and has a five-year limited quality warranty, providing consumers with peace of mind.
-
Product NameAS2280P4U
-
Capacity256GB~2TB
-
InterfacePCIe Gen3 x4
-
NAND Flash3D NAND
-
Sequential Read PerformanceUp to 3,500 MB/s
-
Sequential Write PerformanceUp to 3,000 MB/s
*The performance may vary due to host hardware, software , usage and storage capacity. -
IOPs (4K Random Write)Up to 360,000 IOPS
-
Shock1,500G/0.5msec
-
MTBF1,800,000 hours
-
Standard Operating Temperature0°C ~ +70°C
-
Storage Temperature-40 ~ +85°C
-
DimensionsSingle side : (L)80.00 x (W)22.00 x (H)2.25mm
Double side : (L)80.00 x (W)22.00 x (H)3.5mm
Weight: 6.8g -
CertificateCE, FCC, VCCI, BSMI, RoHS
-
Warranty5-Year Limited Warranty
*The SSD is based on the TBW or warranty period.
