M.2 PCIe SSD

AS2280P4 M.2 PCIe Gen3 x4

M.2 PCIe SSD

AS2280P4 M.2 PCIe Gen3 x4

  • Compliant with NVMe 1.3 Standard
  • Ultra Thin M.2 Form Factor

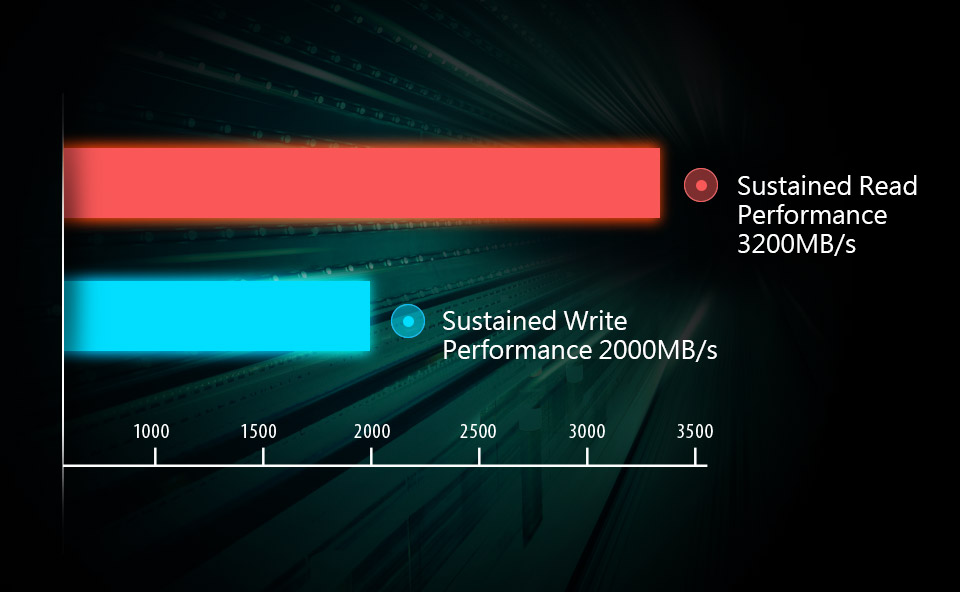

  • Sequential Read/Write Speed up to 3000/2000MB/s
  • Random Write Performance Up to 360,000 IOPs
Spec
  • Product Name
    AS2280P4
  • Capacity
    240GB~1TB
  • Interface
    PCIe Gen3 x4
  • NAND Flash
    3D NAND
  • Sequential Read Performance
    Up to 3,000MB/s
  • Sequential Write Performance
    Up to 2,000MB/s

    *The performance may vary due to host hardware, software , usage and storage capacity.
  • IOPs (4K Random Write)
    Up to 360,000 IOPS
  • ECC Support
    Up to 72bit/1KB
  • Shock
    1,500G/0.5msec
  • Vibration
    7~800Hz, 3.08Grms
  • Low Power Consumption (Active/Idle)
    275/80mA
  • MTBF
    1,500,000 hours
  • Humidity
    5% ~95%
  • Standard Operating Temperature
    0°C ~ +70°C
  • Storage Temperature
    -40 ~ +85°C
  • Dimensions
    (L)80 x (W)22 x (H)2.25mm
  • Certificate
    CE, FCC, VCCI, BSMI, RoHS
  • Warranty
    3 Years
    *The SSD is based on the TBW or Warranty period.
