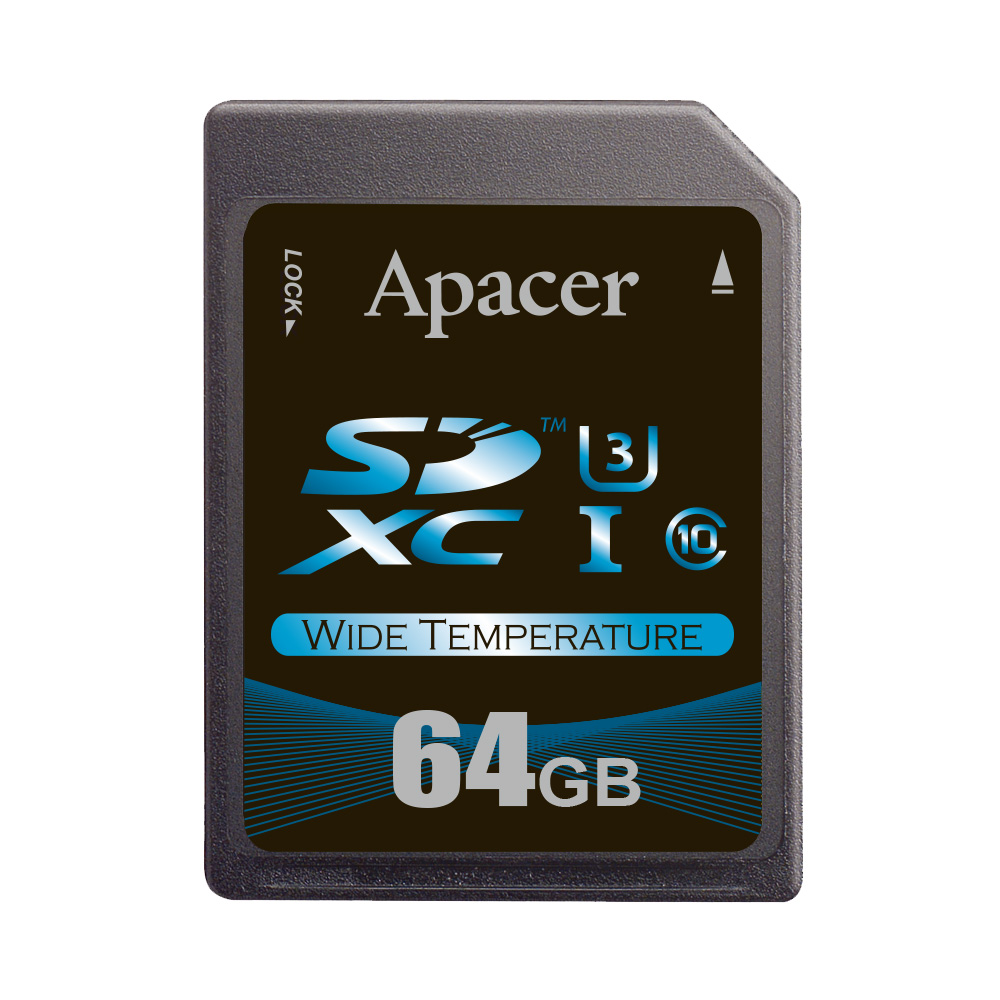

Industrial SD H1-SL

SD

Industrial SD H1-SL

  • Compliant with SD 3.0 Specification
  • S.M.A.R.T Supported
  • Support SD Mode and SPI Mode
  • Wear-leveling and Block Management
  • Support Class 10 with UHS-I
  • SLC-Lite Technology
  • Low Power Consumption
  • Auto Read Refresh
  • Power Failure Management

Introduction

Apacer Industrial Secure Digital 3.0 card is ideal for its high performance, good reliability and wide compatibility, not to mention that it’s well adapted for hand-held applications in semi-industrial/medical markets already. The H1-SL series providing wide range capacities from 4GB to 64GB fully compliant to SD3.0, and SD2.0 specifications are built with MLC NAND Flash and the latest firmware including read disturb , wear leveling & bad block management algorithms Furthermore, with Apacer’s SLC-lite technology, it performs with higher number of P/E cycles up to 20,000 , but lower cost than SLC. This product is well suited for portable flash storage applications while operating at minimal power consumption.

Spec
  • Model
    Industrial SD H1-SL
  • Interface
    SD 3.0
  • Form Factor
    SD
  • NAND Flash Type
    MLC
  • Capacity
    4GB~64GB
  • Sequential Read Performance (MB/sec)
    Up to 43
  • Sequential Write Performance (MB/sec)
    Up to 40
  • ECC Engine
    Built-in 42-bit per 1K bytes BCH ECC
  • Standard Operating Temperature (°C )
    -25 ~ + 85
  • Extended Operating Temperature(°C )
    -40 ~ +85
  • Storage Temperature(°C )
    -40 ~ + 85
  • Shock
    (Operating)1,500G, 0.5ms
  • Vibration
    20Hz~80Hz/1.52mm (frequency/displacement)
    80Hz~2,000Hz/20G (frequency/accelerate)
  • Operating Voltage
    2.7V ~ 3.6V
  • Power Consumption
    Active mode: 145 mA & Idle mode: 240 uA
  • Dimension (L x W x H )
    24.00 x 32.00 x 2.10 (mm)
  • MTBF (hours)
    >3,000,000
