Enterprise Series

PV19E-25W

Enterprise Series

PV19E-25W

  • Enterprise SSD PV19E-25W
  • Core Power
  • DWPD>3
  • Low-Density Parity-Check (LDPC) Code
  • Global Wear Leveling
  • Flash bad-block management
  • Flash Translation Layer: Page Mapping
  • S.M.A.R.T.
  • TRIM
  • Over-provisioning
  • SMART Read Refresh™
  • NVMe Secure Erase
  • Namespace

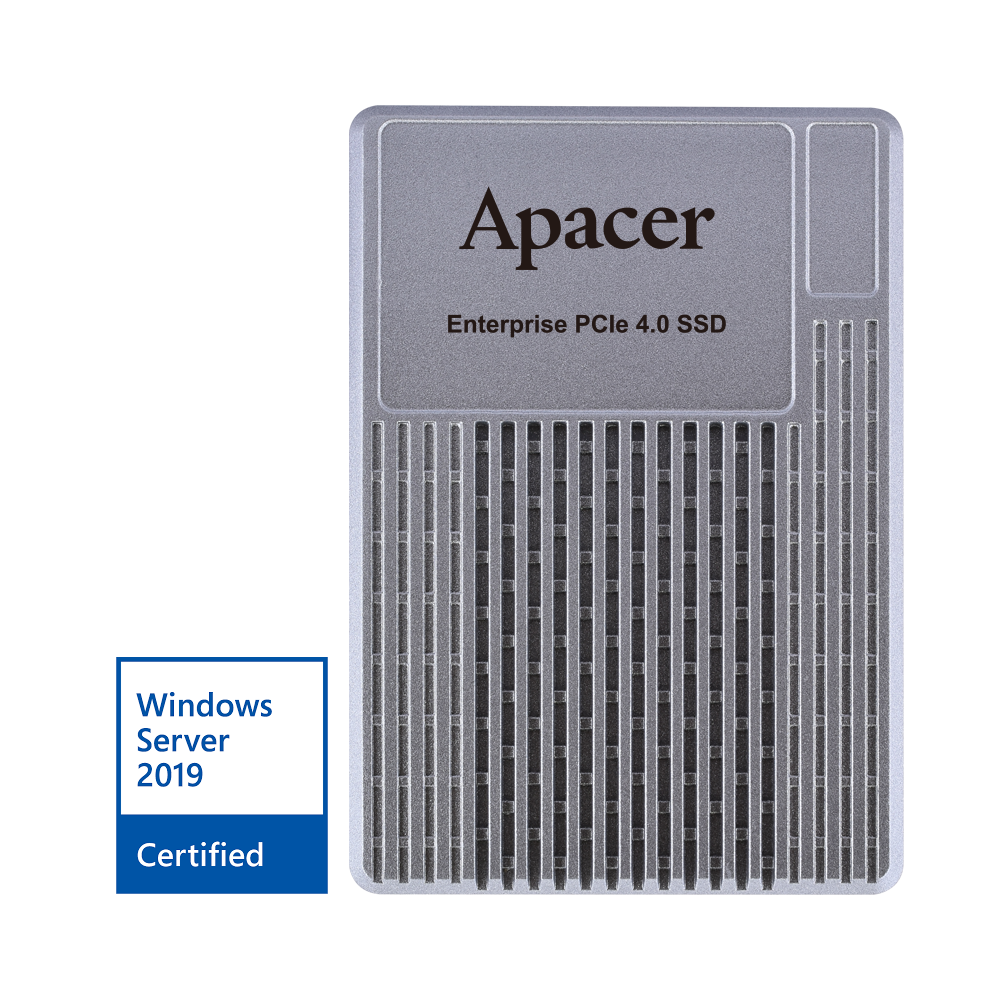

Apacer's PV19E-25W U.3 Solid State Disk (SSD) delivers all the advantages of flash disk technology with PCIe Gen4 x4 interface, including being fully compliant with standard U.2/U.3 form factor, providing low power consumption compared to traditional hard drive and hot-swapping when removing/replacing/upgrading flash disks.



PV19E-25W delivers outstanding performance up to 7,000 MB/s (for sequential read) and 6,800 MB/s (for sequential write) based on eTLC NAND flash with the DDR4. Moreover, the power consumption of U.2/ U.3 (15mm) SSD is much lower than traditional hard drives, making it the best embedded solution for new platforms.

Spec
  • Model
    PV19E-25W
  • Interface
    PCIe Gen4 x4
  • Connector
    U.3 (SFF-TA-1001)
  • Form Factor
    U.3 15mm
  • NAND Flash Type
    3D eTLC
  • Capacity
    1600GB ~ 12800GB
  • External DRAM
    Yes
  • Sequential Read Performance (MB/sec)
    Up to 7000
  • Sequential Write Performance (MB/sec)
    Up to 6800
  • ECC Engine
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4K Random Write)
    480K
  • Standard Operating Temperature (°C )
    0 ~ + 70
  • Storage Temperature(°C )
    -55 ~ + 100
  • Thermal Sensor
    Yes
  • Shock
    Operating: Acceleration, 50(G)/11(ms)/half sine
    (compliant with MIL-STD-202G)
    Non-operating: Acceleration, 1500(G)/0.5(ms)/half sine
    (compliant with MIL-STD-883K)
  • Vibration
    Operation: 7.69 Grms, 20~2000 Hz/random
    (compliant with MIL-STD-810G)
    Non-operation: 4.02 Grms, 15~2000 Hz/random
    (compliant with MIL-STD-810G)
  • Operating Voltage
    12V ± 10%
  • Power Consumption
    Active mode: 20.8 W / Idle mode: 7.43 W
  • Dimension (L x W x H )
    100.10 x 69.85 x 14.65,unit: mm
  • MTBF (hours)
    >3,000,000
