microSD

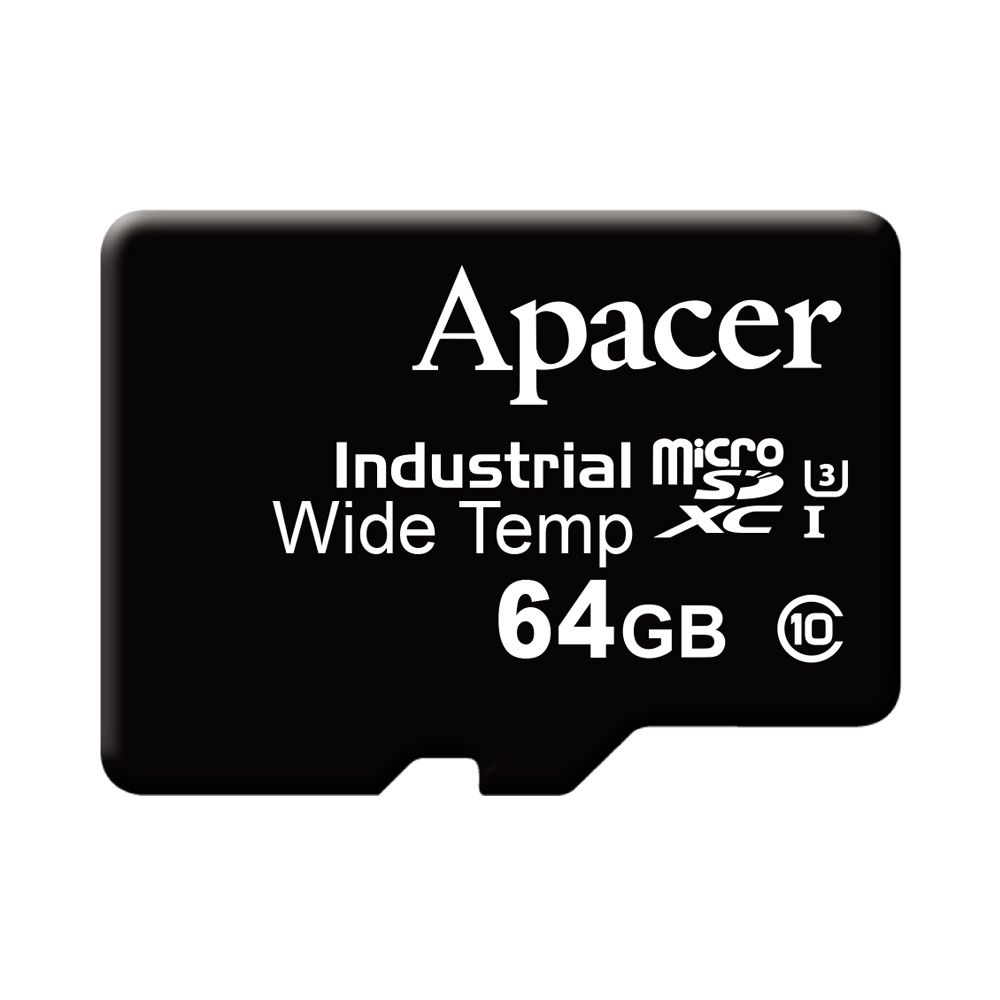

Industrial microSD H1-M

  • Compliant with SD 3.0 Specification
  • S.M.A.R.T supported
  • Support SD mode and SPI mode
  • Advanced Wear-Leveling and Block Management
  • Low Power Consumption

Introduction

Apacer Industrial microSD H1-M series conforming to SD3.0 specification are designed with high performance, good reliability, wide compatibility, and through UHS-I, supporting speed class up to U3. The new microSD 3.0 card is capable of delivering better performance and P/E cycles by the latest firmware architecture including a powerful built-in Error Correction, Read Retry , Wear Leveling & Bad Block Management algorithms.



High-endurance memory cards, high-reliability assurance

Industrial-grade high-endurance microSDHC/XC memory cards are developed for security surveillance equipment that requires all-year-round uninterrupted data writing, ensuring high-quality images and data integrity required for long-lasting video recording. When using the 128GB ultra high capacity microSDXC memory card to record Full-HD in 20FPS, it can record for up to 20,000 hours; in loop recording, it can store 32 hours of video footage with automatic write-over.



Improved speed, enhanced access performance

Featuring Ultra High Speed Class 3 (U3) specification, Apacer microSD memory cards have maximum read/write speed of 75/65MB per second. Superb data transmission leads to high-resolution images and smooth recording. The memory cards also support ECC (Error Correcting Code) to automatically check data and provide timely error correction, preventing data loss and damage, and increasing data accuracy and integrity.

Spec
  • Model
    Industrial microSD H1-M
  • Interface
    SD 3.0
  • Form Factor
    microSD
  • NAND Flash Type
    MLC
  • Capacity
    4GB~128GB
  • Sequential Read Performance (MB/sec)
    Up to 75
  • Sequential Write Performance (MB/sec)
    Up to 65
  • ECC Engine
    Built-in 42-bit per 1K bytes BCH ECC
  • Standard Operating Temperature (°C )
    -25 ~ + 85
  • Extended Operating Temperature(°C )
    -40 ~ +85
  • Storage Temperature(°C )
    -40 ~ + 85
  • Shock
    (Operating)1,500G, 0.5ms
  • Vibration
    20Hz~80Hz/1.52mm (frequency/displacement)
    80Hz~2,000Hz/20G (frequency/accelerate)
  • Power Consumption
    Active mode: 155mA & Idle mode: 445 uA
  • Dimension (L x W x H )
    15.00 x 11.00 x1.00 (mm)
  • MTBF (hours)
    >3,000,000
