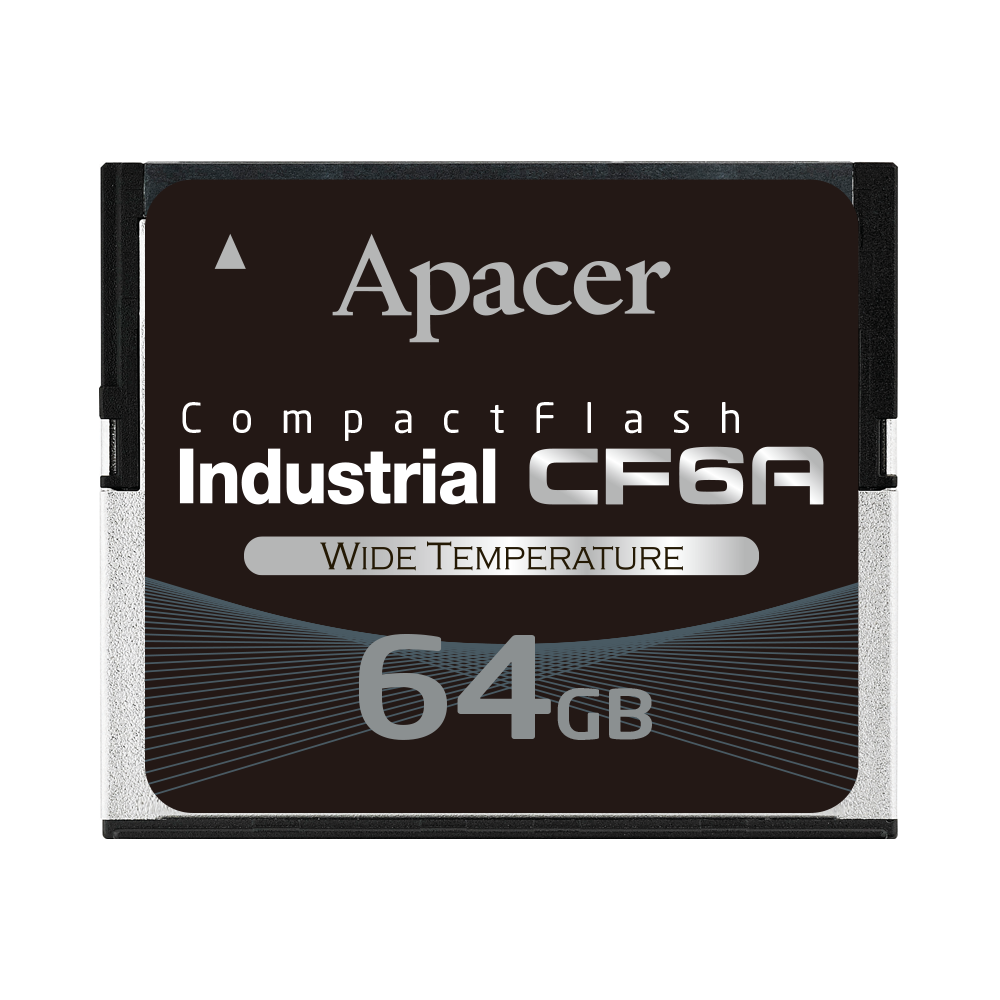

Industrial CF6A-M

Compliant with CFA 6.0 specifications
Write protect
Built-in ATA Secure Erase and S.M.A.R.T. Functions
Advanced wear-leveling and Block Management
Power Failure Management
Wide Temp.

Introduction

Apacer industrial CF6A-M card is compliant with the CFA 6.0 specifications. Apacer adopts the standard 50-pin connector and MLC chip lower cost and higher capacity for the card. It is available in capacities from 8GB to 64GB. The data transfer mode is up to PIO Mode 6 , Multiword DMA Mode 4 ,Ultra DMA Mode 7 , PCMCIA UDMA Mode 7, with the sequential read/write speed reaching as fast as 115/75 MB/sec. To help data stay correct, this CF6A-M memory card also supports 72-bit ECC function, wear-leveling function and S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology), thereby substantially enhancing product reliability.

Spec

Model

Industrial CF6A-M
Interface

PC Card Memory Mode; PC Card I/O Mode; True IDE Mode
Connector

50-pin female
Form Factor

CF
Transfer Mode

PIO Mode 6, Multiword DMA Mode 4, Ultra DMA Mode 7, PCMCIA UDMA Mode 7
NAND Flash Type

MLC
Capacity

8GB~64GB
Sequential Read Performance (MB/sec)

Up to 115
Sequential Write Performance (MB/sec)

Up to 75
ECC Engine

Built-in 72-bit per 1K bytes BCH ECC
Standard Operating Temperature ( °C )

0 ~ + 70
Extended Operating Temperature ( °C )

-40 ~ +85
Storage Temperature ( °C )

-40 ~ +100
H/W Write Protect

Yes
Shock

Operation: 50G, 11ms
Non-operation: 1500G, 0.5ms
Vibration

Operation: 7.69 Grms, 20~2000 Hz/random
(compliant with MIL-STD-810G)
Non-operation: 4.02 Grms, 15 ~ 2000 Hz/random
Operating Voltage

3.3 V / 5.0 V ± 5%
Power Consumption

Operating Voltage: 3.3V
– Active mode: 255 mA
– Standby mode: 10 mA

Operating Voltage: 5.0V
– Active mode: 260 mA
– Standby mode: 10 MA
Dimension (L x W x H )

36.40 x 42.80 x 3.30 mm
MTBF (hours)

>1,000,000
