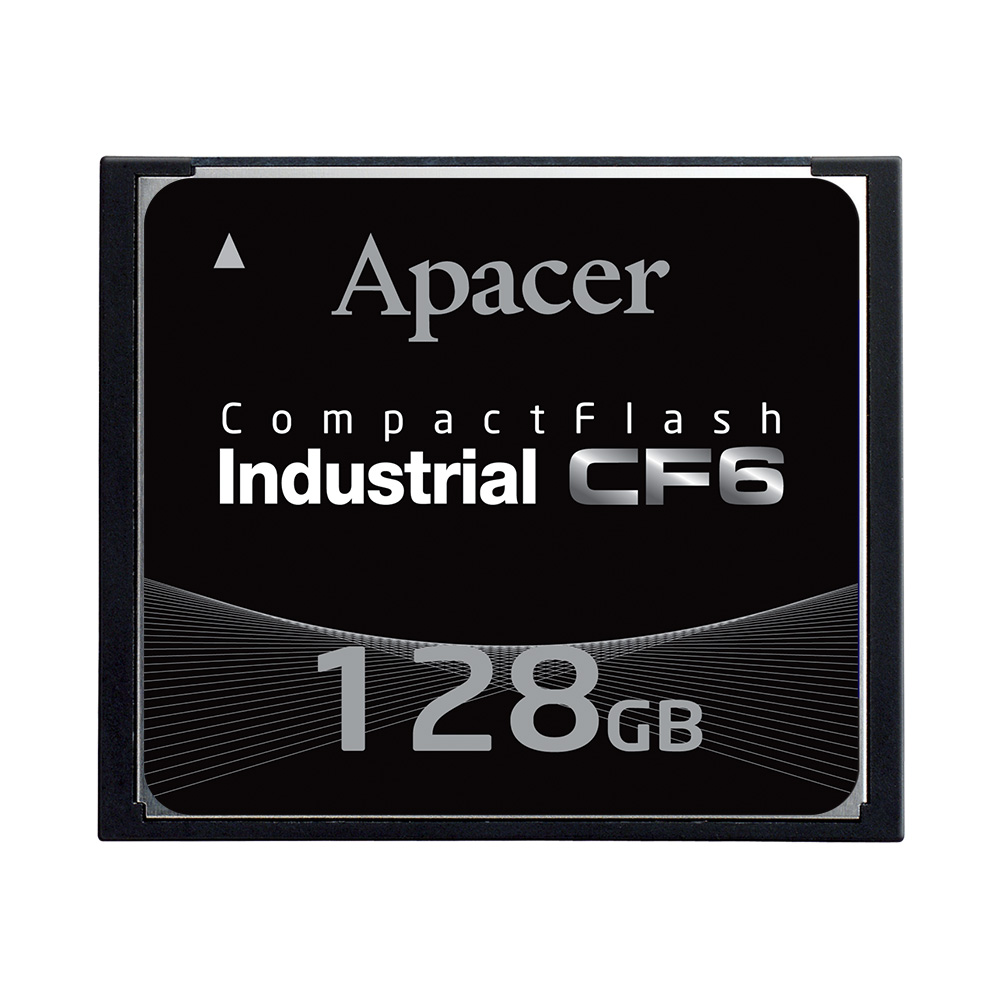

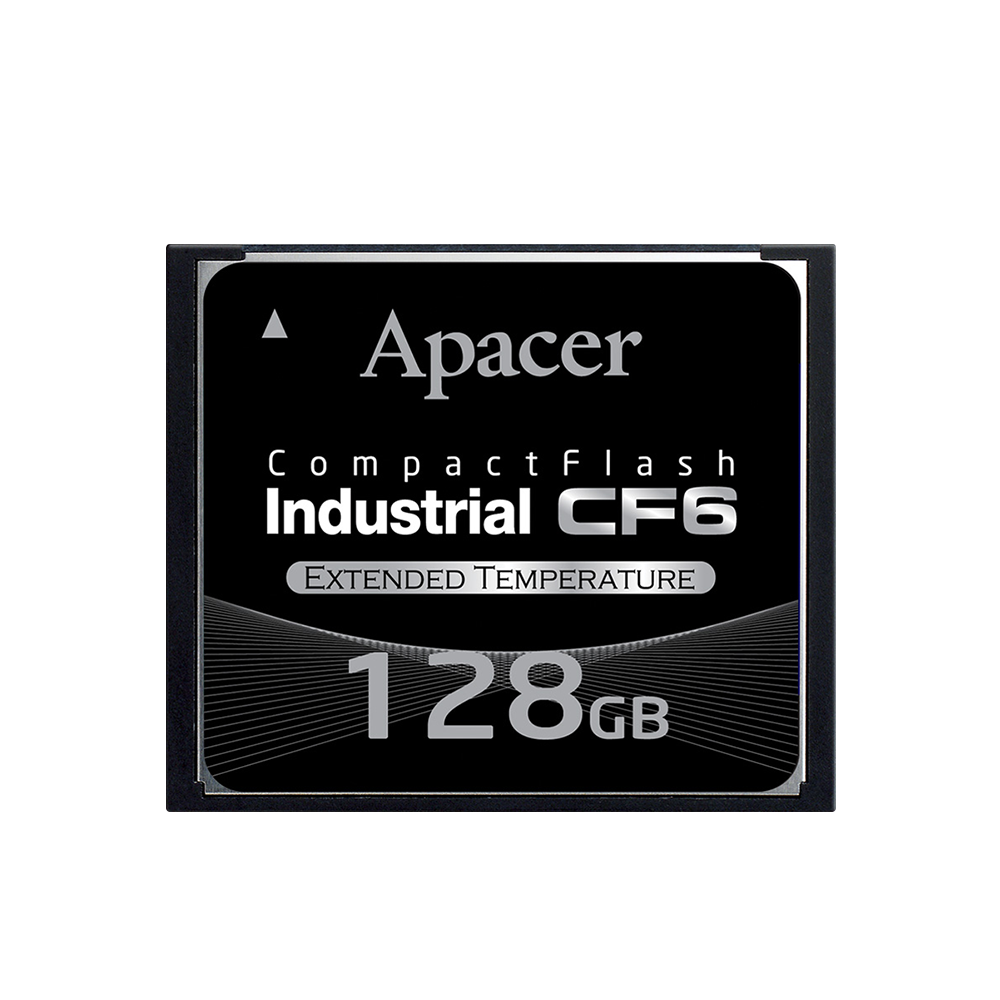

Industrial CF6 (MLC)

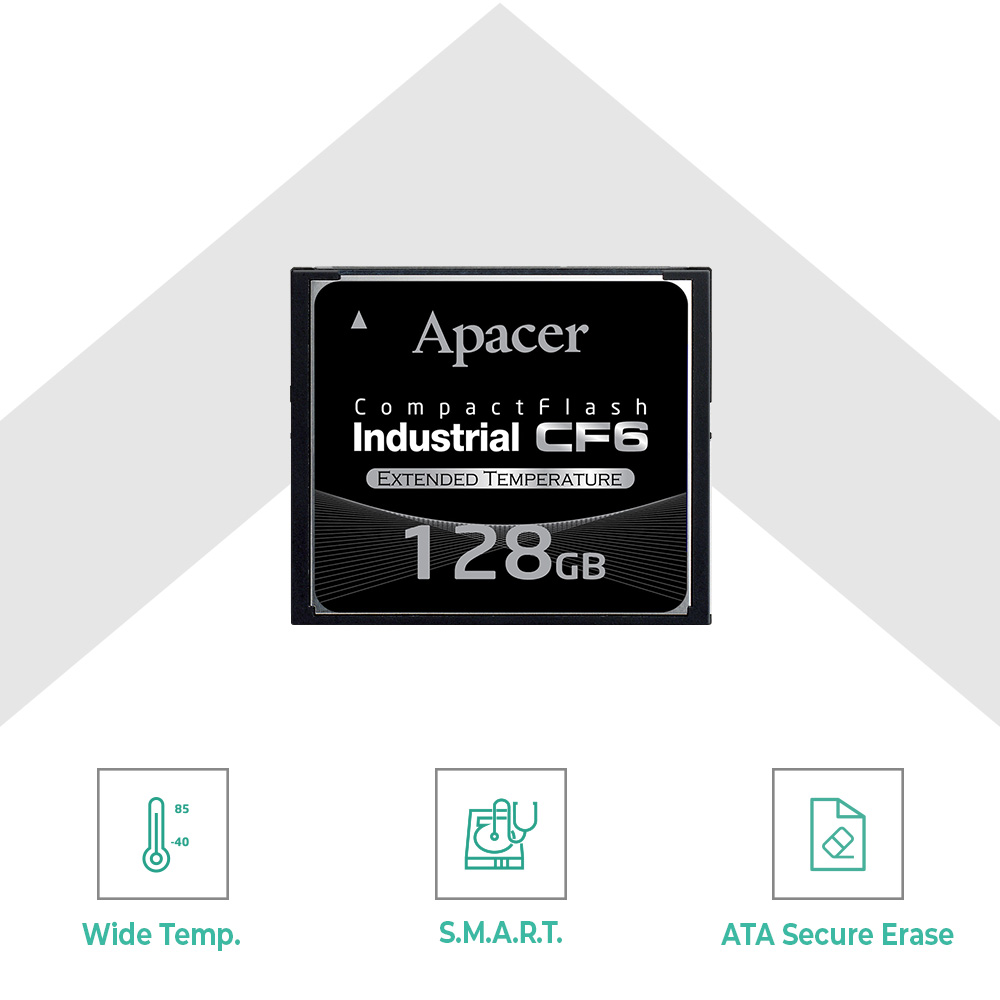

Built-in ATA Secure Erase and S.M.A.R.T. Functions
Advanced wear-leveling and Block Management
Power Failure Management
Wide Temp.

Introduction

Apacer CompactFlash 6 card is compliant with the CFA 6.0 specifications. Apacer adopts the standard 50-pin connector and MLC chip featuring lower cost and higher capacity for the card. It is available in capacities from 8GB to 128GB. The data transfer mode is up to PIO-6, Multi-Word DMA-4 and Ultra DMA-7 with the sequential read/write speed reaching as fast as 110/65 MB/sec. To help data stay correct, this CompactFlash 6 memory card also supports 72-bit ECC function, wear-leveling function and S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology), thereby substantially enhancing product reliability.
*The actual available memory on the device is less than what is listed on the package. This is due to small discrepancies in file formats and algorithms used by various operating systems. In addition, a portion of memory space is reserved for system files and data sectors for better performance.

Spec

Model

Industrial CF6 (MLC)
Interface

PC Card Memory Mode; PC Card I/O Mode; True IDE Mode
Connector

50-pin female
Form Factor

CF
Operation Mode

PIO Mode-6, MWDMA Mode-4, UDMA Mode-7
NAND Flash Type

MLC
Capacity

8GB~128GB
Sequential Read Performance (MB/sec)

Up to 110
Sequential Write Performance (MB/sec)

Up to 65
ECC Engine

Built-in 72-bit per 1K bytes BCH ECC
Standard Operating Temperature (°C )

0 ~ + 70
Extended Operating Temperature(°C )

-40 ~ +85
Storage Temperature(°C )

-40 ~ +100
H/W Write Protect

No
Shock

Operation: 50G, 11ms
Non-operation: 1500G, 0.5ms
Vibration

Operation: 7.69 Grms, 20~2000 Hz/random
(compliant with MIL-STD-810G)
Non-operation: 15 G, 10 ~ 2000 Hz/sine
Operating Voltage

3.3 V / 5.0 V ± 5%
Power Consumption

Operating Voltage: 3.3V
–Active mode: 260 mA
–Standby mode: 15 mA
Operating Voltage: 5.0V
–Active mode: 270 mA
–Standby mode: 15 mA
Dimension (L x W x H )

36.40 x 42.80 x 3.30 (mm)
MTBF (hours)

>1,000,000
