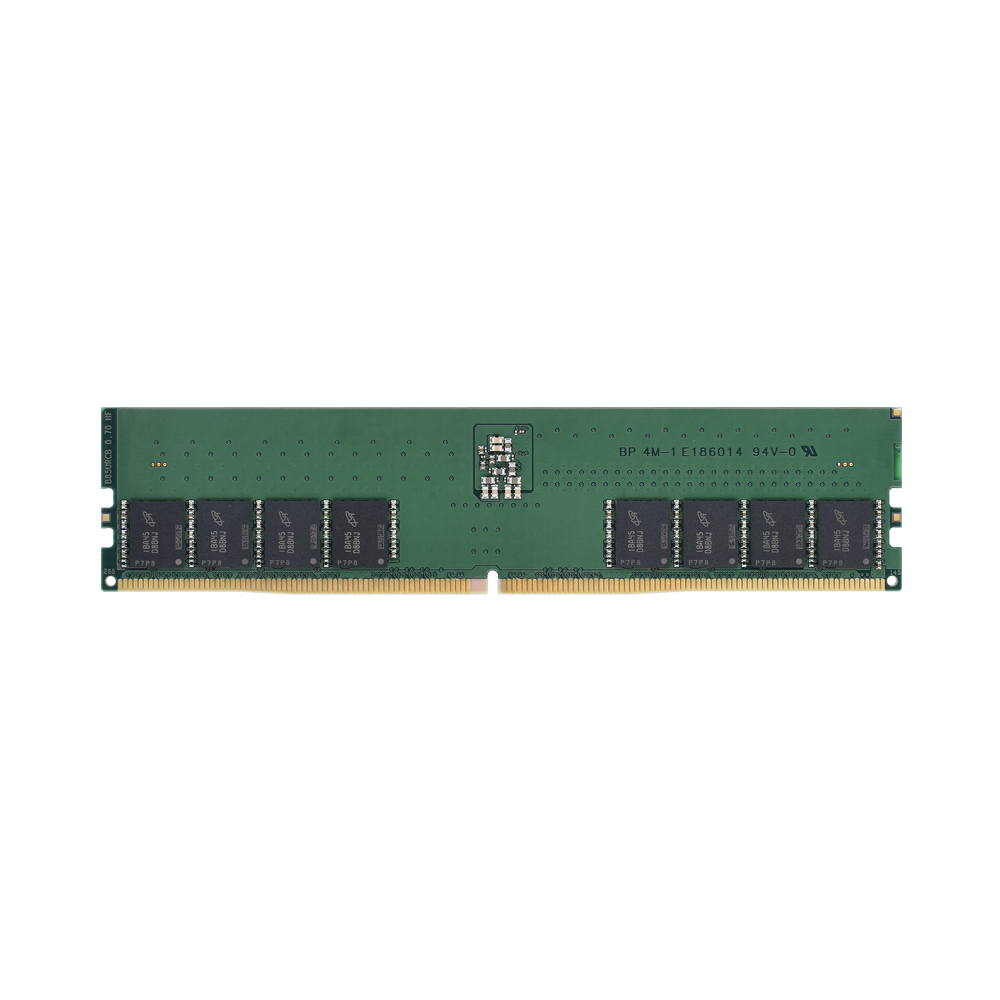

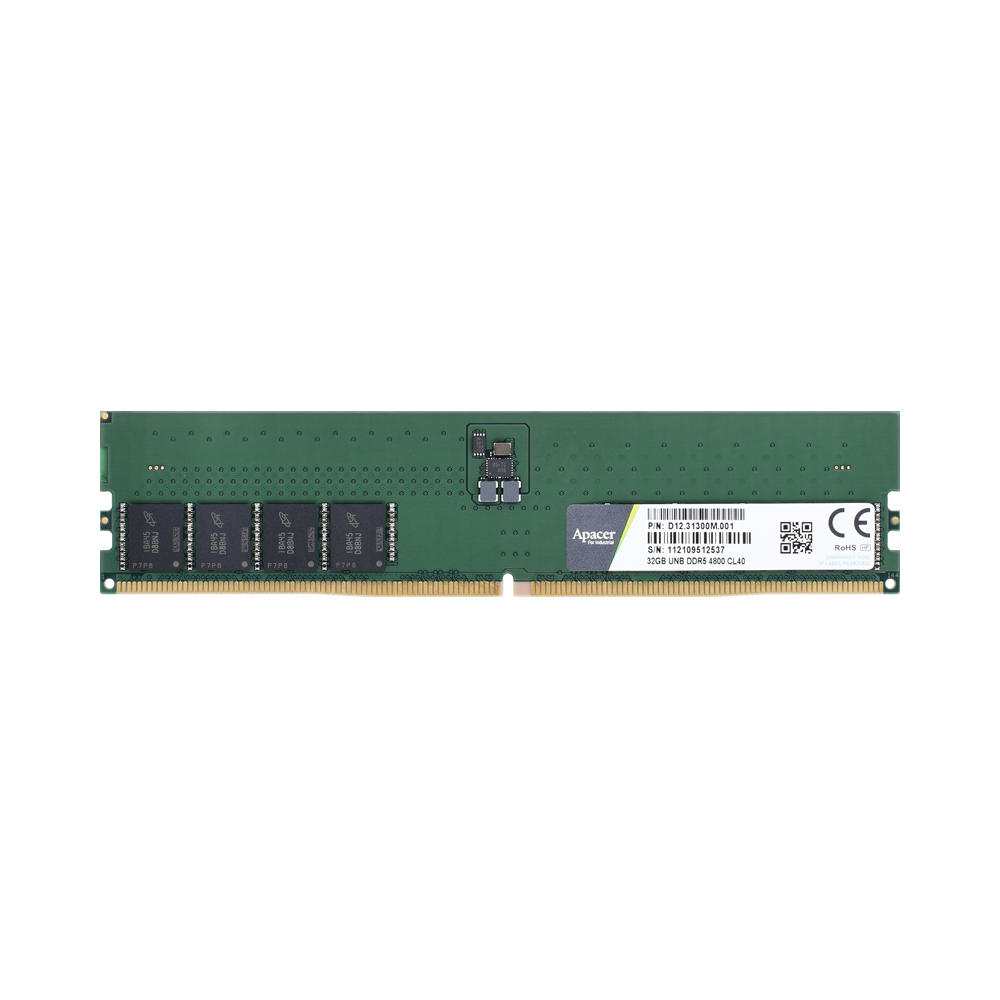

DDR5 UDIMM
DDR5 UDIMM
- The first fully lead-free memory module that avoids relying on RoHS 7(c)-I lead exemption clause
- Next-generation DDR5 UDIMM industrial-grade memory, memory transfer rate up to 5600 MT/s
- High-quality new-generation DDR5 DRAM chips from original DRAM manufacturers
- On-DIMM configuration power management IC, efficient control for system power load
- On-die ECC error correction mechanism to improve reliability
- 288-pin, DDR5 Unbuffered Dual Rank Memory Module (DDR5 UDIMM)
- VDD = VDDQ = 1.1V
- VPP = 1.8V
- 32 internal banks structure, 8 bank groups x 4 banks

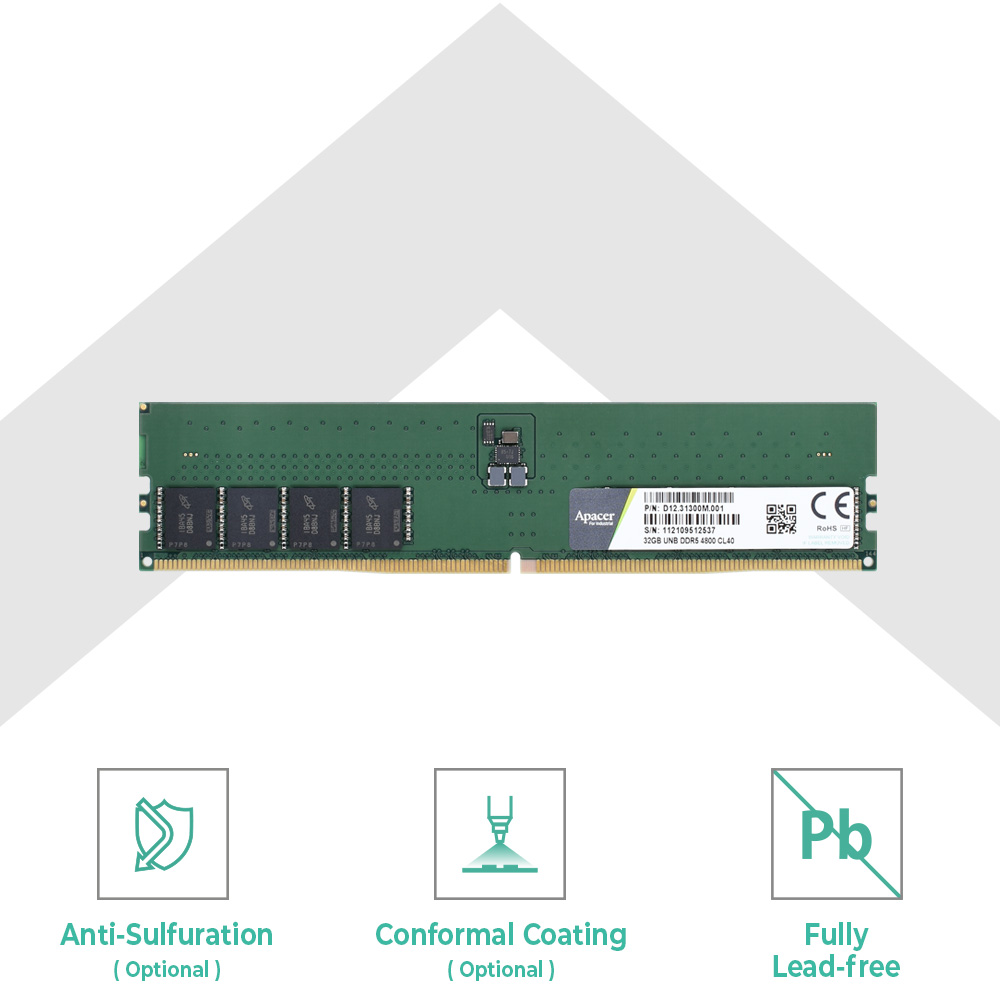

- Halogen free
- Conformal Coating / Underfill (optional)
- Anti-sulfurization (Apacer patent) (optional)
Apacer’s Fully Lead-free DDR5 UDIMM Industrial Memory Module employ original high-quality DRAM Ics, and feature memory transfer rates of up to 5600MHz. It not only exceeds the requirements of the current EU RoHS environmental protection standard, but also avoids relying on the RoHS 7(c)-I's lead exemption clause.
They incorporate an on-die ECC mechanism that greatly strengthens the reliability, availability and serviceability of the DRAM IC. On the other hand, Apacer's DDR5 modules incorporate a power management IC (PMIC) on the module itself to control the system’s load while also improving signal integrity and compatibility. Moreover, DDR5 modules require just 1.1V, which will translate into significant power savings and reduced heat generation. |
-
ModelDDR5 UDIMM
-
Module TypeUDIMM
-
Memory TechnologyDDR5
-
Speed4800/5600
-
Density8G/16G/32G
-
Voltage1.1v
-
Pin Count288-Pin
-
Width64-Bit
-
PCB Height1.23
-
Operating Temperature ( °C )TC=0℃ to 85℃
-
Fully Lead-Free ResistorYes
-
Value-added TechnologyThermal Sensor / 30μ Gold Finger
-
Recommended ApplicationGaming / Healthcare / Internet of Things / Factory Automation
