ECC UDIMM

DDR3 ECC UDIMM

ECC UDIMM

DDR3 ECC UDIMM

  • Support ECC error detection and correction
  • On-DIMM thermal sensor : Yes
  • Package: 240-pin socket type dual in-line memory module (ECC UDIMM)
  • PCB: height 30.0 mm, lead pitch 1.0 mm (pin)
  • Eight Internal banks for concurrent operation (components)
  • Supports auto pre-charge option for each burst access
  • Supports auto-refresh/self-refresh
  • Refresh cycles: 7.8 ㎲ at 0℃≦ TC ≦ +85℃
  • PCB: 30μ gold finger
  • Conformal Coating / Underfill (optional)
  • Anti-sulfuration (Apacer patented) (optional)

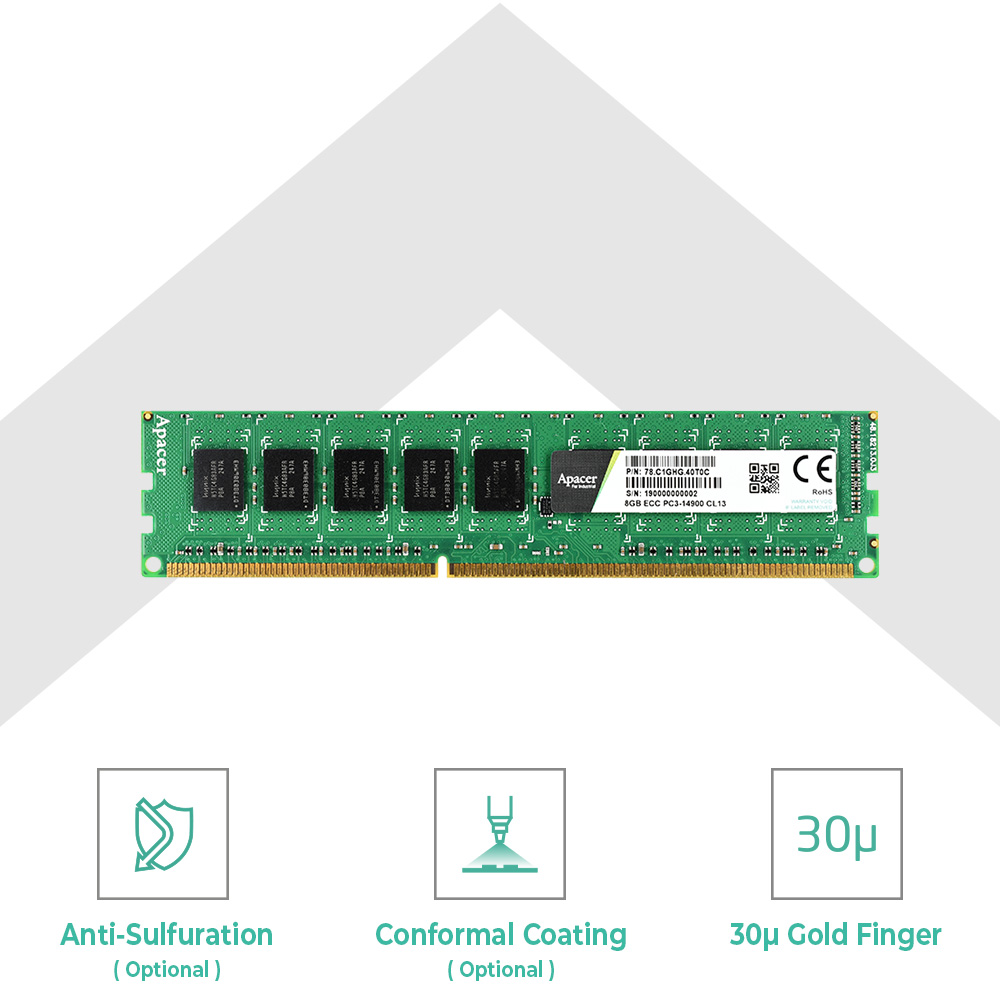

Introduction



ECC UDIMM (ECC Unbuffered DIMM) is a JEDEC-compliant module designed specifically for servers and workstations that require highly stable operation. Manufactured with the highest quality original DRAM chips, it supports ECC function to detect and correct data errors, and a built-in temperature-monitoring thermal sensor to prevent overheating and improve the memory module’s reliability.

Spec
  • Model
    DDR3 ECC UDIMM
  • Module Type
    ECC UDIMM
  • Memory Technology
    DDR3
  • Speed
    1066/1333/1600/1866
  • Density
    2GB/4GB/8GB/16GB
  • Voltage
    1.5v/1.35v
  • Pin Count
    240-Pin
  • Width
    72-Bit
  • PCB Height
    1.18"
  • Operating Temperature (°C)
    TC=0℃ to 85℃
  • Value-added Technology
    Thermal Sensor / 30μ Gold Finger
  • Recommended Application
    Factory Automation / Healthcare / Internet of Things / Server & Networking
