CUDIMM

DDR5 CUDIMM

  • Transfer rate of up to 6400 MT/s
  • Uses original high-quality next-generation DDR5 DRAM Ics
  • Equipped with power management IC (PMIC) (5V) on DIMM to efficiently control system power load
  • Client Clock Driver (CKD) and Transient Voltage Suppressors (TVS) diode are added to ensure the integrity and reliability of the module.
  • On-die ECC error correction mechanism improves reliability
  • 288-pin, DDR5 Clocked unbuffered dual in-line memory module (DDR5 CUDIMM)
  • VDD = VDDQ = 1.1V
  • VPP = 1.8V
  • 32 internal banks; 8 groups of 4 banks each

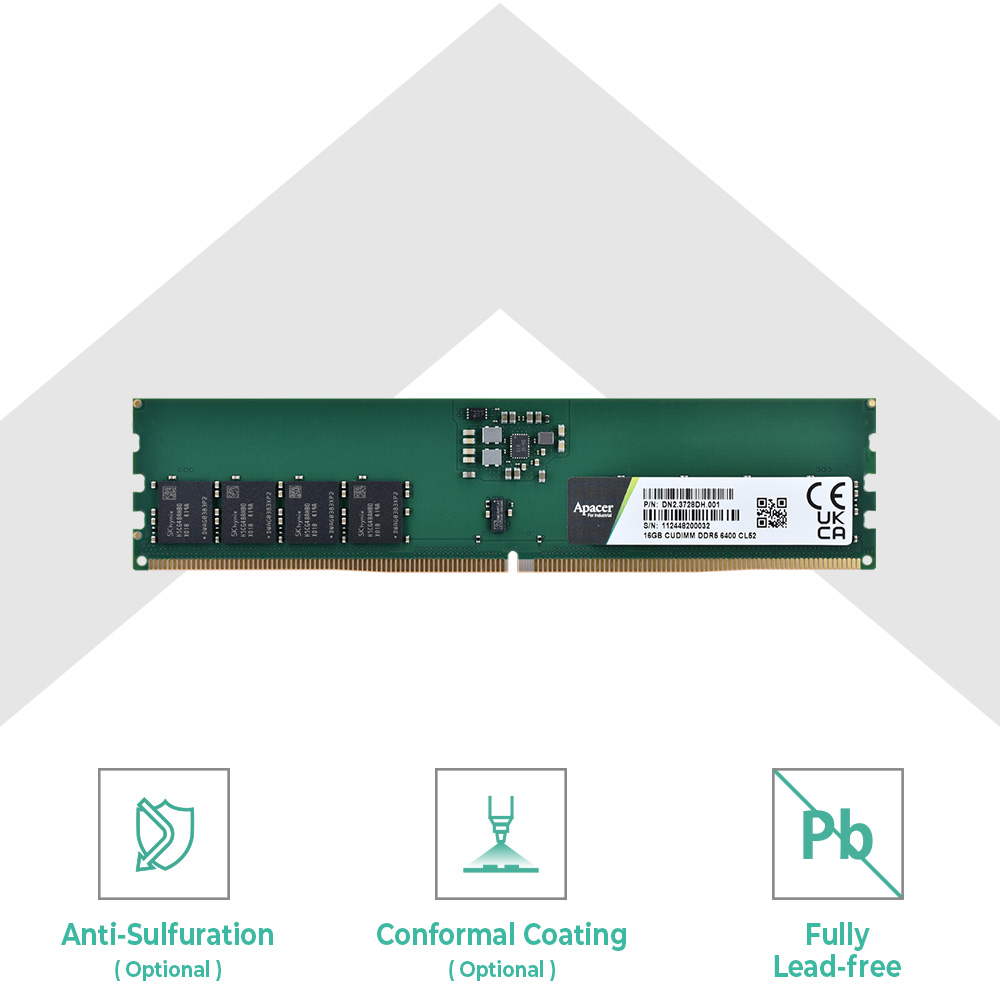

  • Fully Lead-free (RoHS compliant without exemptions)
  • Conformal Coating / Underfill (optional)
  • Anti-sulfuration (Apacer patented) (optional)

Industrial-Grade DDR5 CUDIMM Memory Modules: Fully Lead-Free Innovation for High-Performance Applications



Apacer’s industrial-grade DDR5 CUDIMM memory modules are the first to feature a fully lead-free resistor design, setting a new standard for environmental compliance by eliminating the need for EU RoHS directive exemptions. Equipped with premium professional-grade Clock Driver (CKD) components and Transient Voltage Suppressors (TVS) diode as dual-core technologies, the industrial memory modules are specifically engineered for high-performance computing (HPC) and artificial intelligence (AI) applications.



For industrial environments demanding unparalleled stability and reliability, DDR5 CUDIMM integrates premium industrial-grade CKD components. These components deliver exceptional signal driving and buffering capabilities, reducing noise and jitter during high-speed operations to significantly enhance data transmission accuracy and system stability. The advanced TVS design provides robust protection against transient voltage fluctuations, safeguarding both the module and critical system components. This makes DDR5 CUDIMM particularly suited for high-risk scenarios like industrial automation.



Additionally, Apacer DDR5 CUDIMM features on-die ECC (Error Correction Code) technology, ensuring superior reliability, availability, and serviceability. The inclusion of a power management IC (PMIC) on the module optimizes load control, improving signal integrity and system compatibility. With a low operating voltage of 1.1V, these modules also offer substantial power savings and reduced heat generation, contributing to energy efficiency.



Compliant with JEDEC standards, Apacer CUDIMM (Clocked Unbuffered DIMM) memory modules are designed for a range of applications, including desktop computers, industrial computers, and embedded systems. Built with high-quality original DRAM chips and rigorously tested for quality and compatibility, these modules deliver exceptional performance, stability, and security. The leading DRAM module manufacturer - Apacer’s DDR5 CUDIMM modules provide enterprises with a reliable, eco-friendly, and high-performance memory solution, even in extreme industrial environments.






Spec
  • Model
    DDR5 CUDIMM
  • Module Type
    CUDIMM
  • Memory Technology
    DDR5
  • Speed
    6400
  • Density
    8GB/16GB/32GB
  • Voltage
    1.1v
  • Pin Count
    288-Pin
  • Width
    64-Bit
  • PCB Height
    1.23"
  • Operating Temperature (°C)
    TC=0℃ to 85℃
  • Fully Lead-Free Resistor
    Yes
  • Recommended Application
    Factory Automation / Gaming / Healthcare / Internet of Things
