Anti-Sulfuration RDIMM

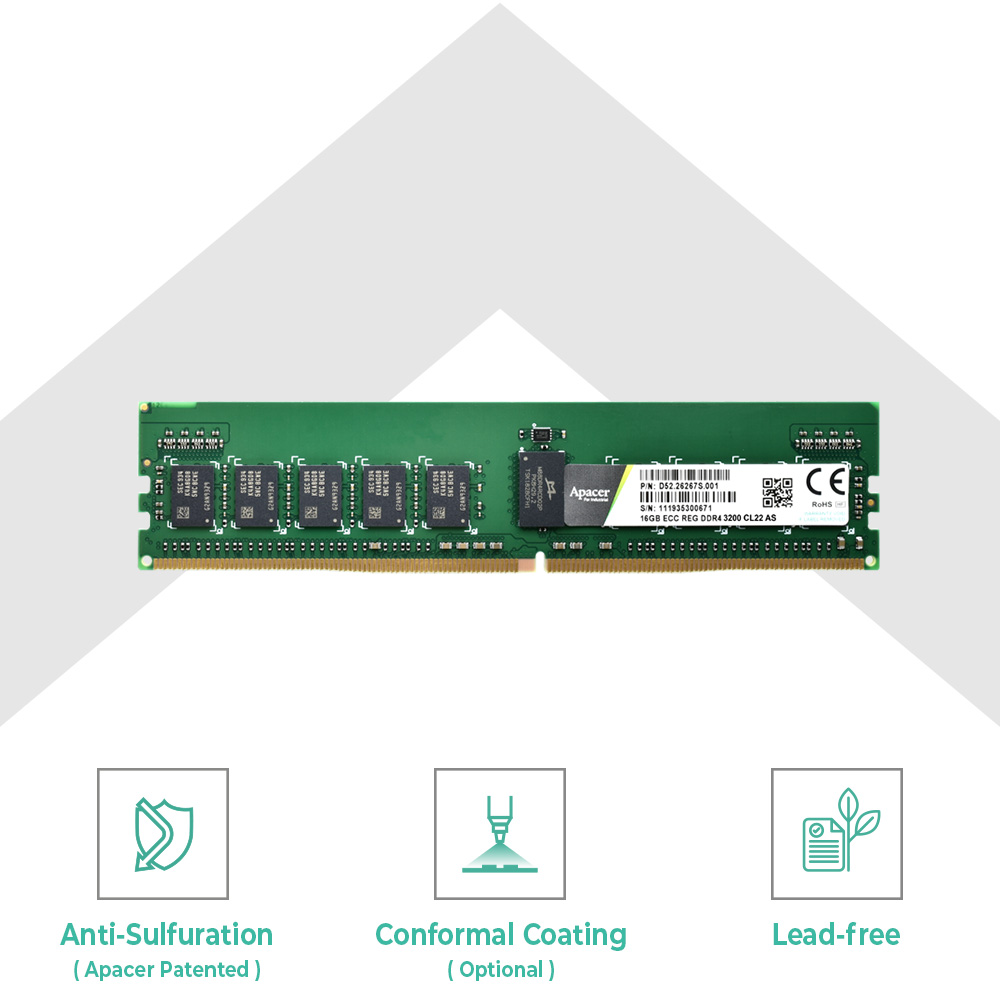

DDR4 Anti-Sulfuration RDIMM

Anti-Sulfuration RDIMM

DDR4 Anti-Sulfuration RDIMM

  • Support ECC error detection and correction
  • On-DIMM thermal sensor : Yes
  • Package: 288-pin socket type dual in-line memory module (REG DIMM)
  • 16 internal banks
  • VDDQ = 1.2V (1.14V to 1.26V)
  • TC of 0°C to 85°C
  • 64ms, 8192-cycle refresh at 0°C to 85°C
  • 32ms at 85°C to 95°C
  • Lead-free (RoHS compliant)
  • Halogen free
  • PCB: 30μ gold finger
  • Anti-Sulfuration (Apacer Patented)
  • Conformal Coating / Underfill (optional)

Introduction

Anti-sulfuration memory modules are mainly used in equipment exposed in highly contaminated environment, e.g. automobile, rugged system, medical, transport, networking and outdoor electronic products, and electronic equipment used in areas of high-concentration sulfur gas, e.g. volcano, hot spring and mine. Airborne sulfur-containing particles can easily react with silver used in the electrode to form silver sulfide which is non-conductive. As sulfuration increases, resistance value will also increase, eventually causing an open circuit. To solve the problem of resistor sulfuration, Apacer has developed the world’s first anti-sulfuration memory module for use in a sulfur-rich environment and this innovative design is now patented.





Spec
  • Model
    DDR4 Anti-Sulfuration RDIMM
  • Module Type
    Anti-Sulfuration RDIMM
  • Memory Technology
    DDR4
  • Speed
    2133/2400/2666/2933/3200
  • Density
    4GB/8GB/16GB/32GB
  • Voltage
    1.2v
  • Pin Count
    288-Pin
  • Width
    72-Bit
  • PCB Height
    1.23"
  • Operating Temperature (°C)
    TC=0℃ to 85℃
  • Value-added Technology
    Anti-Sulfuration / Thermal Sensor / 30μ Gold Finger
  • Recommended Application
    Rugged System / Factory Automation / Healthcare / Internet of Things / Server & Networking / Transportation
