DDR4 32-Bit SODIMM
32-Bit
DDR4 32-Bit SODIMM
- On-DIMM thermal sensor : No
- Package: 260-pin socket type small outline dual in-line memory module (32bits SO-DIMM)
- PCB: height 30.00 mm, lead pitch 0.50 mm (pin)
- VDDQ = 1.2V (1.14V to 1.26V)
- Average refresh period
- 7.8us at 0°C ≦TC ≦85°C
- 3.9us at 85°C ≦TC≦ 95°C
- Lead-free (RoHS compliant)
- Halogen free
- Width: 32-Bit
- Conformal Coating / Underfill (optional)
- Anti-sulfuration (Apacer patented) (optional)
|
Introduction |

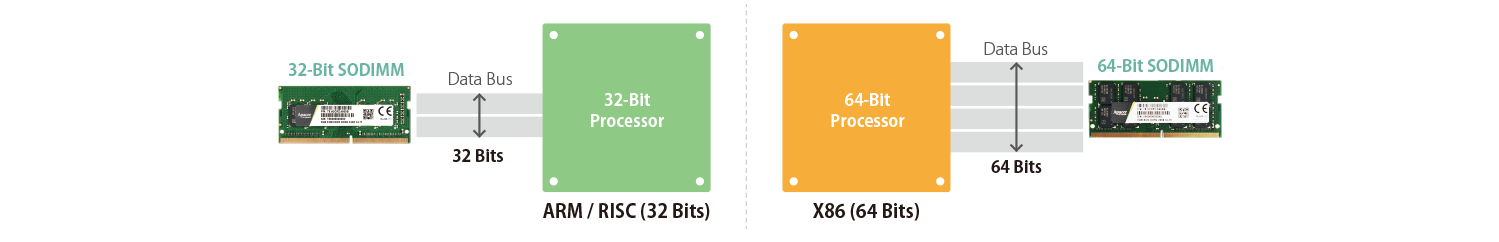

32-Bit SODIMM mainly supports the ARM architecture. Due to its superb energy efficiency, ARM processor is widely used in the networking, vehicular, mobile communication and embedded device markets. Unlike the 64-bit memory module that supports x86 system, the unique 32-bit SODIMM provides the 32-bit ARM architecture with another design option besides on-board memory.
|
|
Spec
-
ModelDDR4 32-Bit SODIMM
-
Module Type32-Bits SODIMM
-
Memory TechnologyDDR4
-
Speed2133/2400
-
Density2GB/4GB/8GB
-
Voltage1.2v
-
Pin Count260-Pin
-
Width32-Bit
-
PCB Height1.18"
-
Operating Temperature (°C)TC=0℃ to 85℃
-
Recommended ApplicationInternet of Things / Transportation
