32-Bit

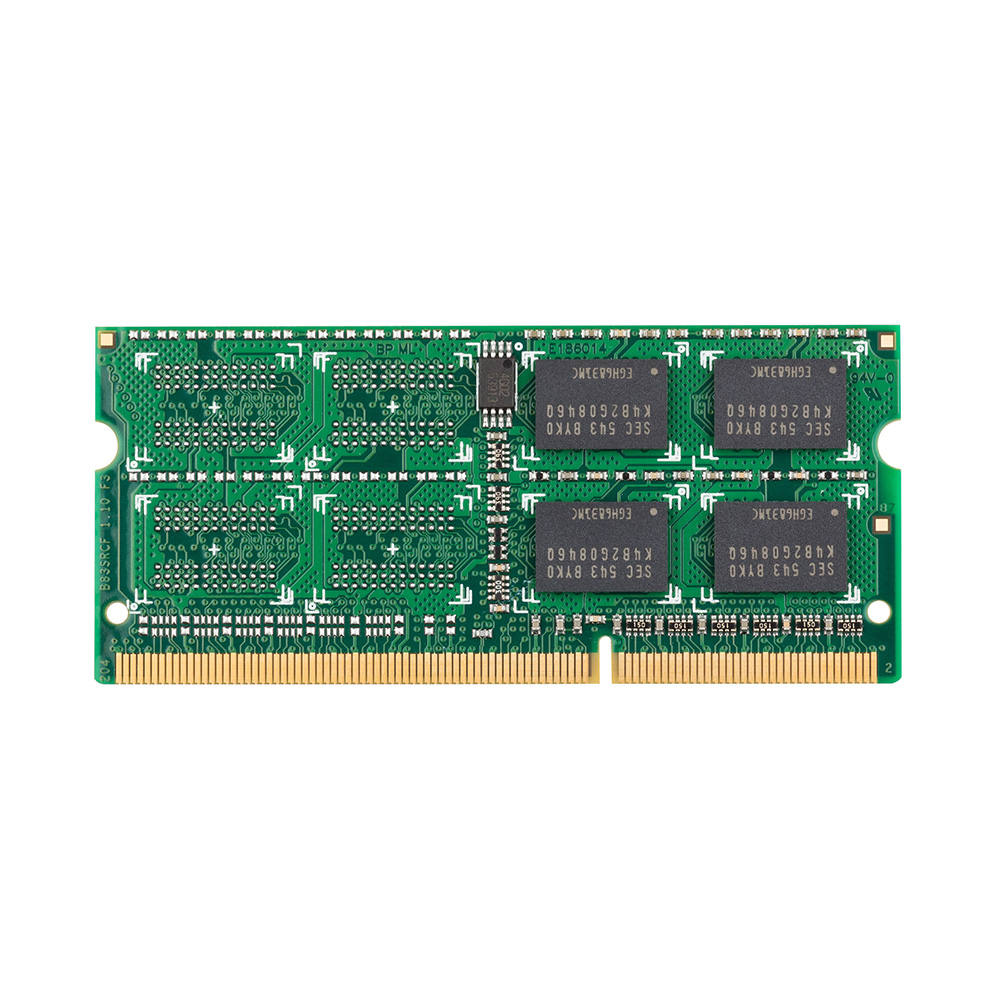

DDR3 32-Bit SODIMM

32-Bit

DDR3 32-Bit SODIMM

  • On-DIMM thermal sensor : No
  • Package: 204-pin socket type small outline dual in-line memory module (32bits SO-DIMM)
  • PCB: height 30.0mm, lead pitch 0.6 mm (pin)
  • Power supply VDD: 1.5V ± 0.075V
  • Eight Internal banks for concurrent operation (components)
  • Burst lengths (BL): 8 and 4 with Burst Chop (BC)
  • Supports auto pre-charge option for each burst access
  • Supports auto-refresh/self-refresh
  • Refresh cycles: 7.8 ㎲ at 0℃≤ TC ≤ +85℃
  • Width: 32-Bit
  • Conformal Coating / Underfill (optional)

Introduction

32-Bit SODIMM mainly supports the ARM architecture. Due to its superb energy efficiency, ARM processor is widely used in the networking, vehicular, mobile communication and embedded device markets. Unlike the 64-bit memory module that supports x86 system, the unique 32-bit SODIMM provides the 32-bit ARM architecture with another design option besides on-board memory.




  • Anti-sulfuration (Apacer patented) (optional)
Spec
  • Model
    DDR3 32-Bit SODIMM
  • Module Type
    32-Bits SODIMM
  • Memory Technology
    DDR3
  • Speed
    800/1066/1333
  • Density
    1GB/2GB/4GB
  • Voltage
    1.5v
  • Pin Count
    204-Pin
  • Width
    32-Bit
  • PCB Height
    1.18"
  • Operating Temperature (°C)
    TC=0℃ to 85℃
  • Recommended Application
    Internet of Things / Transportation
