Commercial Extended Temperature

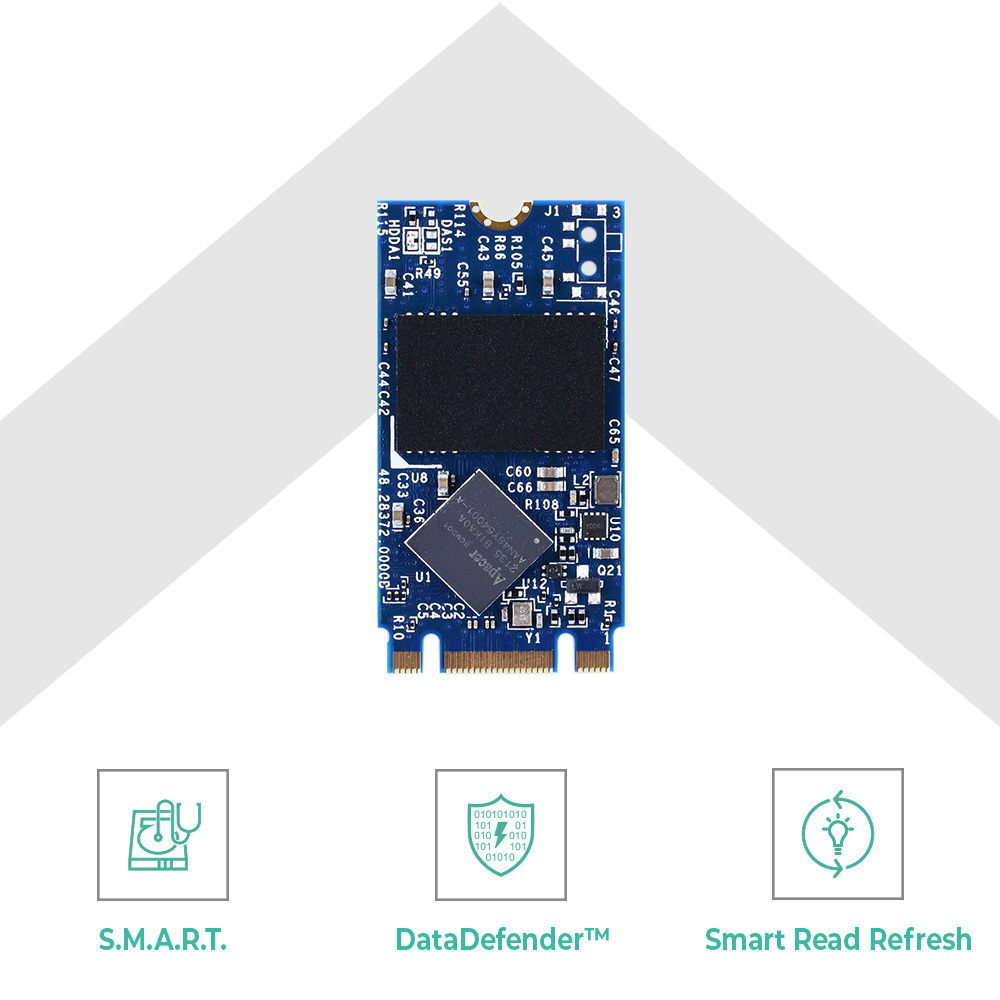

ST250-M242 Commercial Extended Temperature

Commercial Extended Temperature

ST250-M242 Commercial Extended Temperature

  • Low-Density Parity-Check (LDPC) Code
  • Global Wear-leveling
  • Flash Bad-block Management
  • End-to-End Data Protection
  • Flash Translation Layer: Page Mapping
  • S.M.A.R.T.
  • DataDefender™
  • ATA Secure Erase
  • TRIM
  • Hyper Cache Technology
  • SMART Read Refresh™
  • Device Sleep
  • SATA Power Management

Wider Temperature Support to Keep Best Performance —

ST250-M242 CET Doesn't Compromise Any.



Having demand on wider temperature support on storage devices, but worrying might go over your budget? Apacer’s ST250-M242 CET (Commercial Extended Temperature) is designed to meet the growing demands of applications requiring extended temperature range with affordable budget. Built with full compliance to SATA 6 Gb/s interface, delivering exceptional read and write speeds that keep your systems running efficiently under extended temperature range support.



Its compact M.2 2242 form factor fits seamlessly into space-constrained devices across industries, making it a popular choice for embedded systems, industrial PCs or host computing systems. Whether you're operating normal or demanding environment, the ST250-M242 CET ensures smooth operation and reliability—don't let temperature to slow you down.



Enhance reliability with Apacer’s tailored storage solutions:

  • Wider Temperature Range Support: Extend temperature support from -25°C to 85°C to ensure system reliability.
  • Power Efficiency: Utilize 3D NAND Technology offering greater power efficiency than 2D NAND.
  • Enhanced Security: Equipped with Advanced Encryption Standard (AES) to safeguard against unauthorized access.
  • Optimal Affordability: Offer cost and performance balanced solution.



Equipped with advanced technologies support:

  • Low-Density Parity-Check (LDPC) Code: Enhance SSD endurance and data reliability.
  • Global Wear-leveling Technology: Ensure having lower erase counts to extend SSD lifespan.
  • Flash Bad-block Management: Manage cell blocks that fail over time.
  • End-to-End Data Protection: Protect sensitive data with comprehensive security.
  • Others: Page Mapping, S.M.A.R.T., DataDefender, ATA Secure Erase, TRIM, Hyper Cache Technology, SMART Read Refresh, Device Sleep and power saving modes.



ST250-M242 CET offers you an excellent storage solution for supporting wider temperature range and enhancing reliability with affordability. Also, it is the ideal storage or cache solution for a variety of applications, including IoT, factory automation, healthcare and gaming.

规格表
  • 型号
    ST250-M242 Commercial Extended Temperature
  • 介面
    SATA 3.2 (6Gb/s)
  • 接口
    75-pin SATA-based M.2 module pinout
  • 板型
    Double-sided M.2 2242-D5-B-M
  • NAND 颗粒
    3D TLC
  • 容量
    128GB~1TB
  • 外置DRAM
    No
  • 读取速度(MB/sec)
    Up to 555
  • 写入速度(MB/sec)
    Up to 505
  • ECC纠错功能
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4K 随机写入)
    68K
  • 标准作业温度(°C)
    CET: -25°C ~ 85°C
  • 放置温度(°C)
    -55°C ~ 100°C
  • 温度感测功能
    Yes
  • 冲击耐力
    Operation: 50G, 11ms
    Non-operation: 1500G, 0.5ms (Compliant with MIL-STD-883K)
  • 震动耐力
    Operation: 7.69 GRMS, 20~2000 Hz/random (Compliant with MIL-STD-810G)
    Non-operation: 4.02 GRMS, 15~2000 Hz/random (Compliant with MIL-STD-810G)
  • 电压
    3.3 V ± 5%
  • 用电量
    Active Mode: 400 mA; Idle Mode: 65 mA
  • 尺寸 (L x W x H )
    42.00 x 22.00 x 3.80, unit: mm
  • MTBF (小时)
    >3,000,000
