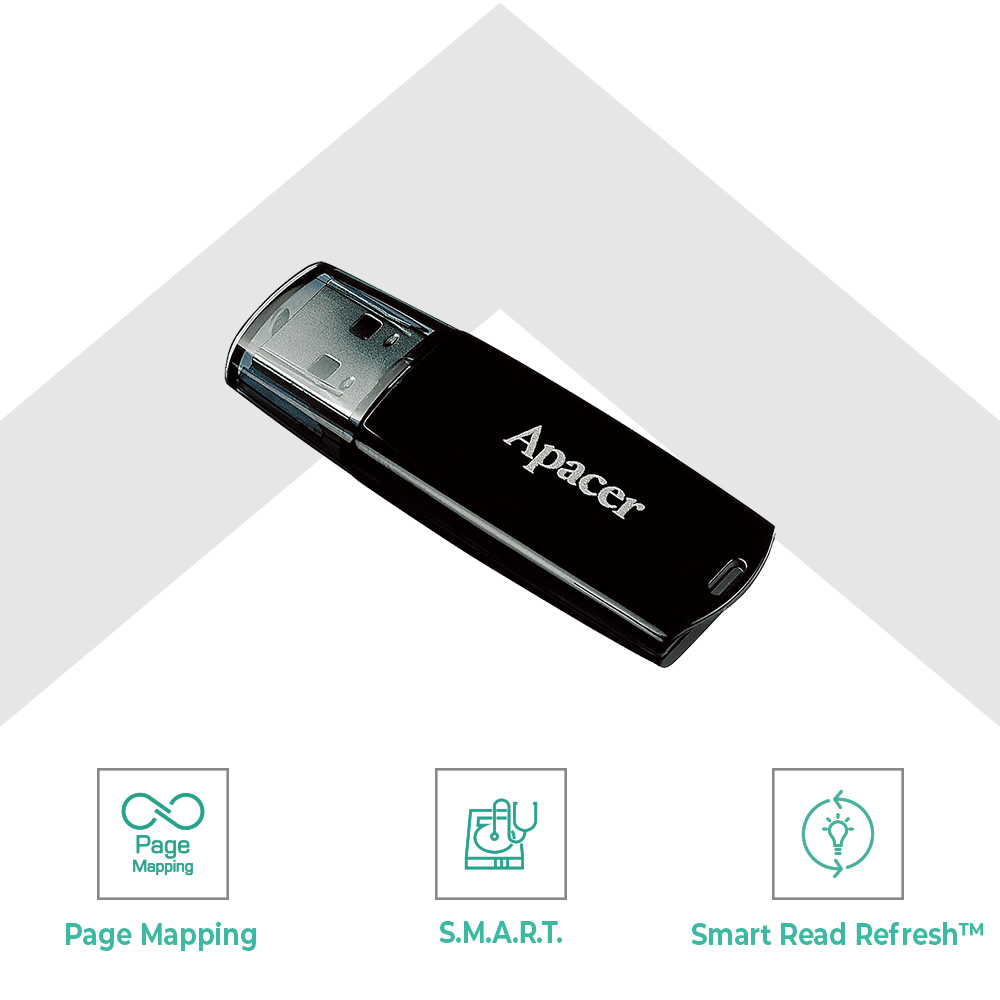

AH322-M WORM
AH322-M WORM
- Write Once Read Many
- Built-in advanced ECC algorithm
- Global Wear Leveling
- Flash bad-block management
- Power Failure Management
- S.M.A.R.T.
- Smart Read Refresh™
Industrial USB: AH322-M WORM Drive
Apacer industrial AH322-M WORM (Write Once Read Many) Drive is a solid-state Flash memory product that provides data storage protection by allowing data to be written once, preventing it from being erased, modified, or overwritten. This write protection function ensures that the data cannot be tampered with once it is written to the device.
Apacer AH322-M WORM Drive is compatible with USB 2.0 standard and designed to plug in directly to USB-A receptacles. With flash management including bad block management, built-in ECC, global wear leveling, S.M.A.R.T., power failure management, and SMART Read Refresh™, Apacer AH322-M WORM Drive serves as an ideal portable storage solution for rugged and embedded applications ranging from industrial, computing to enterprise markets.
-
型号AH322-M WORM
-
介面USB 2.0
-
接口USB Type A Plug
-
板型USB flash drive
-
NAND 颗粒MLC
-
容量8GB~32GB
-
外置DRAMNo
-
读取速度(MB/sec)Up to 38
-
写入速度(MB/sec)Up to 19
-
ECC纠错功能Built-in 43-bit per 1K bytes BCH ECC
-
最高作业温度(°C)-40 ~ + 85
-
放置温度(°C)-50 ~ + 95
-
外壳Yes
-
硬件写保护No
-
冲击耐力Operation: Acceleration, 50(G)/11(ms)/half sine
(compliant with MIL-STD-202G
Non-operation: Acceleration, 1500(G)/0.5(ms)/half sine
(compliant with MIL-STD-883K) -
震动耐力Operation: 7.69 Grms, 20~2000 Hz/random
(compliant with MIL-STD-810G)
Non-operation: 4.02 Grms, 15~2000 Hz/random
(compliant with MIL-STD-810G) -
电压5.0 V ± 5%
-
用电量Active mode: 200 mA; Idle mode: 60 mA
-
尺寸 (L x W x H )55.29 x 18.00 x 8.50 (mm)
-
MTBF (小时)>3,000,000
