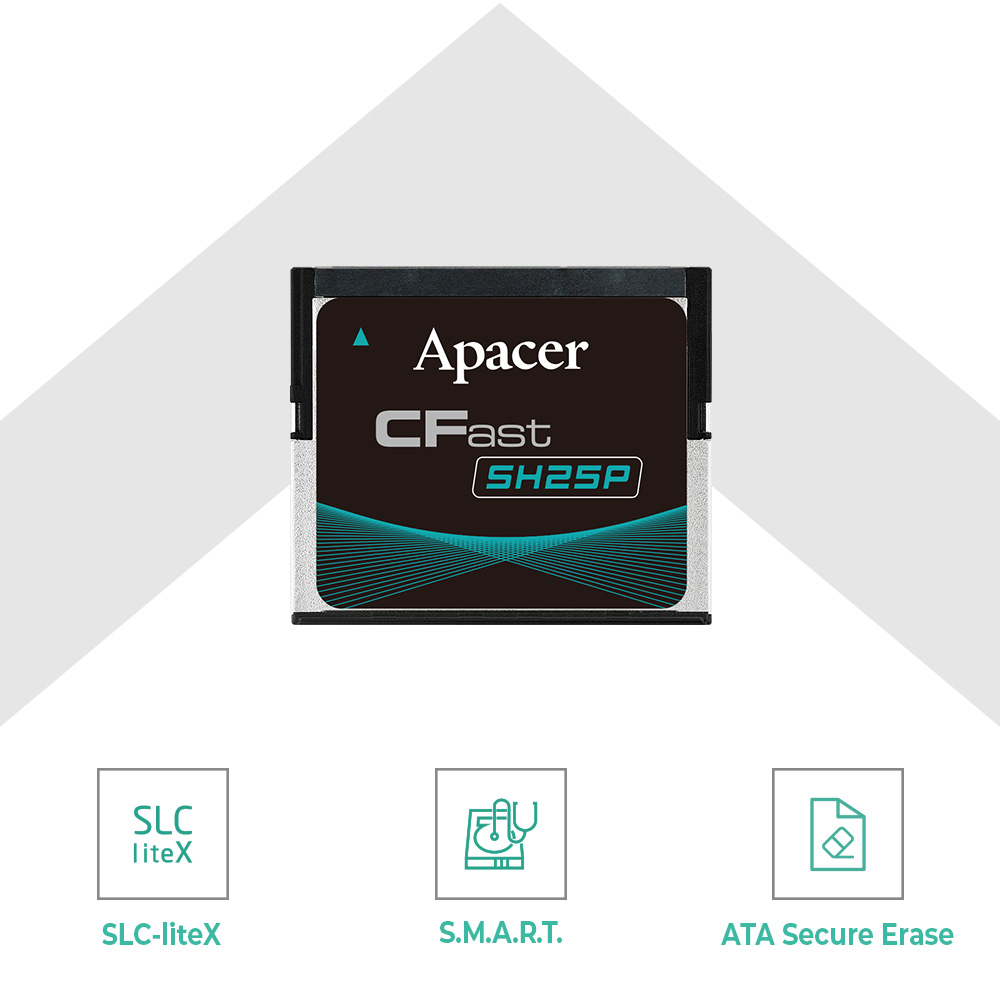

SH25P-CFast
SH25P-CFast
- Low-Density Parity-Check (LDPC) Code
- Global Wear Leveling
- Flash bad-block management
- Flash Translation Layer: Page Mapping
- S.M.A.R.T.
- Device Sleep
- ATA Secure Erase
- TRIM
- SLC-liteX (P/E cycles: 100K)
- DataRAID
- SMART Read Refresh
- SATA Power Management
Apacer's SH25P-CFast represents a significant advancement in the conventional CFast form factor, offering a range of technological enhancements. This cutting-edge flash memory card is equipped with a SATA 6 Gb/s interface, providing exceptional performance with sequential access data transfer rates of up to 560 MB/s and 69,000 IOPS in 4KB random access. Its design incorporates a SATA-based 7-pin signal segment alongside a 17-pin interface for power and control functions.
Utilizing 3D NAND technology to offer expanded capacity of up to 320GB and boasting superior power efficiency compared to 2D NAND, SH25P-CFast ensures the reliability of applications even in harsh environments. It achieves this through the implementation of intelligent flash management algorithms, an LDPC (Low Density Parity Check) ECC engine, and SLC-liteX technology, extending SSD endurance with P/E cycles of up to 100,000 times and enhancing data reliability.
Featuring CorePower technology, SH25P-CFast guarantees the integrity and stability of data transmission in the event of an unexpected power loss. This is achieved through a backup power supply featuring tantalum capacitors, allowing sufficient time to transfer all cached data to NAND flash. Additionally, SH25P-CFast is outfitted with a built-in thermal sensor to monitor SSD temperature via S.M.A.R.T commands, preventing overheating. For highly-intensive applications, End-to-End Data Protection ensures data integrity at multiple points along the data transfer path, enabling reliable delivery of data transfers.
Security-wise, Advanced Encryption Standard (AES) and Write Protect (optional) ensure data security and provide users with peace of mind knowing their data is safeguarded against unauthorized use at all times. SH25P-CFast also adopts the latest page mapping file translation layer and comes with various implementations including flash block management, wear leveling, TRIM, ATA secure erase, DataRAID, SMART Read Refresh, device sleep, and power saving modes.
With exceptional performance, trustable reliability, and enhanced data protection, SH25P-CFast is definitely the ideal storage or cache solution for a variety of applications ranging from industrial, imaging, computing to enterprise markets.
-
모델SH25P-CFast
-
인터페이스SATA 3.2 (6Gb/s)
-
커넥터(7+17) pin female
-
폼 팩터CFast
-
NAND 플래시 유형3D TLC
-
용량40GB~320GB
-
외장 DRAMNo
-
순차 읽기 성능(MB/초)Up to 560
-
순차적 쓰기 성능(MB/초)Up to 505
-
ECC 엔진Low-Density Parity-Check (LDPC) Code
-
IOPS(5K 랜덤 쓰기)69K
-
표준 작동 온도(°C )0°C to 70°C
-
확장된 작동 온도(°C)-40°C to 85°C
-
보관 온도(°C)-55°C to 100°C
-
열 센서Yes
-
충격Operation: 50G/11ms
(compliant with MIL-STD-202G)
Non-operation: 1500G/0.5ms
(compliant with MIL-STD-883K) -
진동Operation: 7.69 GRMS, 20~2000 Hz/random
(compliant with MIL-STD-810G)
Non-operation: 4.02 GRMS, 15~2000 Hz/random
(compliant with MIL-STD-810G) -
작동 전압3.3 V ± 5%
-
전력 소비Active mode: 385 mA / Idle mode: 70 mA
-
치수(L x W x H)42.80 x 36.45 x 3.60 mm
-
MTBF(시간)>3,000,000
