SS170-300
SS170-300
- Low-Density Parity-Check (LDPC) Code
- Global Wear-leveling
- Flash Bad Block Management
- Power Failure Management
- ATA Secure Erase
- Flash Translation Layer: Page Mapping
- TRIM
- S.M.A.R.T.
- SSDWidget

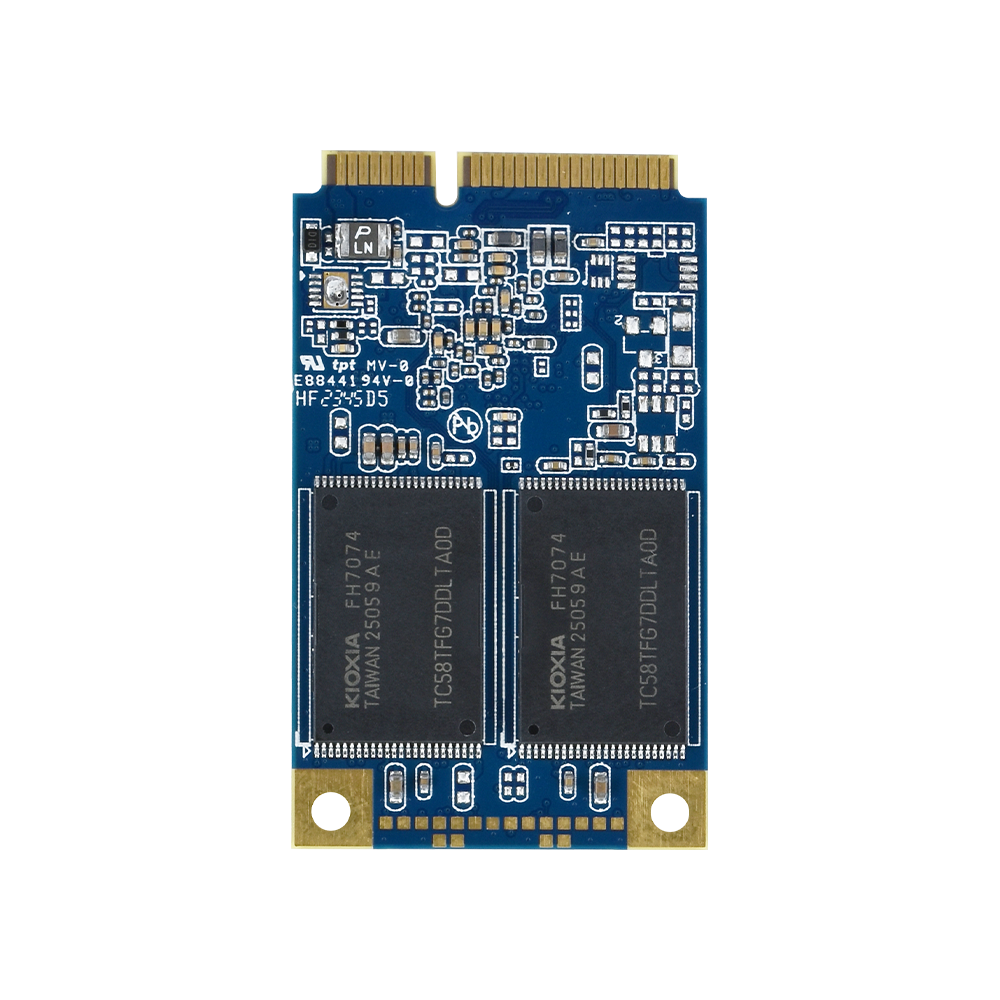

Apacer SS170-300 is a well-balanced solid-state disk (SSD) with a standard form factor and excellent performance. Designed with a SATA 6 Gb/s interface, SS170-300 fully complies with the latest SATA Revision 3.2 specifications and delivers exceptional read/write speeds, making it an ideal companion for demanding industrial or server operations.
SS170-300 is built with a powerful SATA controller that supports on-the-module ECC for error correction as well as efficient wear leveling scheme for extended lifespan. Additionally, SS170-300 is equipped with a built-in thermal sensor (available on the wide-temp model only) to monitor the temperature of the SSD via S.M.A.R.T commands to prevent overheating. Operating under 6 Gb/s interface, SS170-300 is provided with Apacer latest S.M.A.R.T. that is primarily oriented for the latest SATA interface SSD, for drive lifetime monitoring and analysis.
In terms of reliability, SS170-300 features End-to-End Data Protection to ensure data integrity across the entire transfer path, delivering reliable and secure data transmission. It also incorporates a range of advanced technologies, including bad block management, power failure management, ATA secure erase, page mapping, TRIM support, and power-saving modes.
With exceptional performance and enhanced reliability, SS170-300 is the ideal storage or cache solution for a variety of applications, including industrial, imaging, computing, and enterprise markets.
-
製品名SS170-300
-
接続インターフェースSATA III
-
コネクタ52-pin mSATA connector
-
形状JEDEC MO-300
-
NANDフラッシュタイプ2D SLC
-
容量8GB~64GB
-
外付けDRAMNo
-
シーケンシャルリード(MB/s)Up to 510
-
シーケンシャルライト(MB/s)Up to 310
-
ECC訂正能力Low-Density Parity-Check (LDPC) Code
-
IOPS (4Kランダム書き込み)65K
-
標準動作温度(°C )0 ~ 70
-
拡張動作温度(°C )-40 ~ 85
-
保存温度(°C)-55 ~ 100
-
耐衝撃性Operation: Acceleration, 50(G)/11(ms)/half sine
(Compliant with MIL-STD-202G)
Non-operation: Acceleration,1,500(G)/0.5(ms)/half sine
(Compliant with MIL-STD-883K) -
耐振動性Operation:7.69 Grms, 20~2000 Hz/random
(Compliant with MIL-STD-810G)
Non-operation:4.02 Grms, 15~2000 Hz/random
(Compliant with MIL-STD-810G) -
動作電圧3.3V ± 5%
-
消費電力Active Mode: 690 mA / Idle Mode: 110 mA
-
寸法 (長さ×幅×高さ)50.80 x 29.85 x 4.85(max.), unit: mm
-
MTBF (時間)>3,000,000
