M.2

PV230-M242 (B+M Key)

M.2

PV230-M242 (B+M Key)

Low-Density Parity-Check (LDPC) Code
Global Wear-leveling
Flash Bad-block Management
End-to-End Data Protection
Flash Translation Layer: Page Mapping

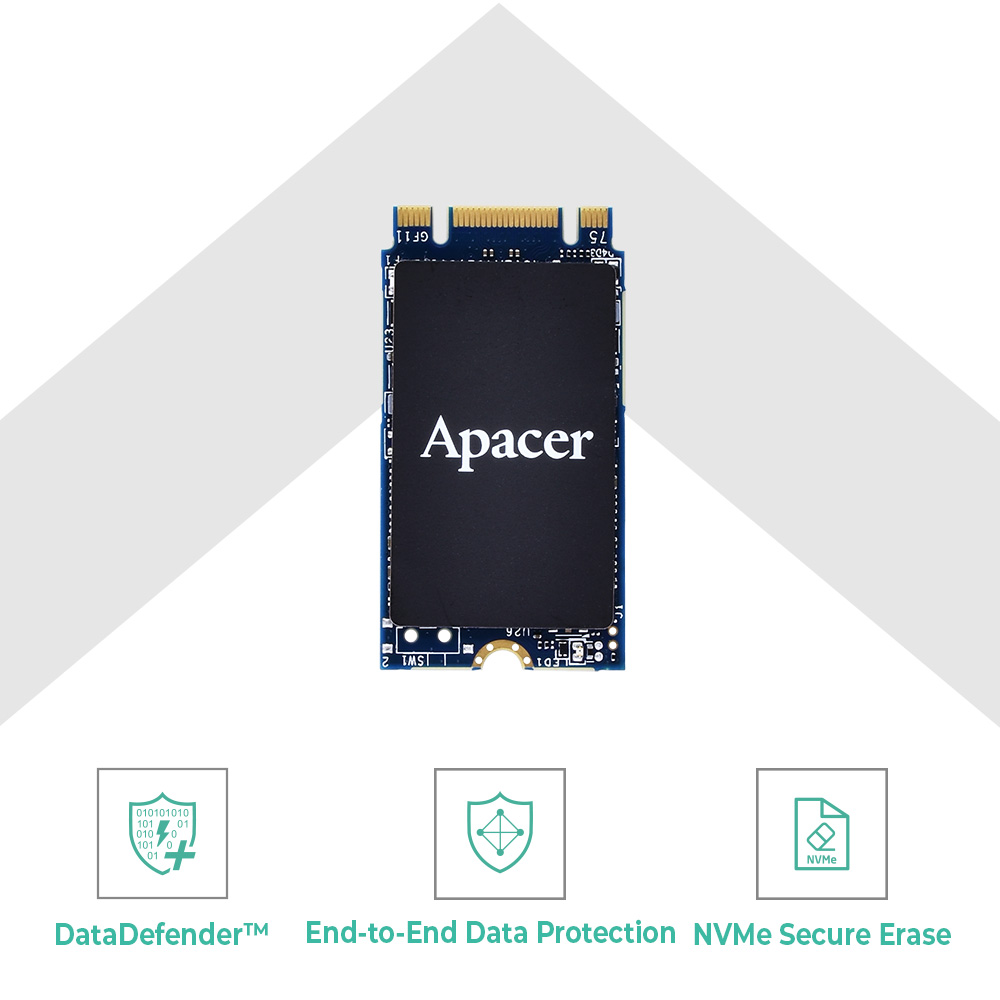

DataDefender™
TRIM
Hyper Cache Technology
DataRAID
Over-provisioning
SMART Read Refresh
NVMe Secure Erase

PV230-M242 Improves Power Efficiency and Stability

Apacer PV230-M242 offers full compliance with the PCIe Gen3 x2 interface and NVMe 1.3 specifications, delivering exceptionally low latency and outstanding data transfer performance. Its compact design and high-speed storage make it the ideal choice for larger and faster hosts deployed across a wide range of applications requiring top-tier performance.

Optimize performance with Apacer’s premium storage solutions:

Improved Power Efficiency: Utilize 3D NAND Technology and power management modes for greater power efficiency.
Ensure Stability: Equipped with Sidefill Technology, enabling stable operation even in environments with high vibration and extreme temperature fluctuations.
Enahnced Security: Equipped with AES and TCG Opal 2.0 (optional) to safeguard against unauthorized access.

Equipped with advanced technologies support:

Low-Density Parity-Check (LDPC) Code: Enhance SSD endurance and data reliability.
Global Wear-leveling Technology: Ensure having lower erase counts to extend SSD lifespan.
Flash Bad-block Management: Manage cell blocks that fail over time.
End-to-End Data Protection: Protect sensitive data with comprehensive security.
Others: Page Mapping, DataDefender, TRIM, Hyper Cache Technology, DataRAID, Over-provisioning, SMART Read Refresh, NVMe Secure Erase and power saving modes.

With improved stability and enhanced power efficiency, PV230-M242 is the ideal storage or cache solution for a variety of applications, including computing, automation, manufacturing and transportation.

製品仕様

製品名

PV230-M242
接続インターフェース

PCIe Gen3 x2
コネクタ

Single-sided: M.2 2242-B-M
Double-sided: M.2 2242-B-M
形状

M.2 2242
NANDフラッシュタイプ

3D TLC
容量

120GB-960GB
外付けDRAM

No
シーケンシャルリード(MB/s)

Up to 1865
シーケンシャルライト(MB/s)

Up to 1680
ECC訂正能力

Low-Density Parity-Check (LDPC) Code
IOPS (4Kランダム書き込み)

325K
標準動作温度(°C )

0 ~ 70
拡張動作温度(°C )

-40 ~ 85
保存温度(°C)

-55 ~ 100
ハウシング

No
サーマルセンサー

Yes
耐衝撃性

Operation: Acceleration, 50(G)/11(ms)/half sine (Compliant with MIL-STD-202G)
Non-operation: Acceleration, 1500(G)/0.5(ms)/half sine (Compliant with MIL-STD-883K)
耐振動性

Operation:7.69 GRMS, 20~2000 Hz/random (Compliant with MIL-STD-810G)
Non-operation:4.02 GRMS, 15~2000 Hz/random (Compliant with MIL-STD-810G)
動作電圧

3.3V ±5%
消費電力

Active Mode: 1,045 mA / Idle Mode: 130mA
寸法 (長さ×幅×高さ)

Single-sided: 22.00 x 42.00 x 2.58 (max.)
Double-sided: 22.00 x 42.00 x 4.08 (max.)
MTBF (時間)

>3,000,000
