M.2

SV240-M280

M.2

SV240-M280

  • Low-Density Parity-Check (LDPC) Code
  • Global Wear-leveling
  • Flash bad-block management
  • Flash Translation Layer: Page Mapping
  • S.M.A.R.T.
  • DataDefender™
  • ATA Secure Erase
  • Device Sleep
  • TRIM
  • Hyper Cache Technology
  • Over-provisioning
  • SATA Power Management
  • DataRAID™
  • SMART Read Refresh™

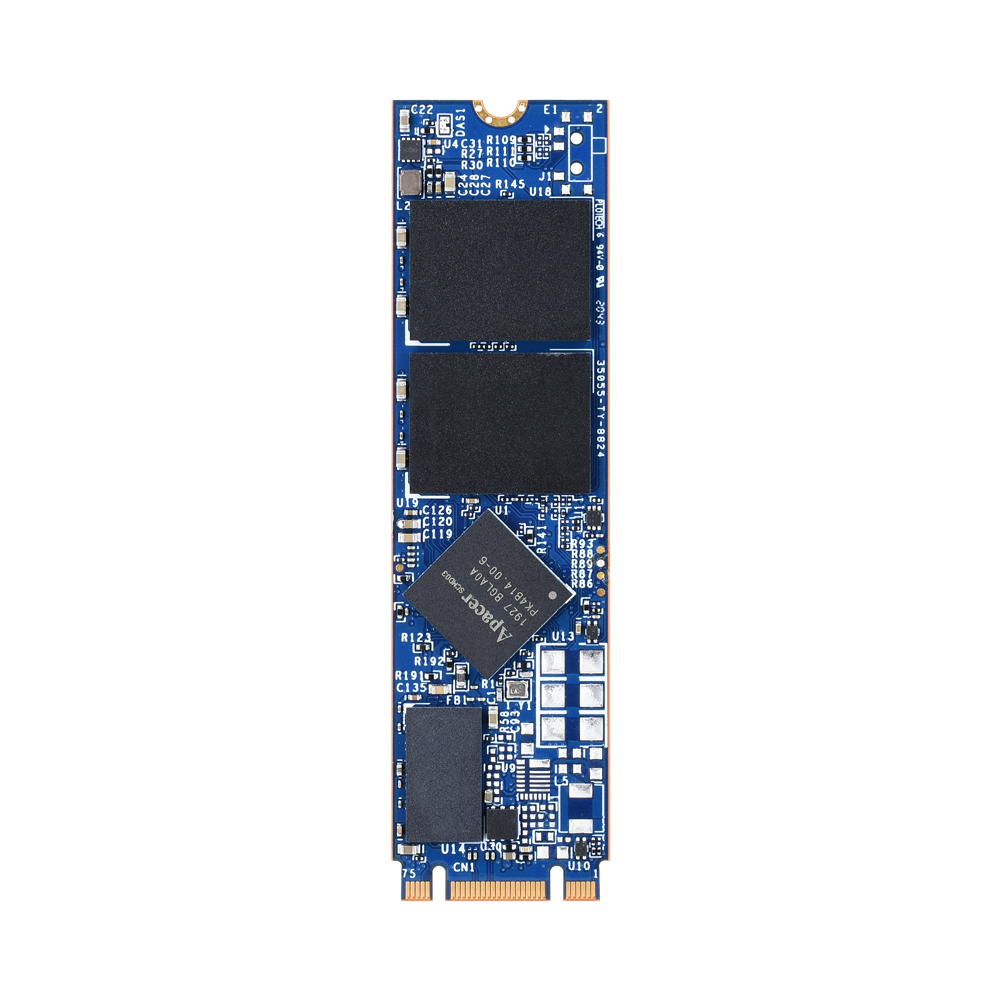

Apacer SV240-M280 is the next generation Solid State Drive (SSD) with compact size and exceptional performance. Designed with a SATA 6 Gb/s interface, SV240-M280 fully complies with the latest SATA Revision 3.2 specifications, delivering remarkable read/write speeds. Its random performance is further enhanced by the integration of DRAM in the internal controller, establishing it as the leading add-in storage solution for future host computing systems.


Utilizing 3D NAND technology for capacities up to 1920GB, SV240-M280 offers greater power efficiency than 2D NAND. It is equipped with a powerful SATA controller that supports on-the-module ECC and an efficient wear-leveling scheme. The LDPC (Low Density Parity Check) ECC engine extends SSD endurance and increases data reliability. Additionally, SV240-M280 features a built-in thermal sensor that monitors the temperature of the SSD via S.M.A.R.T commands to prevent overheating. To ensure reliable performance under high vibration and extreme environmental changes, Apacer incorporates Sidefill technology to enhance product durability against thermal and mechanical stress. For highly intensive applications, End-to-End Data Protection ensures data integrity at multiple points in the path, enabling reliable data transfers.


In terms of security, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal (optional) safeguard data, providing users with confidence that their data is protected against unauthorized access. SV240-M280 also includes numerous advanced features such as flash block management, page mapping, ATA secure erase, DataDefender, TRIM, device sleep, Hyper Cache technology, over-provisioning, power-saving modes, DataRAID, and SMART Read Refresh.

製品仕様
  • 製品名
    SV240-M280
  • 接続インターフェース
    SATA 3.2 (6Gb/s)
  • コネクタ
    M.2 B & M key
  • 形状
    M.2 2280-D5-B-M
  • NANDフラッシュタイプ
    3D TLC
  • 容量
    120GB~1920GB
  • 外付けDRAM
    Yes
  • シーケンシャルリード(MB/s)
    Up to 560
  • シーケンシャルライト(MB/s)
    Up to 505
  • ECC訂正能力
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4Kランダム書き込み)
    76K
  • 標準動作温度(°C )
    0 ~ + 70
  • 拡張動作温度(°C )
    -40 ~ + 85
  • 保存温度(°C)
    -55 ~ + 100
  • サーマルセンサー
    Yes
  • 耐衝撃性
    Operation: 50G/11ms
    (compliant with MIL-STD-202G)
    Non-operation: 1500G/0.5ms
    (compliant with MIL-STD-883K)
  • 耐振動性
    Operation:7.69 Grms, 20~2000 Hz/random
    (compliant with MIL-STD-810G)
    Non-operation: 4.02Grms, 15~2000 Hz/sine
    (compliant with MIL-STD-810G)
  • 動作電圧
    3.3 V ± 5%
  • 消費電力
    Active Mode: 640 mA / Idle Mode: 85 mA
  • 寸法 (長さ×幅×高さ)
    80.00 x 22.00 x 3.88, unit: mm
  • MTBF (時間)
    >3,000,000
