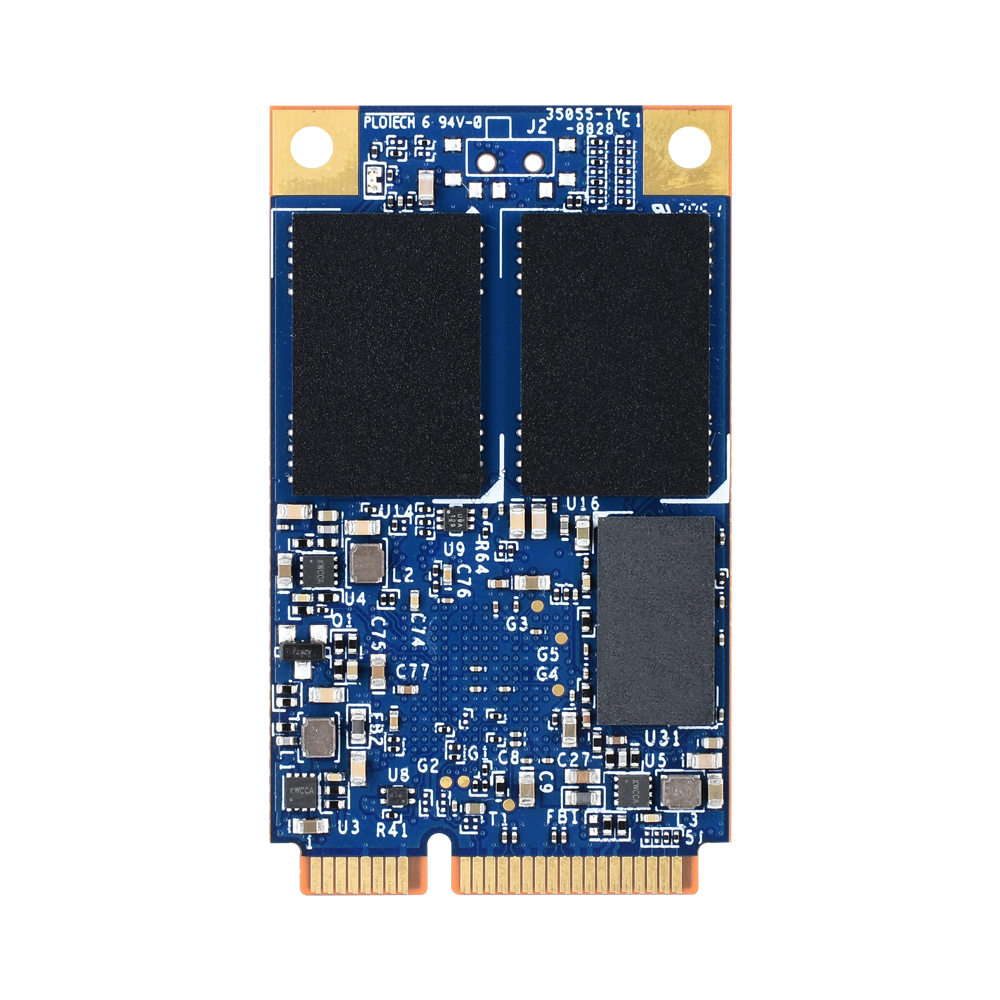

mSATA (MO-300)

SV240-300

mSATA (MO-300)

SV240-300

  • Low-Density Parity-Check (LDPC) Code
  • Global Wear-leveling
  • Flash bad-block management
  • Flash Translation Layer: Page Mapping
  • S.M.A.R.T.
  • DataDefender™
  • ATA Secure Erase
  • Device Sleep
  • TRIM
  • Hyper Cache Technology
  • Over-provisioning
  • SATA Power Management
  • DataRAID™
  • SMART Read Refresh™

Apacer's SV240-300 is a well-balanced solid-state drive (SSD) with a standard form factor and exceptional performance. Designed with a SATA 6 Gb/s interface, SV240-300 fully complies with the latest SATA Revision 3.2 specifications, delivering outstanding read/write speeds. Its random performance is further enhanced by integrating DRAM into the internal controller, making it an ideal companion for heavy-loading industrial or server operations.


Utilizing 3D NAND technology for capacities up to 1920GB, SV240-300 offers greater power efficiency than 2D NAND. It features a powerful SATA controller supporting on-the-module ECC and an efficient wear-leveling scheme, and is equipped with an LDPC (Low Density Parity Check) ECC engine to extend SSD endurance and enhance data reliability. Additionally, SV240-300 includes a built-in thermal sensor that monitors the SSD temperature via S.M.A.R.T commands to prevent overheating. Operating under a 6 Gb/s interface, SV240-300 incorporates Apacer's latest S.M.A.R.T technology, primarily oriented for the newest SATA interface SSDs, for drive lifetime monitoring and analysis. For highly intensive applications, End-to-End Data Protection ensures data integrity across multiple points in the path, enabling reliable data transfers.


In terms of security, Advanced Encryption Standard (AES) and Trusted Computing Group (TCG) Opal (optional) safeguard data, providing users with peace of mind that their data is protected against unauthorized access. SV240-300 also includes numerous advanced features such as flash block management, page mapping, ATA secure erase, DataDefender, TRIM, device sleep, Hyper Cache technology, over-provisioning, power-saving modes, DataRAID, and SMART Read Refresh.

製品仕様
  • 製品名
    SV240-300
  • 接続インターフェース
    SATA 3.2 (6Gb/s)
  • コネクタ
    52 pin male
  • 形状
    JEDEC MO-300
  • NANDフラッシュタイプ
    3D TLC
  • 容量
    120GB~1920GB
  • 外付けDRAM
    Yes
  • シーケンシャルリード(MB/s)
    Up to 560
  • シーケンシャルライト(MB/s)
    Up to 505
  • ECC訂正能力
    Low-Density Parity-Check (LDPC) Code
  • IOPS (4Kランダム書き込み)
    77K
  • 標準動作温度(°C )
    0 ~ + 70
  • 拡張動作温度(°C )
    -40 ~ + 85
  • 保存温度(°C)
    -55 ~ 100
  • サーマルセンサー
    Yes
  • 耐衝撃性
    Operating: Acceleration, 50(G)/11(ms)/half sine
    (compliant with MIL-STD-202G)
    Non-operating: Acceleration, 1500(G)/0.5(ms)/half sine
    (compliant with MIL-STD-883K)
  • 耐振動性
    Operation: 7.69 Grms, 20~2000 Hz/random
    (compliant with MIL-STD-810G)
    Non-operation: 4.02 Grms, 15~2000 Hz/random
    (compliant with MIL-STD-810G)
  • 動作電圧
    3.3 V ± 5%
  • 消費電力
    Active Mode: 670 mA / Idle Mode: 85 mA
  • 寸法 (長さ×幅×高さ)
    50.80 x 29.85 x 4.85 mm
  • MTBF (時間)
    >3,000,000
