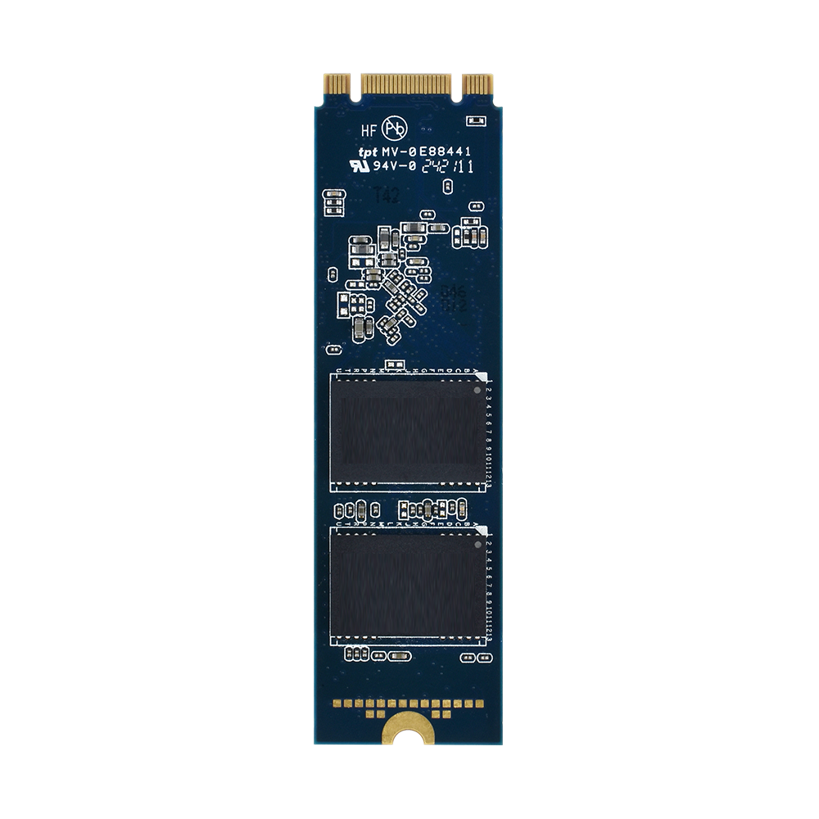

SM170-M280
SM170-M280
- Low-Density Parity-Check (LDPC) Code
- Bad Block Management
- Global Wear Leveling
- Power Failure Management
- ATA Secure Erase
- Flash Translation Layer: Page Mapping
- TRIM
- Hyper Cache Technology
- SMART Read Refresh™
- S.M.A.R.T. and SSD Widget
Well-balanced Solution with Outstanding Performance and Reliability ─ Explore More on SM170-M280
Searching for a storage solution which makes great balance bewteen performance and reliability? Apacer’s SM170-M280 is what you need, designed to meet the growing demands of today’s server and networking application. Built with full compliance to SATA 6 Gb/s interface, delivering exceptional read and write speeds that keep your systems running at better efficiency. These features make it the perfect choice for demanding industrial or server operations with heavy workloads.
With Apacer’s storage solutions, you’ll experience:
- Superior Power Efficiency: 3D NAND Technology offers better performance than 2D NAND.
- Outstanding Data Transmission: on-the-module ECC provides extraordinary data transfer performance.
- Ensure Reliability: S.M.A.R.T.: Provide proactive SSD health management.
Equipped with advanced technologies support:
- LDPC (Low Density Parity Check) ECC Engine: Enhance SSD endurance and data reliability.
- Global Wear-leveling Technology: Ensure having lower erase counts to extend SSD lifespan.
- Flash Bad-block Management: Manage cell blocks that fail over time.
- End-to-End Data Protection: Protect sensitive data with comprehensive security.
- Others: ATA Secure Erase, TRIM, Page Mapping, Hyper Cache Technology, and Smart Read Refresh.
With its exceptional performance and reliability, SM170-M280 is an ideal storage or cache solution for a variety of application, including server and networking.
-
製品名SM170-M280
-
接続インターフェースSATA III
-
コネクタM.2 B & M Key
-
形状M.2 2280-D5-B-M
-
NANDフラッシュタイプ2D MLC
-
容量32GB~512GB
-
外付けDRAMNo
-
シーケンシャルリード(MB/s)Up to 550
-
シーケンシャルライト(MB/s)Up to 480
-
ECC訂正能力Low-Density Parity-Check (LDPC) Code
-
IOPS (4Kランダム書き込み)70K
-
標準動作温度(°C )0 ~ 70
-
拡張動作温度(°C )-40 ~ 85
-
保存温度(°C)-55 ~ 100
-
耐衝撃性Operation: Acceleration, 50(G)/11(ms)/half sine
(Compliant with MIL-STD-202G)
Non-operation: Acceleration,1,500(G)/0.5(ms)/half sine
(Compliant with MIL-STD-883K) -
耐振動性Operation:7.69 Grms, 20~2000 Hz/random
(Compliant with MIL-STD-810G)
Non-operation:4.02 Grms, 15~2000 Hz/random
(Compliant with MIL-STD-810G) -
動作電圧3.3V ± 5%
-
消費電力Active mode (Max.): 810 mA / Idle mode: 100 mA
-
寸法 (長さ×幅×高さ)22.00 x 80.00 x 3.88(max.), unit: mm
-
MTBF (時間)>2,000,000
